Nortel Compact Ics 6.0 Installer Guide

System prgming / 231
P0992669 03Compact ICS 6.0 Installer Guide
Use line
Press CHANGE and enter the number of the line the I-RAD will use to send
an alarm code. The line cannot be a target line, a line that is private to a DN,
and you cannot use a line pool code.
Press
CLR to choose None.
Retry time
Press CHANGE and enter the length of time in minutes the I-RAD will wait
before trying the pre-programmed telephone number again. Enter a number
between 1 and 50.
Press
CLR to reset Retry time to the...

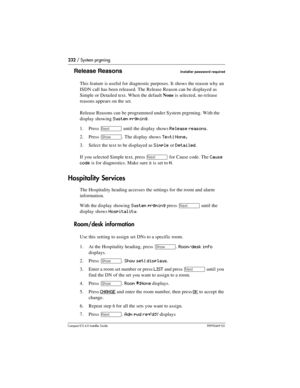

232 / System prgming
Compact ICS 6.0 Installer GuideP0992669 03
Release ReasonsInstaller password required
This feature is useful for diagnostic purposes. It shows the reason why an
ISDN call has been released. The Release Reason can be displayed as
Simple or Detailed text. When the default None is selected, no release
reasons appears on the set.
Release Reasons can be programmed under System prgrming. With the
display showing
System prgming.
1. Press
‘ until the display shows Release reasons.
2....

System prgming / 233
P0992669 03Compact ICS 6.0 Installer Guide
8. Press CHANGE and choose Y or N, depending on your security
requirements.
Call restrns
You can set up call restrictions based on room occupancy states. This
setting affects the Room occupancy feature.
1. At the Hospitality heading, press
≠ twice. Call restrns
displays.
2. Press
≠. Vacant:00 displays.
3. Press
CHANGE and enter the filter that defines the restrictions for your
hospitality system.
4. Repeat steps 2 and 3 for the other...

234 / System prgming
Compact ICS 6.0 Installer GuideP0992669 03
5. Press ≠. Minutes: 00 displays.
6. Press
CHANGE and enter the minutes (00 to 59).
Alarms
Use this feature to create the alarm settings that will govern the alarm
features for both the administrative and room sets.
1. At the Hospitality heading, press
≠ until Alarm displays.
2. Press
≠. Attn attempts:3 displays.
3. Press
CHANGE until you find the number you want (1-5).
4. Press
‘. Retry intrvl:4 displays.
5. Press
CHANGE until you...

ETSI: Network features (profile 2) / 235
P0992669 03Compact ICS 6.0 Installer Guide
ETSI: Network features (profile 2)
If you are using Profile 2 for your system, and your service provider
supports the features on your ETSI ISDN lines, you can configure  your
system to allow network diversion and/or Malicious Caller ID (MCID)
recording.
To program these features:
1. With the display showing
System prgming press ‘ until the
display shows
NetworkServices.
2. Press
≠.  ETSI displays.
3. Press
≠...

236 / ETSI: Network features  (profile 2)
Compact ICS 6.0 Installer GuideP0992669 03
Network Call Diversion
Norstar Network Call Diversion (NCD) is a network function that allows
forwarding and redirection of calls outside the Norstar network when using
an ETSI ISDN line. Functionality is similar to that of External Call
Forward (ECF).
NCD redirects calls using the same line on which they arrive. Call forward
is efficient since there is no need for additional outside lines.
Forwarding calls...

ETSI: Network features (profile 2) / 237
P0992669 03Compact ICS 6.0 Installer Guide
For example:
When a call comes in on ETSI ISDN and is returned to a destination
being serviced by ETSI ISDN, BTNR 191, Analogue or DASS2 lines,
then ETSI Call Forward (CFU, CFB or CFNR) is used.
When a call comes in on ETSI ISDN and is returned to a private
network destination over DPNSS, then External Call Forward (ECF)
is used.
When a call comes in on DPNSS 1 and is returned on any line type
except DPNSS 1, ECF...

238 / ETSI: Network features  (profile 2)
Compact ICS 6.0 Installer GuideP0992669 03
An extension with CFB, CFNA and CFAC programmed will give priority
to CFAC for diversion.
Selective Line Redirection
Selective Line Redirection (SLR), also referred to as Line
Redirection, is enhanced for use with digital lines and operates
in conjunction with NCD.
Diversion by SLR takes precedence over diversion by CFAC.
An SLR line cannot be diverted by CFAC. If the call arrives
on an extension with SLR...

ETSI: Network features (profile 2) / 239
P0992669 03Compact ICS 6.0 Installer Guide
Enhanced Caller ID
When a Norstar/BST extension which has Call Line Identifier
(CLID) active receives a redirected call due to NCD, the user
will see the DN for the Calling Number. This is followed by a
“>” and the redirecting number. This is displayed for as long
as the call is active (alerting or answered) at that telephone.
If the alerting extension is not the CLID extension for that line,
the line appearance can...

240 / Telco features
Compact ICS 6.0 Installer GuideP0992669 03
Telco features
VMsg centr tel#s
If you subscribe to a voice message service outside your office, you can
access it through your Norstar system. This setting specifies the external
telephone numbers that are dialed by the Message feature to retrieve voice
messages. Use
≠, ‘, CHANGE, and the dialpad to enter
the external number.
The default for each voice message center is No number.
Outgoing Name and Number Blocking
When activated, ²¡Úá...
