Nortel Compact Ics 6.1 Installer Guide

System prgming / 231
P0603539  02Compact ICS 6.1 Installer Guide
DISA DNInstaller password required
For calls answered with DISA, the system presents a stuttered dial tone to
prompt a caller to enter a valid password. The Class of Service (COS) that
applies to the call is determined by this COS password.
Once a remote user is on the Norstar system, the DISA DN can be used to
change the existing Class of Service. This gives you greater flexibility
when you create access privileges. For example, you...

232 / System prgming
Compact ICS 6.1 Installer GuideP0603539  02
Auto Attendant
Two of the settings for Auto Attendant, Auto Attend and CCR lines, are
programmed using an Installer or System Coordinator Plus password.
Auto Attend
This setting makes the Auto Attendant features (System Answer and
Custom Call Routing) available to the system. System Answer
automatically responds to unanswered calls at the attendant set and puts
them on hold until they can be retrieved. Custom Call Routing allows...

System prgming / 233
P0603539  02Compact ICS 6.1 Installer Guide
The Fax switch identifies one DN and does not support the unique
definition of a number of Fax devices. To support a collection of Fax
devices:
use the Forward on Busy setting on a set
use the Hunt group functionality to collect all fax devices under one
DN
CCR
Custom Call Routing (CCR) allows calls on certain lines to be directed to
a telephone or group of telephones according to a numbered menu heard by
the caller.
CCR lines
Press...

234 / System prgming
Compact ICS 6.1 Installer GuideP0603539  02
Note: The Compact ICS 6.1 standard software, I-RAD enabled,
AutoAttendant with programmable prompts configuration gives you the
capability to replace default Auto Attendant prompts with customized
prompts. See the Compact ICS 6.1 System Coordinator Guide for complete
information on programming Auto Attendant features.
Remote access
Remote access packages allow you to control the remote use of Norstar line
pools and the paging feature....

System prgming / 235
P0603539  02Compact ICS 6.1 Installer Guide
LinePool access
Press CHANGE to select the line pool access setting for each pool: N(No) or
Y(Yes).
Remote page
Press CHANGE to select the Remote page setting: N(No) or Y (Yes).
Remote admin
Press CHANGE to select the Remote administration setting: N(No) or Y
(Yes).
Remote monitor
Press CHANGE to select the Remote monitor setting: N(No) or Y (Yes).
Rem line access
Enter the number of the line which will be accessible by remote users....

236 / System prgming
Compact ICS 6.1 Installer GuideP0603539  02
Packages 02 - 15
Line pool access
N for Pools A to C
Remote Page,
administration &
monitoringNo
Tip - You can use COPY and the dialpad to copy
settings from one remote package to another.
The line pool access display shows an alphabetic line
pool identifier, followed by a numeric line pool access
code in brackets (for example,
PoolA (9):N). If no access
code has been identified, there is nothing between the
brackets (for example...

System prgming / 237
P0603539  02Compact ICS 6.1 Installer Guide
I-RAD
The internal remote access device (I-RAD) can be programmed to answer
an incoming call automatically. This allows you to set up remote
administration without the help of someone on site. The I-RAD is an
optional feature for some versions of the Compact ICS Feature Cartridge.
If the I-RAD is not available, it can be enabled using software keys
supplied by Nortel. See Software Keys on page 255 for more information.
Answer line...

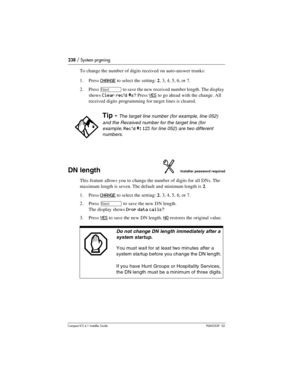

238 / System prgming
Compact ICS 6.1 Installer GuideP0603539  02
To change the number of digits received on auto-answer trunks:
1. Press
 CHANGE to select the setting: 2, 3, 4, 5, 6, or 7.
2. Press
‘ to save the new received number length. The display
shows
Clear rec’d #s? Press YES to go ahead with the change. All
received digits programming for target lines is cleared.
DN lengthInstaller password required
This feature allows you to change the number of digits for all DNs. The
maximum length is...

System prgming / 239
P0603539  02Compact ICS 6.1 Installer Guide
Data devices will drop calls.
Norstar data devices (not ISDN terminal
equipment) drop calls when the DN length is
changed. (These data devices use the B2
channel. Business Series Terminals and Norstar
telephones use the B1 channel. Calls are not
dropped for these telephones.) Norstar data
devices which use the B2 channel include the
PCI-B used for computer applications and
Norstar voice mail.
The DN length change is completed within...

240 / System prgming
Compact ICS 6.1 Installer GuideP0603539  02
Changing DN length from two digits
The following scenarios indicate some of the consequences of changing or
retaining the two-digit DN length.
1. A coldstart or upgrade to version 6.0 but retaining two-digit DNs
No Hunt groups or Hospitality Services
No Hunt group DNs
2. Change DN length from two digits to more than two using the Change
DN length feature in System Prgming and choosing Yes to the ‘Drop
all calls’ prompt
or
Change DN...
