NEC Neax2000 Ivs Command Manual

CHAPTER 3 ND-45669 (E)
Page 126 Addendum-002
Revision 2.2 JANUARY, 1999
CM1B
COMMAND CODE
TITLE:
ISDN TERMINAL MULTIPOINTS STATION NUMBER ASSIGNMENT
1B
4 . D ATA  TA B L E :
1. FUNCTION:
This command is used for an ISDN Terminal Multipoints Station Number.
2. PRECAUTION:
None
3. ASSIGNMENT PROCEDURE:
1ST  DATA 2ND DATA
RELATED
COMMAND
DATA MEANING DATA MEANING
XXXXX
ISDN Multipoints No. (0-7)
ISDN Circuit Station No.
X
XXXXISDN Terminal
Multipoints Station No.
X : 0-9, A(*), B(#)CMAC YY = 01
ISDN...

ND-45669 (E) CHAPTER 3
Pag e 1 27
Revision 2.0
CM1C
COMMAND CODE
TITLE:
PS STATION NUMBER ASSIGNMENT
1C
4. DATA TABLE:
1. FUNCTION:
This command is used to assign the PS Station Numbers for providing the Wireless Communication
System.
2. PRECAUTION:
None
3. ASSIGNMENT PROCEDURE:
: Initial Data
1 ST  DATA 2ND DATA
RELATED
COMMAND
DATA MEANING DATA MEANING
XXXX VIRTUAL PS No.
(0001 – 0255)X
XXXXPS Station No.
X : 0-9, A(*), B(#)CM1D
PS STATION No.
(1-4 digits) ST   + 1C +   DE   + VIRTUAL PS No.
(4...

CHAPTER 3 ND-45669 (E)
Page 128 Addendum-001
Revision 2.1 AUGUST, 1998
CM1D
COMMAND CODE
TITLE:
PS-ID ASSIGNMENT/PS OPERATION DATA DOWNLOAD
1D
4 . D ATA  TA B L E :
1. FUNCTION:
This command is used to assign the PS-ID and to download the PS Operation data.
2. PRECAUTION:
(1) When a PS is set up initially, set the PS in Data Download Mode by applying power to the PS while
pressing the SEND key, and then execute the CM1DYY=20 in Calling Area No. 00.
(2) It takes 10 seconds to load the PS operation data to...

ND-45669 (E) CHAPTER 3
Addendum-001 Page 129
AUGUST, 1998 Revision 2.1
CM20
COMMAND CODE
TITLE:
NUMBERING PLAN
20
MAT
1. FUNCTION:
Trunk routes and features are assigned access codes. Required developments (Route Advance, Tenant,
Kind of Calling Terminal and Closed Number data) and trunk routes or features are assigned access
codes with CM22, CM23, CM24 and CM26. The following figure shows the relationship between com-
mands:
2. PRECAUTION:
(1) This command is included in MAT mode menu “E7” (Numbering...

CHAPTER 3 ND-45669 (E)
Page 130 Addendum-002
Revision 2.2 JANUARY, 1999
CM20
COMMAND CODE
TITLE:
NUMBERING PLAN
20
MAT
4 . D ATA  TA B L E :
3. ASSIGNMENT PROCEDURE:
Y
ACCESS CODERELATED
COMMANDREMARKS
No. MEANING
0
1
2
3Numbering Plan Group 0
Numbering Plan Group 1
Numbering Plan Group 2
Numbering Plan Group 3X
XXXX: 0 - 9, A (*), B (#) CM29
ASSIGNMENT DATA
REMARKSRELATED
COMMAND
DATA MEANING
000
(OQS)Trunk Queueing-Outgoing (Set) CM15 YY = 02
CM35 YY = 28
001
(OQC)Trunk Queueing-Outgoing (Cancel)
002...

ND-45669 (E) CHAPTER 3
Pag e 1 31
Revision 2.0
CM20
COMMAND CODE TITLE:
[CM20] Numbering Plan
NUMBERING PLAN 20
MAT
008
(PRKS)Call Park-System (Set) For Single Line Station/
Multiline Terminal/
ATTCONCM15 YY = 96
009
(PRKR)Call Park-System (Retrieve)
010
(FDAE)Call Forwarding-All Calls (Entry) CM15 YY = 00, 26
011
(FDAC)Call Forwarding-All Calls (Cancel)
012
(FDNBE)Call Forwarding-No Answer/Busy Line (Entry) When there is No Answer
and the Busy Line shares
the same access code.  For
the different...

CHAPTER 3  ND-45669  (E)
C M 20
MAT
024

ND-45669 (E) CHAPTER 3
Pag e 1 33
Revision 2.0
CM20
COMMAND CODE TITLE:
[CM20] Numbering Plan
NUMBERING PLAN 20
MAT
047
(TASA)TAS Answer A CM15 YY = 53
CM53
048
(TASB)TAS Answer B
049
(TASC)TAS Answer C
050
(TASD)TAS Answer D
051
(TASE)TAS Answer E
058 Trunk Hold Code
059 Trunk Answer Code
062
(PRKT)Call Park-Tenant (Set/Retrieve) For single line station/
Multiline Terminal
064
(SPD)Station Speed Dialing (Origination) CM73, 74
CM15 YY = 07
065
(SPDE)Station Speed Dialing (Entry)
066
(SPDC)Station Speed...

CHAPTER 3 ND-45669 (E)
Pag e 1 34
Revision 2.0
CM20

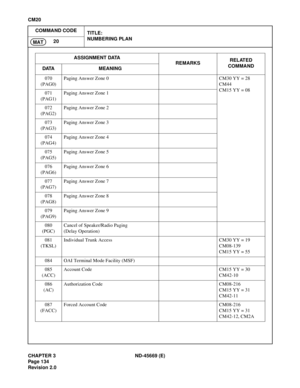

COMMAND CODE
TITLE:
NUMBERING PLAN
20
MAT
070
(PAG0)Paging Answer Zone 0 CM30 YY = 28
CM44
CM15 YY = 08
071
(PAG1)Paging Answer Zone 1
072
(PAG2)Paging Answer Zone 2
073
(PAG3)Paging Answer Zone 3
074
(PAG4)Paging Answer Zone 4
075
(PAG5)Paging Answer Zone 5
076
(PAG6)Paging Answer Zone 6
077
(PAG7)Paging Answer Zone 7
078
(PAG8)Paging Answer Zone 8
079
(PAG9)Paging Answer Zone 9
080
(PGC)Cancel of Speaker/Radio Paging
(Delay Operation)
081...

ND-45669 (E) CHAPTER 3
Pag e 1 35
Revision 2.0
CM20
COMMAND CODE TITLE:
[CM20] Numbering Plan
NUMBERING PLAN 20
MAT
088
(PRI0)Priority Call  0 These calls are routed to the
operator at the ATTCONCM90
CM15 YY = 17, 18
CM08-250, 251
089
(PRI1)Priority Call 1
090
(SPA0)Special Operator Call 0 CM90
091
(SPA1)Special Operator Call 1
092
(SPA2)Special Operator Call 2
093
(SPA3)Special Operator Call 3
094
(EMGC)Emergency Call
095
(IATT)Individual Attendant Access/Attendant
Inter Position...
