Sharp Mxm264n User Guide

2-53
COPIER
Contents
USING TWO MACHINES TO MAKE A LARGE
NUMBER OF COPIES (Tandem Copy)
This function requires the hard disk drive.
This function requires the hard disk expansion kit to be installed.
Two machines connected to the same network can be used to run a large copy job in parallel.
Each machine prints half of the copies, reducing the time required to complete the job.
Master machine and slave machine
In the following explanation, the master machine is the machine that is used to scan the...

2-54
COPIER
Contents
3
Set the number of copies (number of
sets) with the numeric keys.
Up to 999 copies (sets) can be set. When the [START] key is
pressed, the copies will automatically be divided between the
master and slave machines.
If an odd number of copies is set, the master machine will print
the extra set.
If an incorrect number of copies is set...
Press the [CLEAR] key ( ) and then enter the correct number.
4
Press the [START] key.
Copying will begin.
If you are using the document glass,...

2-55
COPIER
Contents
In this situation...
If a machine runs out of paper
If either the master machine or the slave machine run out of paper, the machine that ran out of paper will hold the job while
the machine that still has paper continues the job. When paper is added to the machine that ran out, the job resumes.
When user authentication is enabled
User authentication is enabled in the master machine: tandem copying is possible.
User authentication is enabled in the slave machine but not in the master...

2-56
COPIER
Contents
USING A DIFFERENT PAPER TYPE FOR
COVERS (Covers/Inserts)
This function requires the automatic document feeder.
A different type of paper can be inserted in positions corresponding to front and back covers of a copy job when the
automatic document feeder is used. A different type of paper can also be automatically added as an insert at specified
pages.
Example of adding covers
Example of adding covers/insertsExample of adding inserts
About the explanations of covers and
inserts...

2-57
COPIER
Contents
INSERTING COVERS IN COPIES (Cover Settings)
This function requires the automatic document feeder.
A different type of paper can be inserted at the positions corresponding to the front and back covers of a copy job.
This is useful for arranging documents in an attractive format and for using a different type of paper as a cover on an
estimate sheet or similar document.
Covers can be used in combination with inserts.
Copying on a front cover and inserting together with a back cover
1...

2-58
COPIER
Contents
4
Select cover settings.
(1) If the cover sheet will be copied on, touch
the [Yes] key. Otherwise, touch the [No]
key.
If the [No] key is touched, only cover insertion will be
performed.
In this case, go to step (3).
(2) To copy on one side of the cover, touch the
[1-Sided] key. To copy on both sides of the
cover, touch the [2-Sided] key.
(3) Select paper settings for the cover.
(A) The currently selected paper tray for the cover is
displayed.
(B) The size and type of paper in...

2-59
COPIER
Contents
6
Touch the [OK] key.
You will return to the base screen of copy mode.
You can touch the [Insertion Type A] key or the [Insertion Type
B] key to select insert settings.

INSERTING INSERT SHEETS IN COPIES (Insert
Settings) (page 2-60)
To check your settings, touch the [Page Layout] key.

CHANGING COVER/INSERT SETTINGS (Page Layout)
(page 2-64)
7
Press the [START] key.
Copying of the originals in the document feeder tray begins.
To cancel scanning and copying...
Press the [STOP] key...

2-60
COPIER
Contents
INSERTING INSERT SHEETS IN COPIES
(Insert Settings)
This function requires the automatic document feeder.
You can have different paper automatically inserted as inserts at specified pages of copies. Two types of paper can be
used as inserts, and the insertion positions can be specified separately for each.
Covers can be used in combination with inserts.
Example: Insert A after page 3 and insert B after page 5.
1
Insert the originals face up in the
document feeder tray.
Insert the...

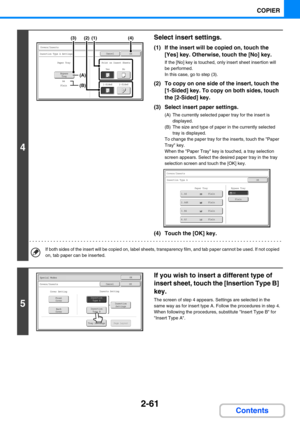

2-61
COPIER
Contents
4
Select insert settings.
(1) If the insert will be copied on, touch the
[Yes] key. Otherwise, touch the [No] key.
If the [No] key is touched, only insert sheet insertion will
be performed.
In this case, go to step (3).
(2) To copy on one side of the insert, touch the
[1-Sided] key. To copy on both sides, touch
the [2-Sided] key.
(3) Select insert paper settings.
(A) The currently selected paper tray for the insert is
displayed.
(B) The size and type of paper in the currently...

2-62
COPIER
Contents
6
Touch the [Insertion Settings] key.
7
Specify the pages where inserts A and B
will be inserted.
(1) Touch the [Insertion Type A] key or the
[Insertion Type B] key.
Specify the page where the highlighted insert will be
inserted.
(A) This shows the tray selected for insert type A and the
paper size and type.
(B) This shows the tray selected for insert type B and the
paper size and type.
When the [Insertion Type A] key is highlighted, the insert
sheet insertion settings are...
