NEC Neax 2400 Imx Installation Manual

NDA-24234 CHAPTER 4
Page 291
Revision 3.0
SYSTEM STARTUP
Procedure for Program Install consists of the following items.
Note:The control of 7-seg LED is the next page.(Case of program install and restart processing)
NAP-200-020
Sheet 1/6
Program Install and Load
ATTENTIONContents
Static Sensitive
Handling
Precautions Required
Generic Software 2 ~ 11
Internal MAT Software 1 - 2
TCP/IP Software 1 Install
Application
Software Install
HD Initial
Off-Line Star t Up
Refer to (a) Procedure for Off-Line Star...

CHAPTER 4 NDA-24234
Page 292
Revision 3.0
SYSTEM STARTUP
(a) Procedure for off-line start-up
NAP-200-020
Sheet 2/6
Program Install and Load
Status change of 7 Segment LED on the EMA card
ATTENTIONContents
Static Sensitive
Handling
Precautions Required
START
END
Set the SENSE switch
to “c” on the CPU Front Panel.
 Push the CPURST
  button on the CPU
  Front Panel.

              or

 Turn Power-SW ON.
Star tup
end (off-line mode)
for the system to be
initialized (CPU0, CPU1)

NDA-24234 CHAPTER 4
Page 293
Revision 3.0
SYSTEM STARTUP
(b) Procedure for HD Initial
NAP-200-020
Sheet 3/6
Program Install and Load
Status change of 7 Segment LED on the CPU Front
Panel.
Note:
ATTENTIONContents
Static Sensitive
Handling
Precautions Required
START
END
 HD Format
Set the SENSE switch for the
system to be initialized (CPU0,
CPU1) to “1” on the CPU Front
Panel.
Insert the FD Basic Generic
Disk 1 into the FDD.
Flip the MBR key on the CPU
Front Panel [OFF-ON-OFF].
Display end
SENS SW 7SEG...

CHAPTER 4 NDA-24234
Page 294
Revision 3.0
SYSTEM STARTUP
(c) Procedure for Generic Software (#2 ~ #11) Internal MAT Software (1 ~ 2), TCP/
IP Software (1) Install
NAP-200-020
Sheet 4/6
Program Install and Load
Status change of 7 Segment LED on the CPU Front
Panel.
WARNING:Removal or Make Busy of the HFD card is
not allowed while the Floppy Disk or Hard
Disk is being accessed.
ATTENTIONContents
Static Sensitive
Handling
Precautions Required
START
END* Repeat
Inser t the FD Basic Generic
Disk 2 into the...

NDA-24234 CHAPTER 4
Page 295
Revision 3.0
SYSTEM STARTUP
(d) Procedure for Application Software Install
NAP-200-020
Sheet 5/6
Program Install and Load
Status change of 7 Segment LED on the CPU Front
Panel.
WARNING:Removal or Make Busy of the HFD card is
not allowed while the Floppy Disk or Hard
Disk is being accessed.
ATTENTIONContents
Static Sensitive
Handling
Precautions Required
Inser t the FD “Application
Software into the FDD. START
END
Flip the MBR Key on the
CPU Front Panel
Set the SENSE...

CHAPTER 4 NDA-24234
Page 296
Revision 3.0
SYSTEM STARTUP
Procedure for  Program Load
This section describes system start-up procedure in which a program is loaded from the HD to the MEM
and the data memory is cleared.
NAP-200-020
Sheet 6/6
Program Install and Load
START
Program Load Set the SENSE switch to “1” (restart with data
memory clear) on the CPU Front Panel and press the
CPURST button.
The system is initialized when LOADING from the
HD to the MEM is completed.
Verify that the OPE lamp on the...

NDA-24234 CHAPTER 4
Page 297
Revision 3.0
SYSTEM STARTUP
NAP-200-021
Sheet 1/2
Assignment of Office Data
START
Start up the MAT
Enter  basic  data Assign the following data via the MAT per the office data
programming sheet.
“AT I M”: Assignment of Date and Time
“ASYD” (SYS 1, 2, & 3) /ASYDL (SYS 1 & 2):
System Data assignment
“AUNT”: Unit Data assignment
Save basic data Save the above data onto the hard disk (HD) using the
“MEM_HDD” Command.
Initialize Make sure that the SENSE switch on the CPU Front...

CHAPTER 4 NDA-24234
Page 298
Revision 3.0
SYSTEM STARTUP
NAP-200-021
Sheet 2/2
Assignment of Office Data
Save Office Data onto HD Save the Office Data onto the hard disk (HD) from the
MEM using the “MEM_HDD” command.
Save Office Data onto FD Save the Office Data onto a floppy disk (FD) from the
HD using the “HDD_MAT” command.
END
ATTENTIONContents
Static Sensitive
Handling
Precautions Required
A

NDA-24234 CHAPTER 4
Page 299
Revision 3.0
SYSTEM STARTUP
NAP-200-022
Sheet 1/5
Check of Lamp Indications and System
Messages
START
Check lamp indications on Line/
Trunk circuit cardsCheck lamp indications on each of the assigned Line/
Trunk circuit cards.
OPE lamp (G): ON
BL lamp (R): OFF
If the lamp indications are other than above, investigate
per Chapter 6: “FAULT RECOVERY DURING
TESTS.”
Check lamp indications on control
system circuit cardsThe OPE lamps (G) are shown in Figure 022-1 through...

CHAPTER 4 NDA-24234
Page 300
Revision 3.0
SYSTEM STARTUP

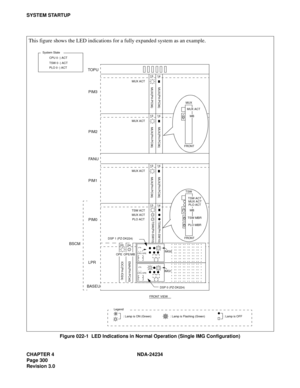

Figure 022-1  LED Indications in Normal Operation (Single IMG Configuration)
13 14
MUX ACT
MUX(PH-PC36) MUX(PH-PC36)
13 14
MUX ACT
MUX(PH-PC36) MUX(PH-PC36)
13 14
MUX ACT
MUX(PH-PC36) MUX(PH-PC36)
13 14
TSW ACT
MUX ACT
PLO ACT
TSW(PH-SW10) TSW(PH-SW10)
03 04
IOC(PH-IO24) EMA(PH-PC40)
OPE OPE/MB
TO P U
PIM3
PIM2
PIM1
PIM0
LPR
BASEUFA N U
BSCM
FRONT VIEW
: Lamp is ON (Green) : Lamp is OFF: Lamp is Flashing (Green) Legend CPU 0 -) ACT
TSW 0 -) ACT
PLO...
