NEC Neax2000 Ivs Command Manual

CHAPTER 3 ND-45669 (E)
Pag e 3 88
Revision 2.0
CMD001
COMMAND CODE
TITLE:
SYSTEM FEATURES (2)
D001
Note:Port 3 can only be connected to the printer for which the RTS signal from the PN-AP00 is not needed.
Table 3-3  Quick Reference Data Table for Printer
: Initial Data
1ST DATA
MEANING2ND
DATAMEANING
PORT 0 PORT 1 PORT 2 PORT 3
20 24 28 32 Data speed 2 1200 bps
21 25 28 33 ?Stop bit length 2 2 bits
22 26 30 34 Data length 0 7 bits
23 27 31 35 Parity 1 Even parity
80 100 120 140 Function 16/17 Hotel...

ND-45669 (E) CHAPTER 3
Pag e 3 89
Revision 2.0
CMD001
COMMAND CODE
TITLE:
SYSTEM FEATURES (2)
D001
Note:Port 3 cannot be used for the PMS (IMS format).
Table 3-4  Quick Reference Data Table for PMS (IMS Format)
: Initial Data
1ST DATA
MEANING2ND
DATAMEANING
PORT 0 PORT 1 PORT 2 PORT 3
20 24 28 – Data speed 2/3/4/5 1200/2400/
4800/9600 bps
21 25 29 – Stop bit length 0 /1/2 1/1.5/2 bits
22 26 30 – Data length 0 /1 7/8 bits
23 27 31 – Parity 0 /1/2 None Parity/Even
Parity/Odd Parity
80 100 120 – Function...

CHAPTER 3 ND-45669 (E)
Pag e 3 90
Revision 2.0
CMD001
COMMAND CODE
TITLE:
SYSTEM FEATURES (2)
D001
Note:Port 3 can only be connected to the VMS, which the RTS signal from the PN-AP00 is not needed.
Table 3-5  Quick Reference Data Table for VMS with MCI
: Initial Data
1ST DATA
MEANING2ND
DATAMEANING
PORT 0 PORT 1 PORT 2 PORT 3
20 24 28 32 Data speed 2/3/4/5 1200/2400/
4800/9600 bps
21 25 29 33 Stop bit length 0 /1/2 1/1.5/2 bits
22 26 30 34 Data length 0 /1 7/8 bits
23 27 31 35 Parity 0 /1/2/
3None...

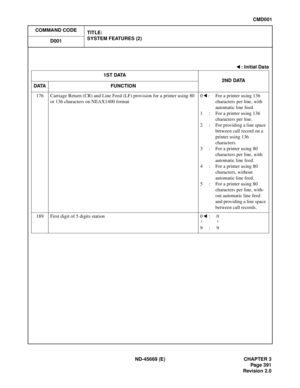

ND-45669 (E) CHAPTER 3
Pag e 3 91
Revision 2.0
CMD001
COMMAND CODE
TITLE:
SYSTEM FEATURES (2)
D001
: Initial Data
1ST DATA
2ND DATA
DATA FUNCTION
176 Carriage Return (CR) and Line Feed (LF) provision for a printer using 80
or 136 characters on NEAX1400 format0 : For a printer using 136
characters per line, with
automatic line feed.
1 : For a printer using 136
characters per line.
2 : For providing a line space
between call record on a
printer using 136
characters.
3 : For a printer using 80...

CHAPTER 3 ND-45669 (E)
Pag e 3 92
Revision 2.0
CMD001
COMMAND CODE
TITLE:
SYSTEM FEATURES (2)
D001
250 Function of OPE (No. 0-3) LED on the PN-AP00 card 0 : Indicates status of data
transmission on each port.
(See left column.)
1 Indicates status of signal
leads on No. 0 port. (See
left column.)
2 : Indicates status of signal
leads on No. 1 port. (See
left column.)
3 : Indicates status of signal
leads on No. 2 port. (See
left column.)
4:Not used
252 Output unit for Direct Data Entry
Note:This...

ND-45669 (E) CHAPTER 3
Pag e 3 93
Revision 2.0
CMD001
COMMAND CODE
TITLE:
SYSTEM FEATURES (2)
D001
253 Printout format of Direct Data Entry 0 : Printout format 1
1 : Printout format 2
(See left column)
• Printout format 1
• Printout format 2
Note:This data is valid when CMD016-XX24 is set to “1”, moreover
CMD001-252 is set to “1” or “2”.: Initial Data
1ST DATA
2ND DATA
DATA FUNCTION
1995 04/11 17:20 MON
NO. 220
CODE 1  1
CODE 2  2
CODE 3  2
CODE 4  1
1995 04/11 17:20 MON
NO. 220
CODE 1
QUANTITY 2
CODE 2...

CHAPTER 3 ND-45669 (E)
Pag e 3 94
Revision 2.0
CMD003
COMMAND CODE
TITLE:
TIME BLOCK ASSIGNMENT
D003
4. DATA TABLE:
1. FUNCTION:
This command is used to determine the Maximum number of Call Records for SMDR.
2. PRECAUTION:
None
3. ASSIGNMENT PROCEDURE:
: Initial Data
1ST DATA
2ND DATA
DATA FUNCTION
29 Maximum number of Call Record for SMDR 0 : No limitation
1:1 call
12000 : 12000 calls
STDE + D003 + ++DE
(1-5 digits)  2ND DATA
+ + EXE(2 digits)  1ST DATA
~
~
[CMD003] Time Block Assignment

ND-45669 (E) CHAPTER 3
Addendum-001 Page 395
AUGUST, 1998 Revision 2.1
CMD004
COMMAND CODE
TITLE:
OFFICE NUMBER ASSIGNMENT
D004
4. DATA TABLE:
Note:If using a leading digit(s) of 0 and 0 is required to print at the host terminal, enter “A” for each leading 0 to be
printed. If the leading digit(s) 0 is not required to print at the host terminal, enter “0”.
1. FUNCTION:
This command is used to assign the office number of the calling party and the office number of the bill-
ing office for centralized...

CHAPTER 3 ND-45669 (E)
Pag e 3 96
Revision 2.0
CMD012
COMMAND CODE
TITLE:
STATION GROUP NUMBER
D012
4. DATA TABLE:
Note:Assign Group Number 128 to stations in which a Group Number is not assigned.
1. FUNCTION:
By CMD012, a Group Number is to be assigned to each station for sending the tenant information (01-
63) to the SMDR Terminal.
2. PRECAUTION:
None
3. ASSIGNMENT PROCEDURE:
1ST DATA 2ND DATA REMARKS
X-XXXX : Station Number
(1-4 digits)
00-07 : ATTCON Number
(2 digits)XXX: Group Number
(001-063)
 +...

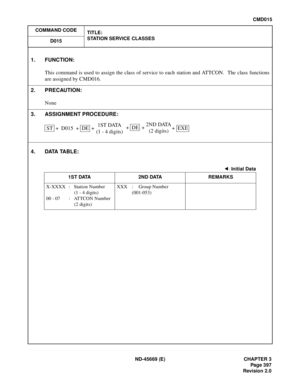

ND-45669 (E) CHAPTER 3
Pag e 3 97
Revision 2.0
CMD015
COMMAND CODE
TITLE:
STATION SERVICE CLASSES
D015
4. DATA TABLE:
1. FUNCTION:
This command is used to assign the class of service to each station and ATTCON.  The class functions
are assigned by CMD016.
2. PRECAUTION:
None
3. ASSIGNMENT PROCEDURE:
: Initial Data
1ST DATA 2ND DATA REMARKS
X-XXXX : Station Number
(1 - 4 digits)
00 - 07 : ATTCON Number
(2 digits)XXX : Group Number
(001-053)
ST  +  D015  +  DE  +1ST DATA
(1 - 4 digits)+  DE  +2ND DATA
(2...
