Mitel Sx-2000 Integrated Communications System Control Sheet Manual

SX-2000 SG ICS Commissioning
load and Test Plane B and Mate links
Loading and testing of Plane B and its associated mate links on the SX-2000 SG
system is performed as described in the following chart.

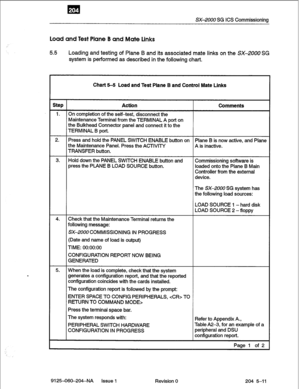

Chart 54 Load and Test Plane B and Control Mate Links
Maintenance Terminal from the TERMINAL A port on
ector panel and connect it to the
press the PLANE B LOAD SOURCE button.
following message: The SX-2000 SG system has
the following load sources:
LOAD SOURCE 1 -hard disk
LOAD SOURCE 2 -flo...

Commissioning
Chart 5-5 Load and Test Plane B and Control Mate Links
(continued)
Step Action Comments
6. Enable long-form printing of messages by issuing the See Appendix A., Table A2-8, for
EPRINTL command at Maintenance Terminal when the
 prompt appears. an example of the EPRINTL
command output.
7. Test Plane B Control Cards by issuing the following
commands:
STEST
ETEST 1-25
TEST Suppress all previous testing.
Enable testing of slots 1 - 25.
Test cards in enabled slots.
a. If errors...

SX-2000 SG ICS Commissioning
Maintenance Unit Commissioning
5.6 Commissioning of the maintenance unit is performed on the SX-2000 SG system as
described in the following chart,
Note: In the following procedure, the terms ‘unit’ and ‘panel’ are interchangeable.
Chart 5-6 SX-2000 SG Maintenance Unit Commissioning
Connector panel on the Control Cabinet. Enzire that
the printer is on-line and ready to print. should be set for:
- 8 data biis
Maintenance Unit commissioning software is loaded
from the...

Commissioning
Chart 5-6 SX-ZUOU SG Maintenance Unit Commissioning
(continued)
Step
Action Comments
4. Enter the following command: Refer to Appendix A., Table A2-6,
for an example of the SHOW
SHOW PANEL PANEL display.
Check that the Maintenance Terminal displays the
status of the Maintenance Unit.
5.
Enter the following command:
SHOW PANEL N (Where N is the desired
maintenance unit number)
Check that the Maintenance Terminal displays the
status of the Maintenance Unit specified.
6. Switch...

6
’ SX-2000FD ICS
COMMISSIONING
Install Circuit Cards
Non-Redundant Control Node
6.1
Ensure that the Main Control cards and Fiber Interface Modules are installed in the
correct card slots before loading the commissioning software. Chart 6-1 describes
the card installation procedure for the Non-redundant Control Node of the SX-2ooo FD
system. The procedure for a Redundant Control Node is shown in the next chart,
Chart 6-2.
Chart 6-l Install Circuit Cards in the SX-2UOU FD ICS Non-Redundant...

Commissioning
Redundant Control Node
Ensure that the Main Control cards and Fiber interface Modules are installed in the
correct card slots before loading the commissioning software.
Chart 6-2 describes the
card installation procedure for the Redundant Control Node.
Chart 6-2 Install Circuit Cards in the SX-2000 FD ICS Redundant Control Node
Step Action Comments
1. Ensure the following cards are installed in the Control Refer to Figure 6-l.
Node:
l Plane A Main Controller II Card: Shelf 1, Slot...

r
m IA
SX-2000 FD ICS Commissioning
Peripheral Nodes
Ensure that the Peripheral Control cards, Peripheral Interface cards, and one Fiber
Interface Module are installed in the correct card slots in each Peripheral Node before
loading the commissioning software. Chart S--S describes the card installation
procedure for the Peripheral Node.
Chart 63 Install Circuit Cards in the SX-2000 FD ICS Peripheral Nodes
. Fiber Interface Module: Shelf 1, Slot 17
l Peripheral Resource Card: Shelf 2, Slot 17...

Commissioning
DSU Nodes
Ensure that the Peripheral Resource cards, Digital Service Unit (DSU) cards, and Fiber
Interface Module(s) are installed in the correct card slots in each DSU Node before
loading the commissioning software. Chart 6-4 describes the card installation
procedure for the DSU Nodes,
Chart &4 Install Circuit Cards in the SX-2000 FD ICS Peripheral Nodes
Step Action Comments
1. Ensure that the following cards are installed in the first Refer to Figure 6-2.
DSU Node:
Leave all...

m IA
SX-2000 FD ICS Commissioning
SLOT
SLOT
SLOT
SLOT SHELF 1
I r-------. NON-REDUNDANT CONTROL NODE
SHELF2
1
2 3 4
-----________ SLOT
SHELF3
SHELF2 SHELF 1
,-_____-_________
_I , - - - - - - - _I ,_ _ _ _ _
I
1 I
’ I
ooco
1
2 3 4
oo[ll
5 6 7 6
mlFl REWNDANT CONTROL NODE

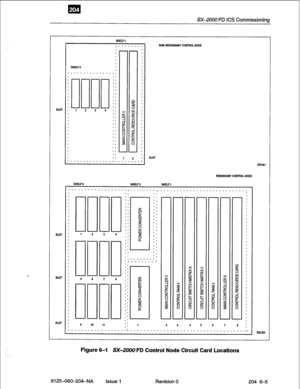

Figure 6-l SX-2000 FD Control Node Circuit Card Locations
9125-060-204-NA
Issue 1 Revision 0 204 6-5

Commissioning
SHELF2 SHELF 1 SHELF2
I 1
Bm.37
I I
SHELF1
____-____---______--____________________--------------,
Figure G2 SX-2000 FD Peripheral and DSU Node Circuit Card Locations
204 6-6
Revision 0 9125-060-204-NA issue 1
