Computer Input
PC System Menu
PC System Menu
Computer System Selection
This	projector	automatically	tunes	to	various	types	of	computers	based	on	VGA,	SVGA,	XGA,	SXGA,	WXGA,
or	UXGA	with	its	Multi-scan	system	and	 Auto	PC	Adjustment.	If	a	computer	is	selected	as	a	signal	source,	this
projector	automatically	detects	the	signal	format	and	tunes	to	project	a	proper	image	without	any	additional
settings.	(Signal	formats	provided	in	this	projector	are	shown	on	pages	73-74)
One	of	the	following	messages...

3

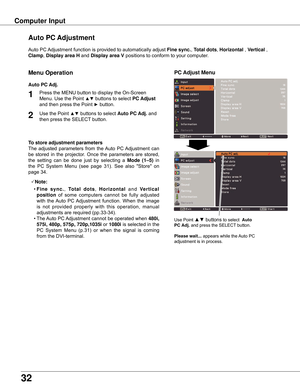

Computer Input
Auto	PC	Adjustment	function	is	provided	to	automatically	adjust	 Fine sync .,	Total dots,	Horizontal  ,	Vertical	,
Clamp,	Display area H  and	Display area V positions	to	conform	to	your	computer.
Use	Point	▲▼	buttons	to	select		Auto
PC Adj . 	and	press	the	SELECT 	button.
Please wait . . . 	appears	while	the	 Auto	PC
adjustment	is	in	process.
PC Adjust Menu
Auto PC Adjustment
To store adjustment parameters
The	 adjusted	 parameters	 from	the	Auto	 PC	Adjustment	 can
be	 stored...

33

Computer Input
PC Adjust Menu
Manual PC Adjustment
Some	computers 	employ 	special 	signal 	formats 	which 	may 	not 	be 	tuned 	by 	Multi-scan 	system 	of 	this 	projector.
Manual 	PC 	Adjustment 	enables 	you 	to 	precisely 	adjust 	several 	parameters 	to 	match 	those 	signal 	formats. 	The
projector	 has	five	independent	 memory	areas	to	store	 those	 parameters	 manually	adjusted.	 It	allows	 you	to	recall
the	setting	for	a	specific	computer.
1

Use	the	Point	◄►	buttons	to	adjust	the...

34

Vacant
This	mode	has	stored
parameters.
Store
To	store	 the	adjusted	 data,	select	Store	and	 then	 press	 the
SELECT 	button. 	Move 	the 	red 	arrow 	pointer 	to 	one 	of 	the
Modes	 1	to	 5	in	 which	 you	want	 to	store,	 and	then	 press	 the
SELECT 	button.
Mode free
To	clear	 the	stored	 data,	select	Mode  free 	and	 then	 press
the	 SELECT 	button.	 Move	the	highlight	 to	the	 mode	 that	you
want	to	clear	and	then	press	the	SELECT 	button.
Note:
	 •	Display  area  (H/V) cannot	be...

35

Computer Input
Image Select Menu
IMAGE button
Dynamic
Real
Image 1
Image 2
Image 3
Image Mode Selection
Image 4
Blackboard(Green)
Standard
Remote Control
IMAGE button
Select the desired image mode among Dynamic, Standard,
Real, Blackboard (Green), Colorboard, Image 1, Image 2,
Image 3 and Image 4 by pressing the IMAGE button on the
remote control.
Standard
Picture mode with improved halftone for graphics.
Real
Blackboard (Green)
Image 1–4
For the image projected on a blackboard.
This mode helps...

36

Computer Input
Use	the	Point	◄►
buttons	to	adjust	the
setting	value.
Image Adjust Menu
Selected	Image	mode
Image Adjustment
Reset
Press	the	MENU	button	to	display	the	On-Screen
Menu.	Use	the	Point
▲▼	buttons	to	select	Image
Adjust 	and	then	press	the	Point	►	or	SELECT 	button.
1
Use	the	Point	▲▼	buttons	select	the	desired	item
and	then	press	the	SELECT 	button	to	display	the
adjustment	dialog	box.	Use	the	Point
◄►	buttons	to
adjust	the	setting	value.
Note:
•	When	 white balance Red ,...

37

Computer Input
Store
This	projector	has	the	picture	screen	resize	function,	which
enables	you	to	customize	the	image	size.Screen Menu
Screen Size Adjustment
Provide	the	image	to	fit	the	screen	size.
Normal
True
Provide	the 	image 	in 	its 	original 	size. 	When 	the 	original
image	 size	is	larger	 than	the	screen	 size	(1024	 x	768),	 the
projector	 enters	to	the	 panning	 mode	automatically.	 Use	the
Point
▲▼◄►buttons	 to	pan	 the	image.	 When	adjusted,	 the
arrows	 will	turn	 red.	When...

38

Computer Input
Select	Digital zoom +.	The	On-Screen	Menu	disappears	and
D . zoom +	appears.	Press	the	SELECT	button	to	expand	the
image	size.	Use	the	Point	▲▼◄►	buttons	to	pan	the	image.
The	Panning	function	can	work	only	when	the	image	is	larger
than	the	screen	size.
A	 projected	 image	 can	 be	 also	 expanded	 by	 pressing	 the
D.ZOOM	▲	button	on	the	remote	control.
To	exit	the	Digital	zoom	+/–	mode,	press	any	button	except
the	D.ZOOM	▲▼	buttons,	SELECT	and	Point	buttons.
Digital zoom +...

39

Choose	Video	 or	S-video	 by	 pressing	 the	 INPUT	 button	 on
the	top	control	or	the	VIDEO	button	on	the	remote	control.
Before	 using	 these	 buttons,	 correct	 input	 source	 should	 be
selected	through	menu	operation	as	described	below.
1

Video
Input Menu
Input Source Selection (Video, S-video)
Video Input
Direct Operation
Menu Operation
When	 video	 input	 signal	 is	 connected	 to	 the
VIDEO	jack,	select	Video.Video
When	 video	 input	 signal	 is	 connected	 to	 the	 S-
VIDEO	jack,...

40

Video Input
Choose	Computer  1(Component) or	Computer  1(Scart)	 by	 pressing	 the	 INPUT	 button	 on	 the	 top	 control	 or
press	the	COMPUTER	button	on	the	remote	control.
Before	 using	 these	 buttons,	 correct	 input	 source	 should	 be	 selected	 through	 Menu	 operation	 as	 described
below.
1
Input Menu
Use	the	Point	▲▼	buttons	to	select	Computer 1	and
then	press	the	Point	►	button.
Input Source Selection (Component, RGB Scart 1-pin)
When	the	input	source	is	coming	from	video...
