Sanyo Plc Xu355 Projector User Manual

21

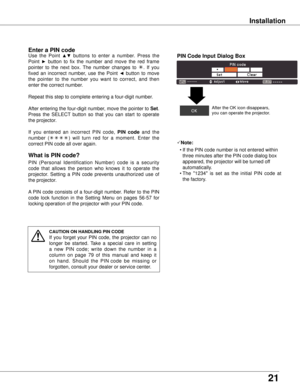

What is PIN code?
PIN  (Personal  Identification  Number)  code  is  a  security
code  that  allows  the  person  who  knows  it  to  operate  the
projector.  Setting  a  PIN  code  prevents  unauthorized  use  of
the projector.
A PIN code consists of a four-digit number. Refer to the PIN
code  lock  function  in  the  Setting  Menu  on  pages  56-57  for
locking operation of the projector with your PIN code.
Enter a PIN code
Use  the  Point ▲▼  buttons  to  enter  a  number.  Press  the
Point...

22

TO MAINTAIN THE LIFE OF THE LAMP, ONCE
YOU TURN THE PROJECTOR ON, WAIT AT
LEAST FIVE MINUTES BEFORE TURNING IT
OFF.
Power off? disappears after 4 seconds.
Turning Off the Projector
Press the ON/STAND-BY button on the top control or
on the remote control, and Power off? appears on the
screen.
Press the ON/STAND-BY button again to turn off the
projector. The POWER indicator starts to blink red, and
the cooling fans keep running (You can select the level
of fans’ quietness and speed. See...

3

Basic Operation
How to Operate the On-Screen Menu
The	projector	can	be	adjusted	or	set	via	the	On-Screen
Menu.	The	menus	have	a	hierarchical	structure,	with
a	main	menu	that	is	divided	into	submenus,	which	are
further	divided	into	other	submenus.	For	each	adjustment
and	setting	procedure,	refer	to	respective	sections	in	this
manual.
Use	the	Point	▲▼	buttons	to	highlight	or	select	a
main	menu	item.	Press	the	Point	►or	SELECT	button
to	access	the	submenu	items.	(The	selected	item	is...

4

Menu Bar
For	detailed	functions	of	each	menu,	see	“Menu	Tree”	on	pages	70-71.
Basic Operation








Main	MenuSub-Menu


	 Image	select
	For	computer	source,	used	to	select	an	image	mode	among	Dynamic ,	Standard ,	Real,	Blackboard(Green) ,	Colorboard
and image 1 - 4	(p.35).
						For	Video	source,	used	to	select	an	image	mode	among
Dynamic ,	Standard ,	Cinema,	Blackboard(Green)  ,	Colorboard
and
Image 1- 4 	(p.42).

Image	adjust
	 For	computer	source,	used	to	adjust	computer...

5

Basic Operation
Rotate	the	Zoom	Ring	to	zoom	in	and	out.
Rotate	the	Focus	Ring	to	adjust	the	focus	of	the	image.
Zoom and Focus Adjustment
If	 a	 projected	 picture	 still	 has	 keystone	 distortion	 after
pressing	 the	 AUTO	 SETUP/CANCEL	 button	 on	 the	 top
control	 or	 the	 AUTO	 SET/CANCEL	 button	 on	 the	 remote
control,	correct	the	image	manually	as	follows:
Press	 the	 KEYSTONE	 button	 on	 the	 remote	 control.	 The
Keystone	 dialog	 box	 appears.	 Use	 the	 Point	▲▼	 buttons...

6

Sound Adjustment
1

Press	the	MENU	button	to	display	the	On-Screen	Menu.
Use	 the	 Point	▲▼	 buttons	 to	 select	Sound.	 Press	 the
SELECT	button	to	access	the	submenu	items.
Press	 the	 VOLUME+/–	 buttons	 on	 the	 top	 control	 or	 on	 the
remote	 control	 to	 adjust	 the	 volume.	The	 volume	 dialog	 box
appears	on	the	screen	for	a	few	seconds.
Press	 the	 MUTE	 button	 on	 the	 remote	 control	 to	 select	On
to	 temporarily	 turn	 off	 the	 sound.	 To	 turn	 the	 sound	 back
on,...

27

Basic OperationBasic Operation
Remote Control Operation
Using the remote control for some frequently used operations is advisabl\
e. Just pressing one of the buttons
enables you to make the desired operation quickly without calling up the\
 On-Screen Menu.
Press the COMPUTER, VIDEO or NETWORK button on
the remote control to select the input source. See pages29-
30,39-40 for details.
Refer to the owner’s manual “Network Set-up and
Operation” for details about the network input....

8

Basic Operation
black	out	→	the	captured	image	→	normal	→	•	•	•	•	•
Press	 the	 NO	 SHOW	 button	 on	 the	 remote	 control	 to	 black	 out
the	 image.	 To	 restore	 to	 normal,	 press	 the	 NO	 SHOW	 button
again	 or	 press	 any	 other	 button.	 When	 a	 projected	 image	 is
captured	 and	 set	 as	User	 in	 the	 Logo	 selection	 (see	 page	 49),
the	screen	changes	each	time	you	press	the	NO	SHOW	button
as	follows.
NO SHOw button
Press	 the	 P-TIMER	 button	 on	 the	 remote	 control.	 The...

9

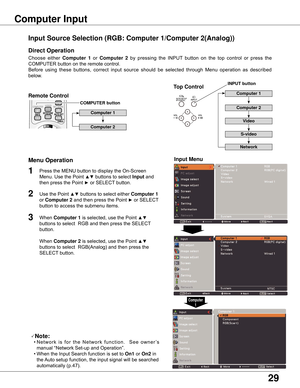

Choose	 either	Computer  1 or	Computer   by	 pressing	 the	 INPUT	 button	 on	 the	 top	 control	 or	 press	 the
COMPUTER	button	on	the	remote	control.
Before	 using	 these	 buttons,	 correct	 input	 source	 should	 be	 selected	 through	 Menu	 operation	 as	 described
below.
1
Input Menu

3
Input Source Selection (RGB: Computer 1/Computer (Analog))
Computer Input
COMPUTER button
Note:
	 •	N e t w o r k	 i s	 f o r	 t h e	 N e t w o r k	 f u n c t i o n .	 	 S e e	 o w n e r...

30

Computer Input
Choose	Computer   by	 pressing	 the	 INPUT	 button	 on	 the	 top	 control	 or	 press	 the	 COMPUTER	 button	 on	 the
remote	control.
Before	using	these	buttons,	correct	input	source	should	be	selected	through	Menu	operation	as	described
below.
Input Source Selection (RGB(PC digital), RGB(AV HDCP))
Direct Operation
Menu Operation
Note:
	•	HDCP	 (High-bandwidth	 Digital	 Content	 Protection)	 is
a	 system	 for	 protecting	 digital	 entertainment	 content
delivered	 by	 DVI...
