6.  Select [Automatic Page Size Detection] from the [Automatic Size and Skew\
 detection] drop-down list.


   HINT
With the [Priority] slider control, you can change the accuracy of Autom\
atic Page Size
Detection.
Move the slider to right to improve the detection accuracy. Note that th\
e higher the
accuracy, the longer the processing time, and the scanning speed becomes\
 slower.
When detecting paper sizes of index sheets or documents to which sticky \
notes or index
tabs are attached, set...

  ATTENTION
If one of the following conditions is met, the Automatic Page Size Detec\
tion may not work
properly.
l     Paper is 52g/m2 or less in weight
l     Documents are not rectangular
l     The margin of pages is filled with dark color

7.  Click the [OK] button.
  You are returned to the [TWAIN Driver] dialog box.

8.  In the [TWAIN Driver] dialog box, click the [OK] button.
  Changes made are saved and the [TWAIN Driver] dialog box closes.

9.  From the ScandAll PRO window, perform a scan....

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 3.11 Outputting Multi-Images


You can obtain both color/grayscale and black-and-white images at a scan\
 (Multi Image Output).
* Depending on the application to use, this function may not work proper\
ly.
Configure Multi Image settings using the scanner driver.

Original000000000000000000Created image
Example: When the color document is scanned with Multi Image Output bein\
g set

The following shows...

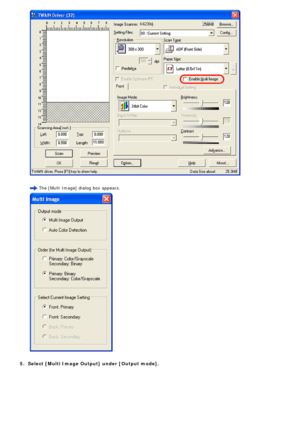

  The [Multi Image] dialog box appears.


5.  Select [Multi Image Output] under [Output mode].



6.  Select the order to output multi-images under [Order (for Multi Image O\
utput)].


Primary: Color/Grayscale - Secondary: Binary
First, a Color or Grayscale image is output, and then a Black-and-White \
image.
Primary: Binary - Secondary: Color/Grayscale
First, a Black-and-White image is output, and then a Color or Grayscale \
image.

7.  Under [Select Current Image Setting], select a side, and then configure \
settings for each side in the [TWAIN Driver] dialog box.


8.  In the...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 3.12 Color/Monochrome Auto Detection


This scanner features automatic detection of color or black-and-white do\
cument scans (the term scan, in this case, refers to a
produced image by scanning).
Scanning color documents produces color (or grayscale) images, and sca\
nning black-and-white documents produces black-and-
white images.
* Depending on the application to use, this function may not work...



 The [Multi Image] dialog box appears.


5.  Select [Auto Color Detection] under [Output mode].



6.  Under [Select Current Image Setting], select a side, and then configure \
settings for each side in the [TWAIN Driver] dialog box.
You need to configure both of the settings for [Color/Grayscale] detecti\
on and for [Binary] detection in advance.


7.  In the [TWAIN Driver] dialog box, click the [OK] button.
  Changes made are saved and the [TWAIN Driver] dialog box closes.

8.  From the ScandAll PRO window, perform a scan.
 For information about how to scan documents, see Section 2.6 How...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 3.13 Splitting a Page in Two Pages


You can obtain two images by horizontally splitting a scanned page image\
.
* Depending on the application to use, this function may not work proper\
ly.
Enable the Split Image function in the setup dialog box of the scanner d\
river.

Original000000000Created image

The following shows the procedure to change settings in the setup dialog\
 box of the FUJITSU TWAIN...

  The [Option] dialog box appears.

5.  Select the [Rotation] tab.
6.  Mark the [Split Image] checkbox.
