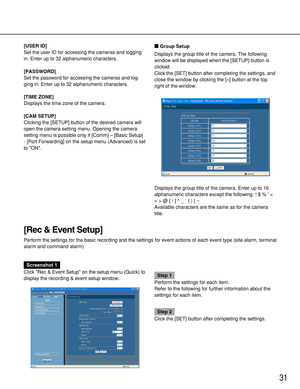

31
[USER ID]
Set the user ID for accessing the cameras and logging
in. Enter up to 32 alphanumeric characters.
[PASSWORD]
Set the password for accessing the cameras and log-
ging in. Enter up to 32 alphanumeric characters.
[TIME ZONE]
Displays the time zone of the camera.
[CAM SETUP]
Clicking the [SETUP] button of the desired camera will
open the camera setting menu. Opening the camera
setting menu is possible only if [Comm] – [Basic Setup]
- [Port Forwarding] on the setup menu (Advanced) is set
to...

32
Setup items
REC Type
Select QUICK or ADVANCED for validation of the recording settings.
QUICK:The recording settings set on the setup menu (Quick) will be validated when recording.
ADVANCED:The recording settings set on the setup menu (Advanced) will be validated when recording.
It is possible to check if the set recording rate and transmission rate are available for the network in use by clicking
the [Measurement] button. It will take around 90 seconds to check. In the process of measurement,...

33
Important
•When the result value is beyond the maximum network speed of the unit, the following may occur due to the
heavy network traffic:
•Some images to be recorded may not be done.
•Some live images to be displayed may not be done.
•Some alarms to be issued may not be done.
•Operational response may become slow.
•The main unit may restart.
•Even when the result value is below the network speed (50 Mbps as indication), the above problems may occur
depending on number of the connected cameras and...

34
LIVE VIDEO
Set the transmission rate of live images from cameras.
The following are available for the transmission rate.
OFF/0.1 ips/0.2 ips/0.3 ips/0.5 ips/1 ips/2 ips/3 ips/
5 ips/10 ips/15 ips
Manual REC Operation
Perform the recording rate for manual recording.
The following are available for Recording Rate.
OFF/0.1 ips/0.2 ips/0.3 ips/0.5 ips/1 ips/2 ips/3 ips/
5 ips/10 ips/15 ips
EVENT REC
Set the recording rate, recording duration and the event
action mode when an event (site alarm, terminal...

35
Perform the Settings for Network [Network Setup]
Basic settings for a network connection can be performed with this menu.
Screenshot 1
Click the Network Setup on the setup menu (Quick).
The Network Setup window will be displayed.
Step 1
Perform the settings for each item.
Refer to the following for further information about the
settings for each item.
Step 2
Click the [SET] button after completing the settings.
Setup items
NW Link down detection
Select ON or OFF to enable or disable the network
line...

36
Port Setup
Perform the settings for the following items for each
port.
[DHCP]
Select ON or OFF to determine whether or not to use
the DHCP server.
Select ON to obtain an IP address, a subnet mask and
a gateway address from the DHCP server. Set to OFF
when entering the addresses above manually.
ON:Uses the DHCP server.
OFF:Does not use the DHCP server.
[IP Address]
When OFF is selected for DHCP, enter an IP
address. For this unit, enter 4 units from the decimal
numbers (0-254).
[Subnet Mask]
Enter a...

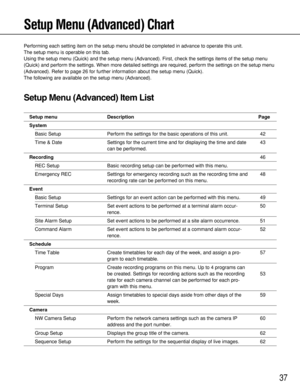

37
Setup Menu (Advanced) Chart
Performing each setting item on the setup menu should be completed in advance to operate this unit.
The setup menu is operable on this tab.
Using the setup menu (Quick) and the setup menu (Advanced). First, check the settings items of the setup menu
(Quick) and perform the settings. When more detailed settings are required, perform the settings on the setup menu
(Advanced). Refer to page 26 for further information about the setup menu (Quick).
The following are available on...

38
Setup menu Description Page
Comm
Basic Setup Settings for a network can be performed. Settings for a network
connection such as settings of the IP address and gateway
address can be performed.
DNS Setup Basic network DNS settings can be performed with this menu.
Settings relating to the DNS settings such as the domain name
can be performed.
DDNS Setup Basic network DDNS settings can be performed with this menu.
Determine to enable or disable DDNS, or perform the settings of
the registered user IDs....

39
Setup menu Description Page
Maintenance
Product Information Versions of the software, the hardware (this unit) , MAC address,
temperature inside the unit and software version of the connect-
ed extension unit will be displayed.
Disk Information Hard disk information such as available capacity of the built-in
hard disk or an extension unit will be displayed.
Partition Information Available disk space size of the normal area, the event area, the
copy area and the pre-recording areas will be displayed....

40
Basic Operation with the Setup Menu (Advanced)
Screenshot 1
Start operation from the top page.
Step 1
Click the [Setup] tab.
Screenshot 2
The setup menu (Advanced) will be displayed.
Step 2
Click the desired setup menu (Advanced).
Note:
When QUICK is selected for REC Type of Rec &
Event Setup (page 32) the setup menu (Quick) will
be displayed by clicking the [Setup] tab. In this case,
it is possible to display the setup menu (Advanced)
by clicking Advanced Setup Menu.
