Page 81

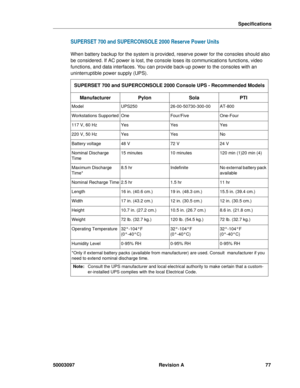

Specifications 50003097 Revision A 77 SUPERSET 700 and SUPERCONSOLE 2000 Reserve Power Units When battery backup for the system is provided, reserve power for the consoles should also be considered. If AC power is lost, the console loses its communications functions, video functions, and data interfaces. You can provide back-up power to the consoles with an uninterruptible power supply (UPS). SUPERSET 700 and SUPERCONSOLE 2000 Console UPS - Recommended Models ManufacturerPylonSolaPTI...
Page 82
SX-2000 General Information Guide 78 Revision A 50003097 Traffic and Performance Attendant Console Requirements CriteriaResult Busy Hour Call Completions (BHCC)*9.44 per second 33970 per hour Both Way Traffic Per StationAt 1200 ONS/OPS lines and 12% analog trunking with analog signaling, the following should not be exceeded: Call/Hr 25.28 Erlang 0.81 CCS 29 Response Time SpecificationDelay to Dial Tone1 s Dial Tone Cut Off Delay500 ms Post-Dialing Delay1.5 s Data Blocking PossibilitiesSoftware
Page 83
Specifications 50003097 Revision A 79 SUPERSET 7000 Attendant Console Performance For optimum performance of the SUPERSET 7000 attendant console, observe the following configuration guidelines for each DNI line card: Limit traffic to less than 500 calls per hour Add a maximum of eight additional display sets per line Add up to four non-display sets Configure no data or other type of console. Tone Plan Support The system supports tone plans for the following countries: China Germany Hong...
Page 84
SX-2000 General Information Guide 80 Revision A 50003097
Page 85
50003097 Revision A 81 Capacity Levels, Software Configurations, and Dimensions The dimensions and feature allocations determine the “size” of the system in terms of its ability to support peripheral devices and features. The capacity levels, software configurations, and dimensions are divided into the following classes: MITEL Feature Resource Dimensions (MFRDs) MSDN/DPNSS Network Resource Dimensions (MNRDs) MITEL Traffic Capacity Levels (MTCLs) Application Capacity Levels - MITEL HCI...
Page 86

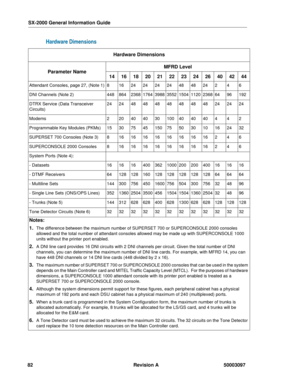

SX-2000 General Information Guide 82 Revision A 50003097 Hardware Dimensions Hardware Dimensions Parameter NameMFRD Level 141618202122232426404244 Attendant Consoles, page 27, (Note 1)81624242424484824246 DNI Channels (Note 2)44886423681764398835521504112023686496192 DTRX Service (Data Transceiver Circuits)242448484848484848242424 Modems220404030100404040442 Programmable Key Modules (PKMs)1530754515075503010162432 SUPERSET 700 Consoles (Note 3)81616161616161616246 SUPERCONSOLE 2000...
Page 87
Capacity Levels, Software Configurations, and Dimensions 50003097 Revision A 83 Feature Dimensions Feature Dimensions Feature NameMFRD Level 1416 18 20 21 22 23 2426404244 Attendant Console Groups12 24 48 363636606048121212 Attendant Console Calls Waiting264872727272999972999999 Broadcast Groups360750187511263200187512507501875240360480 Busy Lamp Groups (Monitored Devices)71184438462365338275211438284259 Call Reroute Always20 64 176 210120150150176176323232 Call Reroute 1st...
Page 88
SX-2000 General Information Guide 84 Revision A 50003097 Route Lists128128128128128128128128128128128128 Speed Call Digit String (avg. 12 digits)5002500250035005002500250015002500420420420 Suite Services - Single124415815987514565502415815162448 Suite Services - Linked411382713291711881671382715816 SUPERSET Callback Messages per System (see Note 4)9620050020011005005002005006496144 System Account Codes16 16 24 242424302424161616 System Digit Strings (Note...
Page 89
Capacity Levels, Software Configurations, and Dimensions 50003097 Revision A 85 Other Parameters The parameters described below are also features that are provided with each MFRD package; however, the resource limitations for these features are not MFRD dependant (i.e. the maximum resource values remain consistent across all MFRDs). Consoles Per Attendant Console Group - The maximum number of attendants in each attendant console group is 15. Sets per Broadcast Group - The maximum number of telephones...
Page 90
SX-2000 General Information Guide 86 Revision A 50003097 Intercept Numbers - Intercept numbers (maximum of 32) are used to control what happens to a call when the call cannot be completed to the required destinations. A call may be routed to a tone or to a directory number. Two alternate destinations may be programmed for each condition. Interconnect Numbers - Each peripheral device is assigned an interconnect number (maximum of 64) which is used to bar the connection of one device and another. The...
