Mitel Sx 200 El/ml Technicians Handbook

Programming
141
Programming
228Manual Line (Dial 0 Hotline)
229COV/DNIC Voice Mail Port
230Message Register Overflow Alarm
231Message Waiting Setup - Bell
232Message Waiting Setup - Lamp
233Never a Consultee
234Never a Forwardee
235Originate Only
236Outgoing Trunk Callback
237Outgoing Trunk Camp-On
238Override Security
239Priority Dial 0
240Line Privacy
241Receive Only
242Repeated Camp-On Beep
243Non-Busy Extension
244Room Status Applies
245Abbreviated Dialing Access
246SMDR - Extended Record
247SMDR -...

Technician’s Handbook
142
260Internal / External Split Call Forwarding
261ONS Voice Mail Port
262Ignore Forward Busy with Free Appearance
263Delay Ring Timer (2 - 6 Rings)
264Half Fwd NA timer for DID call with VM msg on
265Voice Mail System Speed Dial Index (0-255)
266Camp-on before Forward on Busy
267Softkey Support for Voicemail
268Record a Call in Voicemail
269Record a Call: Start Recording Automatically
270Record a Call: Start Recording on Hangup
271Privacy Released at Start of Call
272Guest Suite...

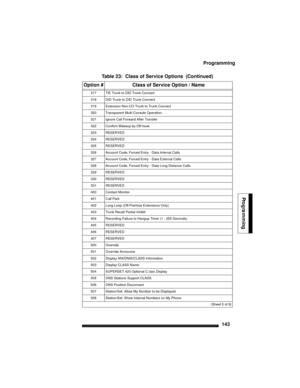

Programming
143
Programming
317TIE Trunk to DID Trunk Connect
318DID Trunk to DID Trunk Connect
319Extension Non-CO Trunk to Trunk Connect
320Transparent Multi-Console Operation
321Ignore Call Forward After Transfer
322Confirm Wakeup by Off-hook
323RESERVED
324RESERVED
325RESERVED
326Account Code, Forced Entry - Data Internal Calls
327Account Code, Forced Entry - Data External Calls
328Account Code, Forced Entry - Data Long Distance Calls
329RESERVED
330RESERVED
331RESERVED
400Contact Monitor
401Call...

Technician’s Handbook
144
509Display Caller ID for Non-Prime Lines
600SUPERSET Tel. - Auto-Answer
601SUPERSET Tel. - Auto-Hold Disable
602SUPERSET Tel. - Background Music
603SUPERSET Tel. - Disconnect Alarm
604PBX SUPERSET Tel. - Automatic Outgoing Line
605SUPERSET Tel. - Message Program
606SUPERSET Tel. - Enhanced Answering Position
607SUPERSET Tel. - Associated Modem Line
608SUPERSET Tel. - Room Status Display
609SUPERSET Tel. - Night Service Switching
610SUPERSET Tel. - Guest Room Template (0 - 3)...

Programming
145
Programming
684Can Make All Set Page
685Can Receive All Set Page
686Group Page Includes Overhead Paging
687All Set Page Includes Overhead Paging
700SMDR - Does Not Apply
701No Dial Tone
702SMDR - Overwrite Buffer
703Message Register Applies
704Incoming / Internal Modem Pooling Access
705Automatic Overflow From Attendant
706RESERVED
707RESERVED
708RESERVED
709Follow External Call Forward
710RESERVED
800ANI Applies
801Incoming Trunk Call Rotary
802Limited Wait for Dial Tone
803SMDR - Drop...

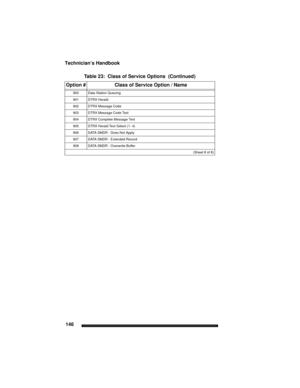

Technician’s Handbook
146
900Data Station Queuing
901DTRX Herald
902DTRX Message Code
903DTRX Message Code Text
904DTRX Complete Message Text
905DTRX Herald Text Select (1- 4)
906DATA SMDR - Does Not Apply
907DATA SMDR - Extended Record
908DATA SMDR - Overwrite Buffer
Table 23:  Class of Service Options  (Continued)
Option #Class of Service Option / Name
 (Sheet 8 of 8)

Programming
147
Programming
System Options and Timers
(CDE Form 04)
The following table lists system options and timers for LIGHTWARE 19
Release 2.0 software. Earlier software versions will not include all these
options.
Table 24:  LIGHTWARE 19 Release 2.0 System Options and Timers
Option #System Option / System Timer Name
01Clock Format (example 16:00, 4:00, 4:00 a)
02Message Lamp Test Enable
03Single Paging Amplifier
04Message Waiting and Message Register Clear Print
05Verified Account Codes...

Technician’s Handbook
148
23Message Register Count Additional Supervisions
24Message Register Audit
25Message Register Zero After Audit
26No Overlap Outpulsing
27Room Status Audit
28SMDR Indicate Long Call
29Telephone Last Number Redial
31Satellite PBX
32Outgoing Call Restriction
33Room Status
34Auto Room Status Conversion / Auto Wake-up Print
35DSS/BLF Call Pickup
36End Of Dial Character (#)
37Calibrated Flash
38Switch-Hook Flash
39DATA SMDR Indicate Long Calls
40Message Register Follows Talker
42ACD...

Programming
149
Programming
51Final Ring Time-out (1 - 30 Minutes)
52Minimum Flash Timer (20 - 50 ms; in 10 ms increments)
53Maximum Flash Timer (20 - 150 ms; in 10 ms incr)
54DISA Answer Timer (1 - 8 Seconds)
55Account Code Length (Variable or 4 - 12 Digits)
56Auto Room Status Conversion / Wakeup Print Timer
57Vacant / Reserved Room Default Call Restriction
58Occupied Room Default Call Restriction
59Receivers Reserved for Non-Auto-Attendant Use
60Tone Plan
Changing this value will cause a system reset...

Technician’s Handbook
150
80MyAdministrator Access
84Multiple Guest Suite Phones
85Speak@Ease Integration
86PRI Card: Q.SIG
87Record a Call
88Max TAPI desktops (0...50 in increments of 5)
89CLASS Functionality for ONS Sets
90ACD Real Time Event
91PRI Card: NFAS
92PRI Card: D-Channel Backup
93PRI Card: Remote LAN Access
94PRI Card: Min/Max
95PRI Card: Auto Min/Max
96Number of Links (0-8)
97Support Softkey Access to Voicemail
98Support 3DN and 4DN Set Types
99Fax Tone Detection
100MITEL Options Password...
