Mitel Sx 200 El/ml Technicians Handbook

Troubleshooting and Repair
91
Troubleshooting
Disk Drive Maintenance
SX-200 LIGHT/DIGITAL Floppy Disk Subsystem
Troubleshooting Procedures
Table 13 outlines the most likely causes of Floppy Disk Subsystem
failure.
Table 13:  Floppy Disk Troubleshooting Summary
Step Possible Malfunction Source
1.Drive units require resets - power down the control bay (Bay 2 or Bay
0), and power up again. Check for error codes on the Main Control
Card numeric display - see Table 14.
2.
Faulty backplane connections....

Technician’s Handbook
92
NOTE: 1.Be aware of the difference between the code “E” and the code “E.”. “E” indi-
cates MCC error and “E.” indicates disk drive errors.
2.If system is restarted at this point, the pending logs will be lost.
Table 14:  Floppy Disk Drive Error Code Summary
Error
CodeLikely Cause(s)
E.
1Original system diskette has been replaced, and logs are pending.
Either re-insert original diskette, or restart system. See Note 2.
E.
2Original system diskette has been replaced. Either...

Troubleshooting and Repair
93
Troubleshooting

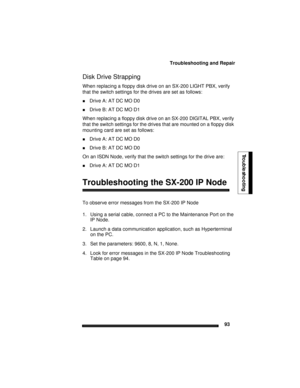

Disk Drive Strapping
When replacing a floppy disk drive on an SX-200 LIGHT PBX, verify
that the switch settings for the drives are set as follows:

Drive A: AT DC MO D0

Drive B: AT DC MO D1
When replacing a floppy disk drive on an SX-200 DIGITAL PBX, verify
that the switch settings for the drives that are mounted on a floppy disk
mounting card are set as follows:

Drive A: AT DC MO D0

Drive B: AT DC MO D0
On an ISDN Node, verify that the switch settings...

Technician’s Handbook
94
Error Messages
Table 15:  SX-200 IP Node Troubleshooting Table
Indication Possible Causes Action
WARNING: SX200
Main control not
connected or IP Node
not supportedDefective Ethernet
cablesReplace the Ethernet
Crossover cable and
CIM cable.
The Control Triple CIM
card is programmed as
a Dual CIM card.Reprogram the Triple
CIM Card.
The CIM cable is
connected to the
wrong port on the
SX-200 IP NodeCheck the hardware
connections.
The IP Bay is not
programmed in CDE...

Troubleshooting and Repair
95
Troubleshooting
WARNING: Startup
incomplete after 1800The DHCP server is
not functioning
properly.1. If youre not using a
Mitel DHCP server,
disconnect all DHCP
servers
OR
Disconnect the IP
Node from the subnet.
2. In the serial port
window on the PC,
type
RetrieveDhcpDefaults.
3. Type Reboot.
4. Connect the BCC III
Card to the Ethernet
Switch with an
Ethernet crossover
cable.
5. Connect the IP
Node to the Ethernet
Switch.
6. Allow the IP Node to
reboot.
If...

Technician’s Handbook
96
Test Line
The test line is on the ONS line card at Bay 1, Slot 1, Circuit 1 for the
SX-200 EL/ML or Bay 2, Slot 1, Circuit 1 for the SX-200 LIGHT/
DIGITAL. An access code for Feature 18, Maintenance Function - Test
Line, must first be programmed in CDE Form 02 (Feature Access
Codes).
Specifying Equipment From Test Line
Circuits are specified using their physical location numbers (bay, slot,
circuit, subcircuit) or by Link and Channel number.
A receiver circuit at location...

Troubleshooting and Repair
97
Troubleshooting
Table 16:  Test Line Command Codes
NumericAlphaCommand Codes Description
22 BCBusy Out Channel (Remove Channel)
26 BOBusy Out device
35 DLDump Logs
38 DTDirect Trunk select
72 RCReturn Channel
73 SDStop Dump Logs
77 RSReturn Device to Service
78 STStop Test Printers
82 TCTest Channel
83 TDTest Device
872 TPBTest Printer Bay_Slot_Circuit
873 TPETest Printer Extension_Number
877 TPPTest Printer Port

Technician’s Handbook
98
Test Line Indicator LEDs
After the maintenance person enters a command sequence, the MCC
LEDs display the results as explained in the following table.
NOTE:Failure of any test line command sequence necessitates using more sophisti-
cated maintenance tools.
Table 17:  Test Line Status Indicator Codes
Code Meaning
PA The attempted operation was successful (pass).
FA The attempted operation was unsuccessful (fail).
(blank) System is waiting for command input.
II  Test was...

Troubleshooting and Repair
99
Troubleshooting
Test Line Tones
Approximately ten seconds after the maintenance person enters the
test line access code on the test line set, a short ring burst, followed by
dial tone is heard, indicating that the system is waiting for the command
input. After the maintenance person enters a command sequence, the
returned tone, described in Table 18, indicates the result of the action
performed.
Table 18:  Test Line Status Tones
Tone Type Meaning
Dial tone System is...

Technician’s Handbook
