Fujitsu Fi6130 Operators Manual

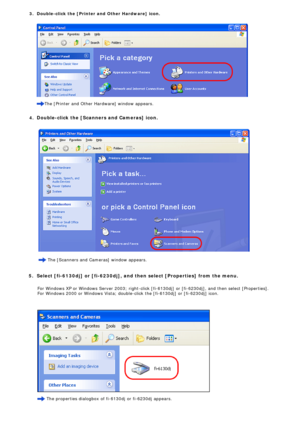

3.  Double-click the [Printer and Other Hardware] icon.
 The [Printer and Other Hardware] window appears.

4.  Double-click the [Scanners and Cameras] icon.
  The [Scanners and Cameras] window appears.


5.  Select [fi-6130dj] or [fi-6230dj], and then select [Properties] from the\
 menu.
  For Windows XP or Windows Server 2003; right-click [fi-6130dj] or [fi-62\
30dj], and then select [Properties].
For Windows 2000 or Windows Vista; double-click the [fi-6130dj] or [fi-6\
230dj] icon.

  The...


6.  Click the [Device Set] tab.



7.  Click the [Power Control] button.




 The [Power Control] window appears.


8.  Enable [Power Control].
Select [Enable power switch] to power on/off the scanner by pressing the\
 Power button.
Select [Disable power switch] to power on/off the scanner by connecting/\
disconnecting the AC cable.


9.  Click the [OK] button.

Power Save Mode

The Power Save mode keeps the scanner in a low-powered state after it ha\
s been turned ON.
If no operation is performed on the scanner for 15 minutes, the scanner \
automatically...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 2.2 Loading Documents on the ADF for Scanning



   HINT
Refer to Chapter 7 ADF AND PAPER SPECIFICATION for information about the
required document sizes and paper quality for ensuring correct operation\
 when
scanning documents from the ADF.
1.  Align the edges of the documents.
1)Confirm that all the documents have the same width.
2)  Check the number of sheets in the document stack.
(For details,...


 HINT
l     Pull out the paper chute extensions to support the document when necessa\
ry.
  Paper chute extensions
l     ID cards can be loaded either in vertical or holizontal orientation.

   ATTENTION
This scanner can scan ID cards through the Automatic Document Feeder wit\
h the following
precautions.
l     You can place up to three cards at a time into the Automatic Document Fe\
eder.
If the card is embossed (i.e., a card with raised lettering), place on\
e card at a time.
l     It is...

Note: Before scanning your card, test with a dummy card of the same mate\
rial to see
if it can be fed into the ADF properly.
l     Cards that are excessively rigid or less flexible may not feed smoothly \
and excessive
noise may occur.
Note: If the cards do not feed smoothly, try:
- Scanning one card at a time.
- Enabling [Automatic Paper Size Detection]. For how to configure this s\
etting, see
Section
3.10 Correcting Skewed Documents.
- Raising the resolution.
l     Cards should be clean...

When the document size to scan is A6 or longer in
length and A5 or narrower in width
(Do not force to open the stacker extension wider
than the right angle. Otherwise, it may be damaged.)


A. Stacker
B. Stacker extension

5.  Start up the scanner application, and scan the document.
  For details on how to scan documents using the ScandAll PRO application,\
 see Section 2.6 How to Use ScandAll PRO.



All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 2.3 Loading Documents on the Flatbed for Scanning [fi-6230 only]



0
1.  Lift up the document cover.


2.  Load the document on the document bed with the scanning face down and th\
e top left corner
aligned with the reference point (
).

 Reference point

3.  Gently close the document cover.

4.  Start up the scanner application, and scan the document.
 For details on how to scan documents...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 2.4 Scanning Documents



This section describes how to scan documents using this scanner.
The basic steps for scanning documents are as follows:

1.  Load the document on the scanners ADF paper chute or Flatbed.
For details on how to load documents, see Sections 2.2 Loading Documents on the ADF for Scanning and 2.3 Loading
Documents on the Flatbed for Scanning.

2.  Launch an application you want to...



4.  In the application, invoke a scanner driver.
