Samsung ML 2010 User Manual

SOLVING PROBLEMS5.18
Common Windows Problems
Note: Refer to Microsoft Windows 98, Me, 2000 or XP User’s Guide that came with your
PC for further information on Windows error messages.
Common Macintosh Problems
ProblemPossible Cause and Solution
“File in Use” message
appears during
installation.Exit all software applications. Remove all software from
the
StartUp Group, then restart Windows. Reinstall the
printer software.
“General Protection
Fa u l t ”,  “ E xc e p t i o n  O E ”,
“Spool32”, or...

SOLVING PROBLEMS5.19
5
Common Linux Problems
ProblemPossible Cause and Solution
I can’t change settings in
the configuration tool.You need to have administrator privileges to be able to
affect global settings.
I am using the KDE
desktop but the
configuration tool and
LLPR won’t start.Maybe you do not have the GTK libraries installed. These
usually come with most Linux distributions, but you may
have to install them manually. Refer to your distribution’s
installation manual for more details about...

SOLVING PROBLEMS5.20
The N-up setting does not
work correctly for some
of my documents.The N-up feature is achieved through post-processing of
the PostScript data that is being sent to the printing
system. However, such post-processing can only be
adequately achieved if the PostScript data conforms to the
Adobe Document Structing Conventions. Problems may
arise when using N-up and other features relying on post-
processing if the document being printed isn’t compliant.
I am using BSD lpr...

SOLVING PROBLEMS5.21
5
How do I specify the IP
address of my SMB
server?It can be specified in the “Add Printer” dialog of the
configuration tool, if you don’t use the CUPS printing
system. Unfortunately, CUPS currently doesn’t allow to
specify the IP address of SMB printers, so you will have to
be able to browse the resource with Samba in order to be
able to print.
Some documents come
out as white pages when
printing.Some versions of CUPS, especially those shipped with
Mandrake Linux before...

SOLVING PROBLEMS5.22
Downloaded From ManualsPrinter.com Manuals

6
This chapter includes:
• Printer Specifications
• Paper Specifications
Specifications
Downloaded From ManualsPrinter.com Manuals

SPECIFICATIONS6.2
Printer Specifications
ItemSpecifications and Description
Model Name ML-2010 (SP20MPU)
Print Speed
a
a. Print speed will be affected by Operating system used, computing performance, application soft-
ware, connecting method, media type, media size and job complexity.
Up to 20 ppm in A4 (22 ppm in Letter)
Resolution
1200 x 600 dpi
First Printing Time 10 seconds (from Ready)
Warmup Time 30 seconds
Power Rating AC 110 - 127 V (USA, Canada) /
220 - 240 V (Others), 50 / 60 Hz
Power...

SPECIFICATIONS6.3
6
Paper Specifications
Overview
Your printer accepts a variety of print materials, such as cut-
sheet paper (including up to 100% recycled fiber content
paper), envelopes, labels, transparencies and custom-size
paper. Properties, such as weight, composition, grain and
moisture content, are important factors affecting the printer’s
performance and the output quality. Paper that does not meet
the guidelines outlined in this User’s Guide can cause the
following problems:
• Poor print...

SPECIFICATIONS6.4

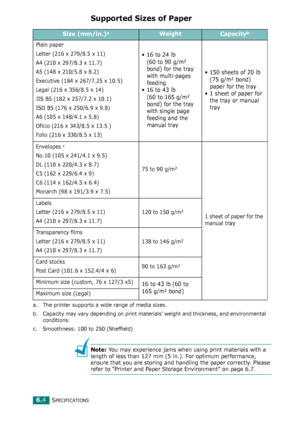

Supported Sizes of Paper
Note: You may experience jams when  using print materials with a
length of less than 127 mm (5  in.). For optimum performance,
ensure that you are storing and handling the paper correctly. Please
refer to “Printer and Paper Storage Environment” on page 6.7.
Size (mm/in.)aWeightCapacityb
Plain paper
Letter (216 x 279/8.5 x 11)
A4 (210 x 297/8.3 x 11.7)
A5 (148 x 210/5.8 x 8.2)
Executive (184 x 267/7.25 x 10.5)
Legal (216 x 356/8.5 x 14)
JIS B5 (182 x 257/7.2...

SPECIFICATIONS6.5
6
Guidelines for Using Paper
For the best result, use conventional 75 g/m2 (20 lb) paper.
Ensure that the paper is of good quality, and free of cuts, nicks,
tears, spots, loose particles, dust, wrinkles, voids, and curled or
bent edges.
If you are unsure of what type of paper you are loading (such
as, bond or recycled), check the label on the package.
The following problems may cause print quality deviations,
jamming or even damage to the printer.
Notes:
• Do not use letterhead...
