Panasonic Hc X1000 Owners Manual

- 151 -
Switch setting
All default settings are indicated with underlined text.
Sets the rotation direction and iris control of the iris ring.
Sets the function to assign to the USER buttons. ( l61)
Enable/disable of the sub recording start/stop button on the ha ndle can be switched.
Enable/disable of the sub zoom lever on the handle can be switc hed. Zoom speed will be different
depending on the setting. : [SW SETUP]
 # desired setting
[IRIS RING]
[DOWN OPEN]: Iris will open when it is turned toward...

- 152 -

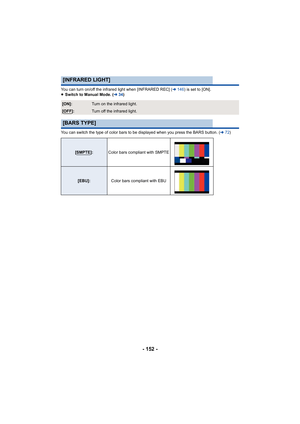

You can turn on/off the infrared light when [INFRARED REC] (l146 ) is set to [ON].
≥ Switch to Manual Mode. ( l34)
You can switch the type of color bars to be displayed when you  press the BARS button. (l72)
[INFRARED LIGHT]
[ON]:Turn on the infrared light.
[OFF]:Turn off the infrared light.
[BARS TYPE]
[SMPTE]: Color bars compliant with SMPTE
[EBU]: Color bars compliant with EBU

- 153 -
Display setting
Different menu items are displayed depending on whether this unit is in Recording Mode or
Playback Mode.
All default settings are indicated with underlined text.
Switches the display of the set USER button icons. ( l62)
Selects the brightness level of the left-leaning zebra patterns  on the screen.
1Touch [ZEBRA DETECT 1].≥Touch [YES].2 Touch  /  to adjust settings.
3 Touch [ENTER].
≥Touch [EXIT] to exit the menu screen.
≥This function’s default setting is 80%.
Selects the...

- 154 -
You can check if the image is level while recording motion pictures and still pictures. The function
can also be used to estimate the balance of the composition.
≥ The guidelines do not appear on the images actually recorded.
≥The setting changes as follows when using Focus Assist. ( l40)
j The guidelines are not displayed. (these are displayed on the TV when this unit is connected to
TV.)
j The setting cannot be changed.
Display of the range that can be displayed with the common
household TV...

- 155 -
It is possible to change the date format.
This function displays the horizontal/vertical tilt of the unit with the electronic level. (l70)
A graph with brightness as horizontal axis and number of pixels  at that brightness as vertical axis is
displayed. It is possible to determine the exposure of the whol e image by looking at the distribution
in the graph. ( l66)
≥ (In Playback Mode)
Touch the play mode select icon, and set this unit to Motion Pi cture Playback Mode. (l79)
Select to display...

- 156 -
This makes it easier to view the LCD monitor in bright places including outdoors. (l24)
It adjusts brightness and color density on the LCD monitor. ( l25)
Brightness of the viewfinder can be switched. ( l25)
Switches the mirror function of the LCD monitor when recording  yourself. (l26)
The image on the LCD monitor is displayed mirrored horizontally  during recording of yourself when
it is set to [MIRROR].
The recording images or playback images on the viewfinder can be selected between...

- 157 -
AV output setting
Different menu items are displayed depending on whether this unit is in Recording Mode or
Playback Mode.
All default settings are indicated with underlined text.
Select the desired method of HDMI output. ( l92)
This function allows you to select how to display images with a  16:9 aspect ratio on a TV with a 4:3
aspect ratio.
Selects the sound heard through the headphones.
≥ When this unit is connected to a TV using the HDMI cable (suppl ied), audio at the time of the...

- 158 -
Switches the output setting of time code information when this unit is connected to another device
(HDMI-SDI converter, etc.) with an HDMI cable.
Other Functions
Different menu items are displayed depending on whether this un it is in Recording Mode or
Playback Mode.
All default settings are indicated with underlined text.
The SD card or USB HDD can be formatted. ( l30, 104 )
≥ Please be aware that if a medium is formatted, then all the dat a recorded on the medium will be
erased and cannot be...

- 159 -

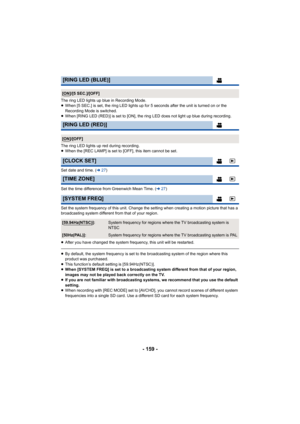

The ring LED lights up blue in Recording Mode.
≥When [5 SEC.] is set, the ring LED lights up for 5 seconds after  the unit is turned on or the
Recording Mode is switched.
≥ When [RING LED (RED)] is set to [ON], the ring LED does not lig ht up blue during recording.
The ring LED lights up red during recording.
≥ When the [REC LAMP] is set to [OFF], this item cannot be set.
Set date and time. ( l27)
Set the time difference from Greenwich Mean Time. ( l27)
Set the system frequency of this  unit....

- 160 -
Touch screen operation, start and stop of recording can be confirmed with this sound.
2 Beeps for 4 times
When an error occurs. Check the sentence displayed on the scree n. (l167 )
When about 5 minutes have passed without any operation, this uni t automatically turns off to save
battery life.
≥ This unit will not automatically turn off even if the [ECONOMY (BATT)] is set to [ON] in following
cases:
jWhen [USB MODE] ( l161 ) is set to [DEVICE] and this unit is connected to a PC or Blu- ray
disc...
