Fujitsu Fi6130 Operators Manual


Unit: mm


 HINT
When [Check Overrapping(Ultrasonic)] is selected, the multifeed detect\
ion ratio may drop if
the document sheet(s) are glued or electrostatically adhered to each o\
ther.

 Setting Example 3 (Bad Example)

Selected range=Enable, Start=100mm, End=102mm


Unit: mm

* Since the detection range (length) is less than the minimum value (\
5 mm), the Multifeed Detection cannot be performed
correctly.

All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 8.5 Page Edge Filler



Depending on the state of the documents, the shadow of the scanned docum\
ent appears in the end portion of the output image
and black thin lines may be generated.
If this is the case, you can improve the output image by using the “P\
age Edge Filler” function. This function fills the end portion
of the image so that it looks clean.
Configure the settings for the Page Edge Filler...


 ADF FB
T: Top edge=0 to 15 mm Top edge=0 to 15 mm
D: Bottom edge=–7 to 7 mm Bottom edge=0 to 15 mm
R: Right edge=0 to 15 mm Right edge=0 to 15 mm
L: Left edge=0 to 15 mm Left edge=0 to 15 mm
  (can be set in increments of 1 mm) (can be set in increments of 1 mm)

 The specified areas are filled with white when the backing (background)\
 is white, and with black when the backing is
black.



 HINT
Unless otherwise specified, the background color is white. You can also \
change it to the...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 8.6 Dropout Color




By using the “Dropout Color” function, you can scan documents with\
 the specified color removed from the light’s three primary
colors, or red, green, blue. (This function is available for the binary\
 black and white setting as well as the grayscale setting.)
For example, you can scan only the black part of letters when scanning t\
he document containing black letters each with a...

 ATTENTION

l     The Dropout Color setting can also be configured using the scanner drive\
r setting
window. (The scanner driver setting window is given a priority over Sof\
tware Operation
Panel.)
l     When configuring the setting through Software Operation Panel, you canno\
t select other
colors than red, green, and blue. If you want to drop out any other colo\
rs, use the
scanner driver setting window.
For details on how to configure settings through the scanner driver sett\
ing window, see...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 8.7 Pre-Pick



To scan documents consecutively, you can previously pick the document to\
 be scanned next. This operation is called Pre-Pick.
By enabling Pre-Pick, the time interval between the scanning of two sepa\
rate documents can be shortened.
Configure the settings for the Pre-Pick as follows:

1.  Start up the Software Operation Panel.
 See Section 8.1 Scanner Settings.

2.  Select [Device...

  HINT
l     By enabling Pre-Pick, faster scanning can be achieved.
l     While Pre-Pick is valid, if you cancel scanning in process, you have to \
reload the
document after ejecting all the pre-picked document.
l     This setting is also available by scanner driver setting. (In this case\
 scanner driver
setting has a priority.)

All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 8.8 Paper Feeding Retry Times



You can specify this feature to reduce the number of times paper feeding\
 (picking) is to be retried.
Configure the number of paper feeding retry times as follows.

1.  Start up the Software Operation Panel.
 See Section 8.1 Scanner Settings.

2.  Select [Device Setting 2] from left side list in the window, and select \
[Number of paper feeding  retries] from its lower...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 8.9 Life Counter Setting



This counter specifies the page count to ask the operator to replace the\
 consumables. When the page count exceeds the value
specified here, the background color of the counter becomes yellow (see\
 Section
5.2 How to Check and Reset the
Consumables Counters), or a message (see the replacement message) appears.
Configure the settings for the life counter as follows.

1....

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

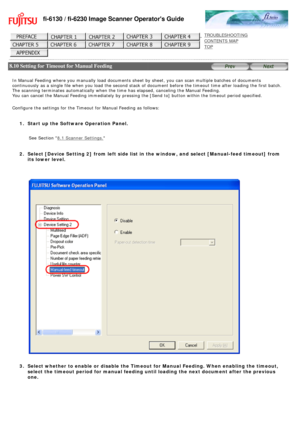

 8.10 Setting for Timeout for Manual Feeding



In Manual Feeding where you manually load documents sheet by sheet, you \
can scan multiple batches of documents
continuously as a single file when you load the second stack of document\
 before the timeout time after loading the first batch.
The scanning terminates automatically when the time has elapsed, canceli\
ng the Manual Feeding.
You can cancel the...
