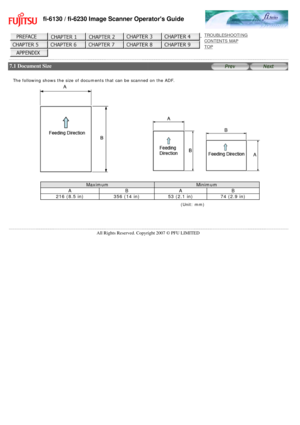

 7.1 Document Size



The following shows the size of documents that can be scanned on the ADF\
.

Maximum Minimum
A  B AB
216 (8.5 in)  356 (14 in) 53 (2.1 in)74 (2.9 in)
(Unit: mm)



All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 7.2 Document Quality




 Document Type
The following paper types are recommended for document use:

l     Woodfree paper
l     Wood containing paper

When using documents of paper type other than the above, check whether o\
r not the document can be scanned by test-
scanning a few sheets before executing the actual document.
Any other paper types of documents can be scanned through the Flatbed....

 ATTENTION

l     Carbonless paper contains chemical substances that may harm the Brake ro\
ller or
paper-feeding rollers (e.g. Pick roller) when documents are fed. Pay a\
ttention to the
following:
Cleaning:
If document jams occur frequently, clean the Brake roller and the Pick r\
oller.
For details on cleaning the Brake roller and the Pick roller, see Chapte\
r
4. DAILY
CARE.
Replacing parts:
The service life of the Brake roller and the Pick roller may be shortene\
d compared to
that...

 Thickness: 0.056 inches / 1.4 mm or less
 Material: PVC (Poly vinyl chloride) or PVCA (Polyvinyl chloride acetate)
Note: Before scanning your card, test with a dummy card of the same mate\
rial to
see if it can be fed into the ADF properly.
l     Cards that are excessively rigid or less flexible may not feed smoothly \
and excessive
noise may occur.
Note: If the cards do not feed smoothly, try:
- Scanning one card at a time.
- Enabling [Automatic Paper Size Detection]. For how to configure this...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 7.3 Maximum Document Loading Capacity



The maximum number of sheets that can be loaded on the ADF paper chute i\
s determined by the size and weight of the
document. The following graph shows the maximum document loading capacit\
y of ADF according to paper weight.

Unit  Conversion
g/m
2  40
5264 758090 104127
lb  111417 202124 2834
kg  354555 64.5 6977.5 90110

All Rights Reserved. Copyright 2007 ©...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 7.4 Area Not to be Perforated



When using the ADF, document trouble might occur if there are punched ho\
les in the shaded area in the following figure. If
hole-punched documents must be scanned, use the Flatbed (fi-6230 only)\
.

All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 7.5 Multifeed Detection Conditions


There are three multifeed detection modes: document overlapping, documen\
t length, and both document thickness and length.
The following conditions must be satisfied in each of these detection mo\
des.
 Detection by Document Overlapping
 Sheets of the same thickness shall be set in the ADF at a time.

l     Document thickness: 0.05 to 0.26 mm
l     Punched holes are...


All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 Chapter 8 SCANNER SETTINGS



This chapter explains the how settings can be done for the scanner using\
 the Software Operation Panel.














All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 8.1 Scanner Settings



The Software Operation Panel (SOP) will be installed together with the\
 scanner driver (TWAIN/ISIS).
With this application, you can configure settings and functions for the \
fi-6130 and the fi-6230.

 Start up the Software Operation Panel

 1.  Confirm if the scanner is connected correctly to the PC, then power on t\
he scanner.


2.  From the [Start] menu, select [All...
