31The INPUT SETTING Menu
Adjustments and Settings Using a Menu
 For Aspect, some of the “Aspect” setting items are not displayed on the screen according to the
input signal.
 Note that if the projector is used for profit or for public viewing, modifying the original picture by
switching to the wide mode may constitute an infringement of the rights of authors or producers,
which are legally protected.
This projector has 45 types of preset data for
input signals (the preset memory). When a
preset...

32The SET SETTING Menu
The SET SETTING Menu
The SET SETTING menu is used for changing the settings of the projector.
Setting items Functions Initial setting
Smart APA The APA (Auto Pixel Alignment) automatically
adjusts “Dot Phase,” “H Size” and “Shift” on the
INPUT SETTING menu for the input signal from a
computer.
On: When a signal is input from a computer, the
APA functions automatically so that the picture can
be seen clearly. You can adjust the picture by
pressing the APA key on the Remote...

33The SET SETTING Menu
Adjustments and Settings Using a Menu
 Press the APA key when the full image is displayed on the screen. If the projected image includes
a black portion around it, the APA function will not work properly and some parts of the image
may not be displayed on the screen.
- You can cancel the adjustment by pressing the APA key again while “Adjusting” appears on the
screen.
- The picture may not be adjusted properly depending on the type of input signal.
- Adjust the “Dot Phase,” “H...

34The MENU SETTING Menu

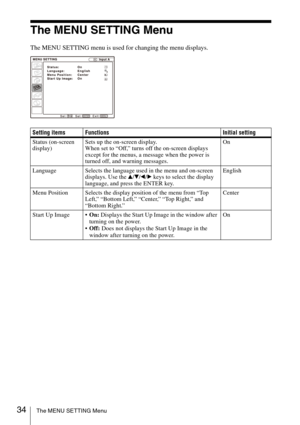

The MENU SETTING Menu
The MENU SETTING menu is used for changing the menu displays.
Setting items Functions Initial setting
Status (on-screen
display)Sets up the on-screen display.
When set to “Off,” turns off the on-screen displays
except for the menus, a message when the power is
turned off, and warning messages.On
Language Selects the language used in the menu and on-screen
displays. Use the v/V/b/B keys to select the display
language, and press the ENTER key.English
Menu...

35The INSTALL SETTING Menu
Adjustments and Settings Using a Menu
The INSTALL SETTING Menu
The INSTALL SETTING menu is used for changing the settings of the projector.
INSTALL SETTINGInput-A
V Keystone:  Auto
Image Flip:  Off
Background: Blue
Lamp Mode:  Standard
High Altitude Mode: Off
Security Lock:  Off
Direct Power On:  Off
Standby Mode:  Low
Setting items Functions Initial setting
V Keystone Corrects the trapezoidal distortion caused by the projection
angle. Select “Auto” for automatic correction,...

36The INSTALL SETTING Menu
 The picture quality may deteriorate when the V Keystone function is used, because it is an
electrical correction.
 If you set “High Altitude Mode” to “On” at an altitude of under 1,500 m, the reliability of the lamp
may be reduced.
 The auto V Keystone adjustment may not correct the trapezoidal distortion perfectly, depending
on the room temperature or the screen angle.
 If you need fine adjustment when V Keystone is set to “Auto,” press the KEYSTONE key on the
control...

37The INFORMATION Menu
Adjustments and Settings Using a Menu
The INFORMATION Menu
The INFORMATION menu displays the model name, serial number, the horizontal and vertical
frequencies of the input signal and the cumulated hours of usage of the lamp.
These are only displayed on the screen. You cannot alter the display, and these is no setting to be
altered.
fH: 48.47kHzfV: 60.00Hz
 No.23
 1024x768
Lamp Timer:  2     H VPL-EX130Serial No.3333333
INFORMATIONInput A
Memory number of an input signal
Signal...

38The INFORMATION Menu
Input signals and adjustable/setting items
Some of the items in the menus cannot be adjusted depending on the input signal as indicated
in the following tables.
The items that cannot be adjusted are not displayed in the menu.
PICTURE SETTING menu
z : Adjustable/can be set
– : Not adjustable/cannot be set
*1: Except for preset memory No. 7, 8*2: Cannot be set in the Presentation mode
INPUT SETTING menu
z : Adjustable/can be set
– : Not adjustable/cannot be set
*3: Can be set...

39Replacing the Lamp
Maintenance
BMaintenance
Replacing the Lamp
The lamp used as a light source is
consumable product. Thus replace the lamp
with a new one in the following cases.
 When the lamp has burnt out or dims
  “Please replace the Lamp.” appears on the
screen
 The LAMP/COVER indicator lights up
(repeats flashing three times)
The lamp life varies depending on
conditions of use.
Use an LMP-E210 Projector Lamp as the
replacement lamp.
Use of any other lamps than the LMP-E210
may cause...

40Replacing the Lamp
5Insert the new lamp all the way in until
it is securely in place (a). Tighten the
two screws (b).

 Be careful not to touch the glass surface
of the lamp.
 The power will not turn on if the lamp is
not secured properly.
 Do not allow any liquid or other objects
into the slot to avoid electrical shock or
fire.
6Close the lamp cover and tighten the
screw.
Be sure to attach the lamp cover securely
as it was. If not, the projector cannot be
turned on.
7Turn the projector back...
