CHP. 13USING VIDEO FX, COMPOSITING, AND MASKS
209
Adding a plug-in from the Video FX or Plug-In Manager window
1.
If the Video FX or Plug-In Manager window is not currently visible, choose either Video FX or Plug-In
Manager
 from the View menu to view the appropriate window.
2.Drag a plug-in from the window to one of the following locations:
file in the Media Pool
event
track list or empty section of a track
Video Preview window (video output effects)
3.Modify the effect in the Video FX window and...

210
USING VIDEO FX, COMPOSITING, AND MASKSCHP. 13
Working with video effects plug-in chains
You can apply plug-ins in chains of two or more for even greater flexibility. A plug-in chain is a sequence of
all of the plug-ins to be applied to a media file, event, track, or project. The same plug-in can be added to a
chain more than once. Use the same steps to add additional plug-ins to a chain as you use to add a single
plug-in. For more information, see Adding a video effects plug-in on page 208.
After...

CHP. 13USING VIDEO FX, COMPOSITING, AND MASKS
211
The goal of the above example is to use video effects plug-ins to create a very high-contrast mask out of a
video clip of fire. In the image on the left, a Brightness and Contrast plug-in is applied first and then a Black
and White plug-in. In the image on the right, the Black and White plug-in was applied first, removing the
color, and then the Brightness and Contrast plug-in was applied. The mask created by the second example is
much cleaner, even...

212
USING VIDEO FX, COMPOSITING, AND MASKSCHP. 13
Modifying a video effects plug-in
Video effects plug-ins are highly customizable. You can select from a variety of presets or adjust the settings
for custom effects. You can also save custom settings to be used again as a new preset.
1.Click the FX button ( ) on the event, track, Media Pool file, or Video Preview window that has the
plug-in applied to it. The Video FX window appears.
2.Select a preset from the Preset drop-down list or adjust the...

CHP. 13USING VIDEO FX, COMPOSITING, AND MASKS
213
Using generated media
Generated media plug-ins are a special class of plug-
in that creates virtual media files contained in
events on the timeline. These virtual files are stored
in the Media Pool, where their properties can be
viewed and modified.
Generated media provide an easy way to add text,
backgrounds, or test patterns to your project. You
can view the generators by choosing
Media
Generators
from the View menu to display the Media...

214
USING VIDEO FX, COMPOSITING, AND MASKSCHP. 13
Duplicating a generated media event
Once you have added a generated media event and modified its settings, you can duplicate it. For more
information, see Duplicating events on page 67.
When you duplicate a generated media event, you have two options:
Select the
Create a new copy of the source media radio button if
you want the new event to be modified on its own. The new
event is completely independent of the original event.
Select the
Create a...

CHP. 13USING VIDEO FX, COMPOSITING, AND MASKS
215
In the second example, track two is the child track of track one (the parent track), and the compositing
mode of track one is set to
Mask. This parent/child relationship was set up by clicking the Make Compositing
Child
 button ( ) in the track list for track two. This makes the text in track one act as a mask over track two,
allowing the fire to show through the mask (i.e., the text). The region outside of the text is still transparent,
but there is...

216
USING VIDEO FX, COMPOSITING, AND MASKSCHP. 13
The sample below uses a generated text event that is partially transparent. For more information, see Using
generated media on page 213.
The following table shows how these two sample tracks are blended using each of the compositing modes.
Compositing mode Sample Description
AddAdds the overlay color values to the background.
Subtract Subtracts the overlay color values from the background.
Multiply (Mask)Multiplies the overlay color values by the...

CHP. 13USING VIDEO FX, COMPOSITING, AND MASKS
217
Adjusting opacity with the composite level slider
You can precisely control the transparency or blending of the overlay with the
composite level slider. Left is transparent and right is 100% opaque. You can
also double-click the current value to enter a specific numeric percentage.

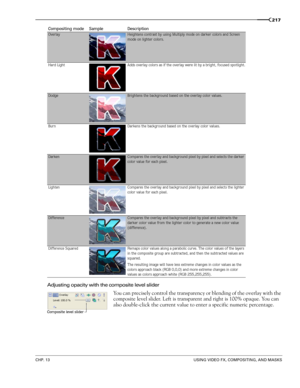

OverlayHeightens contrast by using Multiply mode on darker colors and Screen
mode on lighter colors.
Hard Light Adds overlay colors as if the overlay were lit by a bright,...

218
USING VIDEO FX, COMPOSITING, AND MASKSCHP. 13
Using a 2-to-1 transform plug-in to customize compositing
Click the Parent Composite Mode () or Composite Mode button and choose Custom from the menu to use
plug-ins to control how the parent track modifies the tracks in its composite group.
The included Displacement Map, Height Map, and Bump Map plug-ins can create interesting lens, mirror,
water, fire, and other light-bending effects. These plug-ins are explained below:
Displacement Map: Uses the...
