Panasonic Kx Ta824 Feature Guide
Here you can view all the pages of manual Panasonic Kx Ta824 Feature Guide. The Panasonic manuals for System are available online for free. You can easily download all the documents as PDF.

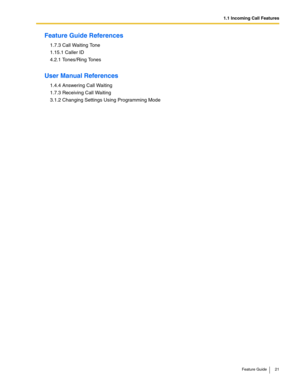

Page 21
1.1 Incoming Call Features Feature Guide 21 Feature Guide References 1.7.3 Call Waiting Tone 1.15.1 Caller ID 4.2.1 Tones/Ring Tones User Manual References 1.4.4 Answering Call Waiting 1.7.3 Receiving Call Waiting 3.1.2 Changing Settings Using Programming Mode
Page 22
![Page 22
1.2 Receiving Group Features
22 Feature Guide
1.2 Receiving Group Features
1.2.1 Idle Extension Hunting
Description
If a called extension is busy, Idle Extension Hunting redirects the call to an idle member of the same
extension group, if that group has been assigned as an idle extension hunting group through system
programming (
Hunting Group Set [100]). Idle extensions are automatically searched for according to a
preprogrammed hunting type ( Hunting Type [101]).
This feature is also known as...](http://img.usermanuals.tech/thumb/58/64566/w300_kx-ta824_en_feature_guide_v1_om_d-21.png "Page 22
1.2 Receiving Group Features
22 Feature Guide
1.2 Receiving Group Features
1.2.1 Idle Extension Hunting
Description
If a called extension is busy, Idle Extension Hunting redirects the call to an idle member of the same
extension group, if that group has been assigned as an idle extension hunting group through system
programming (
Hunting Group Set [100]). Idle extensions are automatically searched for according to a
preprogrammed hunting type ( Hunting Type [101]).
This feature is also known as...")
1.2 Receiving Group Features 22 Feature Guide 1.2 Receiving Group Features 1.2.1 Idle Extension Hunting Description If a called extension is busy, Idle Extension Hunting redirects the call to an idle member of the same extension group, if that group has been assigned as an idle extension hunting group through system programming ( Hunting Group Set [100]). Idle extensions are automatically searched for according to a preprogrammed hunting type ( Hunting Type [101]). This feature is also known as...
Page 23
1.2 Receiving Group Features Feature Guide 23 Message Waiting A message waiting indication will not be sent to an idle extension hunting destination. The MESSAGE button light or Message/Ringer Lamp turns on at the original destination only ( 1.16.1 Message Waiting). Feature Guide References 2.2.2 Group
Page 24
![Page 24
1.2 Receiving Group Features
24 Feature Guide
1.2.2 Direct Inward System Access (DISA) Ring
Description
A Direct Inward System Access (DISA) ring group is a specific extension group that receives DISA calls
directed to the group. All extensions in the DISA ring group assigned as an Automated Attendant (AA)
destination (
DISA Built-in AA [501]) ring simultaneously.
Delayed Ringing
Each extension can be programmed for Delayed Ringing ( Delayed Ringing—Day/Night/Lunch [411-
413]), which allows...](http://img.usermanuals.tech/thumb/58/64566/w300_kx-ta824_en_feature_guide_v1_om_d-23.png "Page 24
1.2 Receiving Group Features
24 Feature Guide
1.2.2 Direct Inward System Access (DISA) Ring
Description
A Direct Inward System Access (DISA) ring group is a specific extension group that receives DISA calls
directed to the group. All extensions in the DISA ring group assigned as an Automated Attendant (AA)
destination (
DISA Built-in AA [501]) ring simultaneously.
Delayed Ringing
Each extension can be programmed for Delayed Ringing ( Delayed Ringing—Day/Night/Lunch [411-
413]), which allows...")
1.2 Receiving Group Features 24 Feature Guide 1.2.2 Direct Inward System Access (DISA) Ring Description A Direct Inward System Access (DISA) ring group is a specific extension group that receives DISA calls directed to the group. All extensions in the DISA ring group assigned as an Automated Attendant (AA) destination ( DISA Built-in AA [501]) ring simultaneously. Delayed Ringing Each extension can be programmed for Delayed Ringing ( Delayed Ringing—Day/Night/Lunch [411- 413]), which allows...
Page 25
1.2 Receiving Group Features Feature Guide 25 1.2.3 Log-in/Log-out Description Members of an idle extension hunting group or Direct Inward System Access (DISA) ring group can join (Log-in) or leave (Log-out) groups manually. Group members can log in at the beginning of a work shift when they are ready to answer calls, and log out at the end of the work shift. Conditions The last member of a group cannot log out. While logged out from a group, a member extension will not receive calls to that group...
Page 26
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features 26 Feature Guide 1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features 1.3.1 Call Forwarding (FWD)/Do Not Disturb (DND) 1.3.1.1 Call Forwarding (FWD)/Do Not Disturb (DND)—OVERVIEW Description When an extension user cannot answer calls (is on a call, out of the office, etc.), it is possible to forward or refuse calls directed to that extension using the following features: 1.Call Forwarding (FWD) 2.Do Not Disturb (DND) 1.FWD Extension users can...
Page 27
![Page 27
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features
Feature Guide 27
1.3.1.2 Call Forwarding (FWD)
Description
Extension users can forward their calls to preset destinations. There are 4 Call Forwarding (FWD) modes,
described below.
[Available Destinations]
Conditions
[General]
This feature does not apply to calls from Hold Recall and Camp-on Recall.
The types of calls that are forwarded by this feature are:
ModeDescription
All CallsAll calls are forwarded to another extension.
Busy/No...](http://img.usermanuals.tech/thumb/58/64566/w300_kx-ta824_en_feature_guide_v1_om_d-26.png "Page 27
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features
Feature Guide 27
1.3.1.2 Call Forwarding (FWD)
Description
Extension users can forward their calls to preset destinations. There are 4 Call Forwarding (FWD) modes,
described below.
[Available Destinations]
Conditions
[General]
This feature does not apply to calls from Hold Recall and Camp-on Recall.
The types of calls that are forwarded by this feature are:
ModeDescription
All CallsAll calls are forwarded to another extension.
Busy/No...")
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features Feature Guide 27 1.3.1.2 Call Forwarding (FWD) Description Extension users can forward their calls to preset destinations. There are 4 Call Forwarding (FWD) modes, described below. [Available Destinations] Conditions [General] This feature does not apply to calls from Hold Recall and Camp-on Recall. The types of calls that are forwarded by this feature are: ModeDescription All CallsAll calls are forwarded to another extension. Busy/No...
Page 28
![Page 28
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features
28 Feature Guide
When a call is forwarded, the corresponding message waiting indication is not forwarded. The
MESSAGE button light or Message/Ringer Lamp turns on only at the originally called extension (
1.16.1 Message Waiting).
It is programmable whether the calls received on outside (CO) lines programmed as Normal ( CO
Line Mode—Day/Night/Lunch [414-416]) are forwarded for each extension or not ( Call Forwarding
Selection [963]). If FWD...](http://img.usermanuals.tech/thumb/58/64566/w300_kx-ta824_en_feature_guide_v1_om_d-27.png "Page 28
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features
28 Feature Guide
When a call is forwarded, the corresponding message waiting indication is not forwarded. The
MESSAGE button light or Message/Ringer Lamp turns on only at the originally called extension (
1.16.1 Message Waiting).
It is programmable whether the calls received on outside (CO) lines programmed as Normal ( CO
Line Mode—Day/Night/Lunch [414-416]) are forwarded for each extension or not ( Call Forwarding
Selection [963]). If FWD...")
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features 28 Feature Guide When a call is forwarded, the corresponding message waiting indication is not forwarded. The MESSAGE button light or Message/Ringer Lamp turns on only at the originally called extension ( 1.16.1 Message Waiting). It is programmable whether the calls received on outside (CO) lines programmed as Normal ( CO Line Mode—Day/Night/Lunch [414-416]) are forwarded for each extension or not ( Call Forwarding Selection [963]). If FWD...
Page 29
![Page 29
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features
Feature Guide 29
timer expires. When the timer expires, the call is disconnected ( 1.9.8 Outside-to-Outside (CO-to-
CO) Line Call Duration).
If a CPC (Calling Party Control) signal is received from an outside (CO) line, the corresponding call
between 2 outside par ties will be disconnected.
User Manual References
1.5.1 Forwarding Your Calls (Call Forwarding [FWD])
1.5.5 Using Voice Messaging (Built-in Voice Message [BV])
1.8.3 If a Voice...](http://img.usermanuals.tech/thumb/58/64566/w300_kx-ta824_en_feature_guide_v1_om_d-28.png "Page 29
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features
Feature Guide 29
timer expires. When the timer expires, the call is disconnected ( 1.9.8 Outside-to-Outside (CO-to-
CO) Line Call Duration).
If a CPC (Calling Party Control) signal is received from an outside (CO) line, the corresponding call
between 2 outside par ties will be disconnected.
User Manual References
1.5.1 Forwarding Your Calls (Call Forwarding [FWD])
1.5.5 Using Voice Messaging (Built-in Voice Message [BV])
1.8.3 If a Voice...")
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features Feature Guide 29 timer expires. When the timer expires, the call is disconnected ( 1.9.8 Outside-to-Outside (CO-to- CO) Line Call Duration). If a CPC (Calling Party Control) signal is received from an outside (CO) line, the corresponding call between 2 outside par ties will be disconnected. User Manual References 1.5.1 Forwarding Your Calls (Call Forwarding [FWD]) 1.5.5 Using Voice Messaging (Built-in Voice Message [BV]) 1.8.3 If a Voice...
Page 30
![Page 30
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features
30 Feature Guide
1.3.1.3 Do Not Disturb (DND)
Description
Extension users can use this feature to prevent calls from ringing at their extension. The calling extension
will hear a Do Not Disturb (DND) tone.
Conditions
DND Override
An extension in DND mode can be called by extensions that are allowed to override DND through
system programming (
DND Override [609]).
This feature does not apply to calls from Hold Recall and Timed Reminder.
...](http://img.usermanuals.tech/thumb/58/64566/w300_kx-ta824_en_feature_guide_v1_om_d-29.png "Page 30
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features
30 Feature Guide
1.3.1.3 Do Not Disturb (DND)
Description
Extension users can use this feature to prevent calls from ringing at their extension. The calling extension
will hear a Do Not Disturb (DND) tone.
Conditions
DND Override
An extension in DND mode can be called by extensions that are allowed to override DND through
system programming (
DND Override [609]).
This feature does not apply to calls from Hold Recall and Timed Reminder.
...")
1.3 Call Forwarding (FWD)/Do Not Disturb (DND) Features 30 Feature Guide 1.3.1.3 Do Not Disturb (DND) Description Extension users can use this feature to prevent calls from ringing at their extension. The calling extension will hear a Do Not Disturb (DND) tone. Conditions DND Override An extension in DND mode can be called by extensions that are allowed to override DND through system programming ( DND Override [609]). This feature does not apply to calls from Hold Recall and Timed Reminder. ...
