Nortel Modular Ics 6.1 Programming Record Manual

82
Modular ICS 6.1 Programming RecordP0603536   02
Use the following commands to change defaults and configure the lines and sets to suit your system requirements.
Use Installer or Administrator access codes.
Te r m i na ls  &  Se t sThese commands allow you to assign settings to each telephone (DN).
 Show set:_Enter the D N of the telephone you want to program.
 XXXX:XXXXDN number and current name displays to confirm your request.
 Line accessThese commands allow you to assign lines to each DN.
You...

83
P0603536   02Modular ICS 6.1 Programming Record
 DND on BusySelect whether or not an incoming call rings if the user already is on another
call.
 Handsfree Select whether handsfree will be available to a telephone.
 HF answerbackSelect whether a user can automatically  answer a  voice  call without lifting the
receiver or pressing the
Å button. It is always turned off for a T7100
telephone.
 Pickup grpAny user in a pickup group can answer calls to any other telephone in their
group...

84
Modular ICS 6.1 Programming RecordP0603536   02
 ATA  d v cSet to enhance connectivity for  telephones connecting to PRI and BRI lines
through an ATA module. Choose Telephon for telephones, and Modem for
other devices, such as fax machines.
 SM SupervisorSelect whether the telephone can be used to perform silent monitoring on
Hunt groups.
 IntrusionDetermine what priority an attendant telephone will have to allow a break-in
by an M1 attendant telephone. To stop break-in, this setting...

85
P0603536   02Modular ICS 6.1 Programming Record
 Pg Zone All:F610
 Page Zone 1:F611
 Page Zone 2:F612
 Page Zone 3:F613
 Page Zone 4:F614
 Page Zone 5:F615
 Page Zone 6:F616Page internally by zone.
Zone 0 pages all zones.
 Page Spkr:F62Page through an external loudspeaker system.
 Pg All, Spkr:F630
 Page Spkr+1:F631
 Page Spkr+2:F632
 Page Spkr+3:F633
 Page Spkr+4:F634
 Page Spkr+5:F635
 Page Spkr+6:F636Page...

86
Modular ICS 6.1 Programming RecordP0603536   02
 Show time:F803Use to display the time and date while on a call.
 Wait:Dial:F804Use to program an external autodial number to cause the system to wait to
receive dial tone from another system before proceeding with the dialing
sequence.
 Ringing Call:F807
 Long Tones: F808Use to generate a tone for the period you hold down a button to communicate
with devices such as faxes and answering machines.
 Call Info:F811Use to...

87
P0603536   02Modular ICS 6.1 Programming Record
 Voice Deny:F88Use to prevent the set from receiving voice calls.
 MCID:F897ESTI lines only: If service is active from the service provider, this feature
saves current caller information at the service provider system.
 Language:F*501Select the display language. (501 = first language; 502 = second language;
503 = third language
 Sil Mon:F*550Allows users at a supervisor terminal to monitor external Hunt group calls.
...

88
Modular ICS 6.1 Programming RecordP0603536   02
 Line/set rstrnsAssign restriction filters to certain lines on each set in your system.
 Show line:_Select the line on this telephone for which the restriction will apply.
 Normal
 Night
 Evening
 Lunch
 Sched 4
 Sched 5
 Sched 6For each line, enter the number (two-digit) of the restriction filter to apply
during normal service and each of the schedules.
 Telco featuresThese commands allow you to program how...

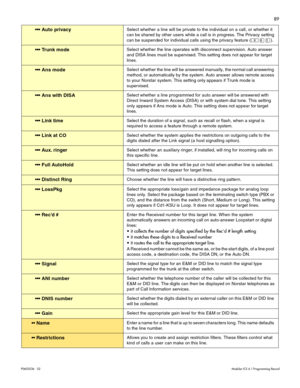

89
P0603536   02Modular ICS 6.1 Programming Record
 Auto privacySelect whether a line will be private to the individual on a call, or whether it
can be shared by other users while a call is in progress. The Privacy setting
can be suspended for individual calls using the privacy feature (
²¡Ü).
 Trunk modeSelect whether the line operates with disconnect supervision. Auto answer
and DISA lines must be supervised. This setting does not appear for target
lines.
 Ans modeSelect whether the line...

90
Modular ICS 6.1 Programming RecordP0603536   02
 Restrn filtersThese are sets or groups of restrictions and associated overrides that specify
the external numbers or feature codes that cannot be dialed from a telephone
or line.
 Show filter:_Enter the two-digit filter number.
 Restrn flt 00Filter 00 is pre-set with no restrictions.
 Restrn flt 01First programmable restriction. For each filter, enter up to 99 restrictions.
 DenyEnter the digits you wish to be restricted when...

91
P0603536   02Modular ICS 6.1 Programming Record
 Sched:NightSelect options for your ringing service.
 ServiceSelect how you want your service activated.
 Trunk AnswerAllow the telephone to answer incoming calls arriving at  any telephone on the
system.
 ExtraDialEnter the internal telephone number of the Extra-Dial telephone. This allows
you to assign an additional Direct-dial telephone in the Norstar system for
each schedule you use.
 Line settingsSelect ringing service options for...
