Power connector
DescriptionSpare part number
Power connector641137-001
Before removing the power connector cable, remove the following components:
1.Battery (see
Battery on page 43)
2.Service access cover (see
Service access cover on page 44)
3.Hard drive (see
Hard drive on page 45)
4.Optical drive (see
Optical drive on page 47)
5.Keyboard (see
Keyboard on page 52)
6.Top cover (see
Top cover on page 55)
Remove the power connector:
1.Position the computer right-side up.
2.Disconnect the power...

Display assembly
DescriptionSpare part number
39.6-cm (15.6-in) High Definition (HD), light-emitting diode (LED) BrightView display assembly:
●For use in Charcoal Grey computer models 645523-001
●For use in Ocean Drive computer models 636378-001
●For use in Sonoma Red computer models 645521-001
●For use in Luminous Rose computer models 645522-001
●For use in Pewter computer models 645524-001
●For use in Pacific Blue computer models 645525-001
●For use in Pearl Pink computer models 645526-001
●For use in...

6.Lift the display panel (4) straight up to remove it.
NOTE:The security bracket is part of the right hinge.
Reverse this procedure to install the display assembly.
Component replacement procedures 65

7.To replace any of the display assembly internal components, remove the following screw covers
and screws:
(1) Two Mylar screw covers on the display bezel bottom edge
(2) Two Phillips 5.0×2.5 screws
8.Flex the inside edge of the left side (1), the top and bottom sides (2), and the right side (3) of the
display bezel until the bezel disengages from the display back cover.
9.Remove the display bezel (4).
Reverse this procedure to install the display bezel.
66 Chapter 4   Removal and replacement procedures

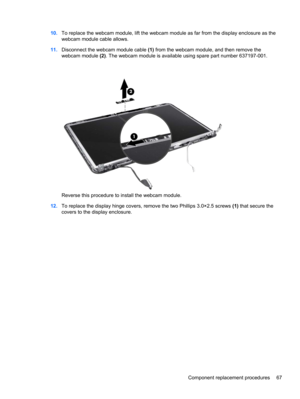

10.To replace the webcam module, lift the webcam module as far from the display enclosure as the
webcam module cable allows.
11.Disconnect the webcam module cable (1) from the webcam module, and then remove the
webcam module (2). The webcam module is available using spare part number 637197-001.
Reverse this procedure to install the webcam module.
12.To replace the display hinge covers, remove the two Phillips 3.0×2.5 screws (1) that secure the
covers to the display enclosure.
Component replacement...

13.Remove the display hinge covers (2). The display hinge covers are available using spare part
number 641142-001.
Reverse this procedure to install the display hinge covers.
14.To replace the display panel, remove four Phillips 4.0×2.5 screws that secure the display panel
to the display enclosure.
15.Tilt the display (1) up, release the tape (2) holding the display cable to the display panel, and
then disconnect the cable (3).
68 Chapter 4   Removal and replacement procedures

16.Remove the display panel (4) from the display enclosure. The display panel is available using
spare part number 647623-001 .
Reverse this procedure to install the display panel.
17.To replace the display panel brackets, remove the two Phillips PM 3.0×2.0 screws (1) that
secure each bracket to the display panel.
18.Remove the display brackets (2) from the display panel. The display brackets are available using
spare part number 637191-001.
Reverse this procedure to install the display hinges.
19.To...

20.Lift up to remove the transceiver cable(2). The wireless antenna transceivers and cable are
available using spare part number 637185-001.
Reverse this procedure to install the display wireless antenna transceivers.
21.To remove the display cable from the display enclosure, lift the adhesive tabs (1) that hold the
display cable to the display enclosure. Gently peel the display cable (2) away from the adhesive
that holds the cable to the display panel.
Reverse this procedure to install the display...

System board
NOTE:The system board spare part kit includes UMA or discrete graphics subsystem memory and
replacement thermal material.
DescriptionSpare part number
For use in Intel HM55 UMA computer models 636370-001
For use in Intel HM65 UMA computer models 636373-001
For use in Intel HM55 discrete, 512 MB computer models 636371-001
For use in Intel HM55 discrete, 1 GB computer models 636372-001
For use in Intel HM65 discrete, 512 MB computer models 636374-001
For use in Intel HM65 discrete, 1 GB...

Remove the system board:
1.Disconnect the optical drive connector from the system board (1) .
2.Remove the Phillips 5.0×2.0 screw (2) that secures the system board to the base enclosure.
3.Lift the system board (3) from the right edge and pull it away from the base enclosure at an
angle.
For AMD computer models, see the following image.
For Intel computer models, see the following image.
72 Chapter 4   Removal and replacement procedures
