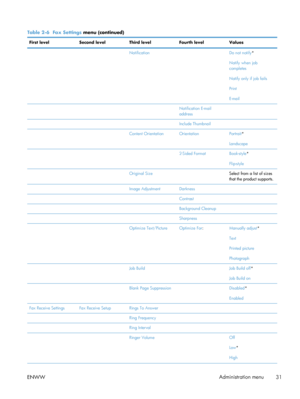

Page 51

Table 2-6  Fax Settings  menu (continued)
First level Second levelThird levelFourth level Values
   Notification Do not notify*
Notify when job
completes
Notify only if job fails
Print
E-mail
    Notification E-mail
address
    Include Thumbnail
   Content Orientation OrientationPortrait*
Landscape
    2-Sided FormatBook-style*
Flip-style
   Original Size Select from a list of sizes
that the product supports.
   Image Adjustment Darkness
    Contrast
    Background Cleanup
    Sharpness
   Optimize...

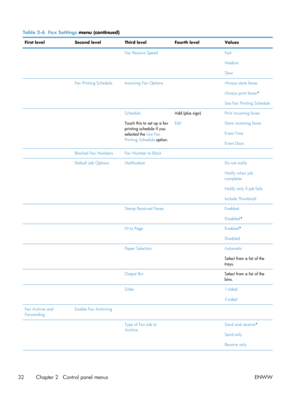

Page 52

Table 2-6  Fax Settings  menu (continued)
First level Second levelThird levelFourth level Values
   Fax Receive Speed Fast
Medium
Slow
  Fax Printing Schedule Incoming Fax Options  Always store faxes
Always print faxes*
Use Fax Printing Schedule
   Schedule
Touch this to set up a fax
printing schedule if you
selected the Use Fax
Printing Schedule  option.Add (plus sign)
Edit
Print incoming faxes
Store incoming faxes
Event Time
Event Days
  Blocked Fax Numbers Fax Number to Block
  Default Job Options...

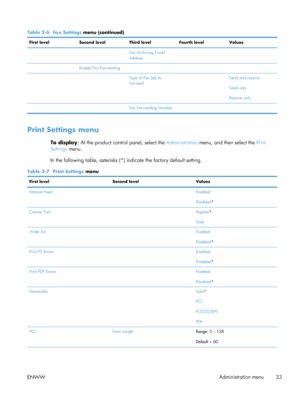

Page 53

Table 2-6  Fax Settings  menu (continued)
First level Second levelThird levelFourth level Values
   Fax Archiving E-mail
Address
  Enable Fax Forwarding
   Type of Fax Job to
Forward
Send and receive
Send only
Receive only
   Fax Forwarding Number
Print Settings menu
To display: At the product control panel, select the  Administration menu, and then select the  Print
Settings  menu.
In the following table, asterisks (*)  indicate the factory default setting.
Table 2-7  Print Settings  menu
First...

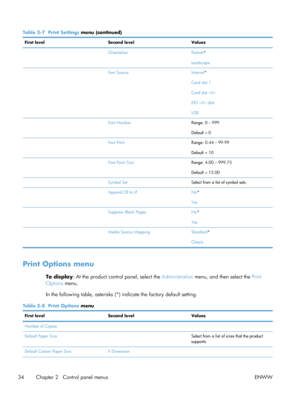

Page 54

Table 2-7  Print Settings  menu (continued)
First level Second level Values
  OrientationPortrait*
Landscape
  Font Source Internal*
Card slot 1
Card slot
EIO  disk
USB
  Font NumberRange: 0 – 999
Default = 0
  Font PitchRange: 0.44 – 99.99
Default = 10
  Font Point SizeRange: 4.00 – 999.75
Default = 12.00
  Symbol SetSelect from a list of symbol sets.
  Append CR to LFNo*
Yes
  Suppress Blank PagesNo*
Yes
  Media Source MappingStandard*
Classic
Print Options menu
To display : At the product control...

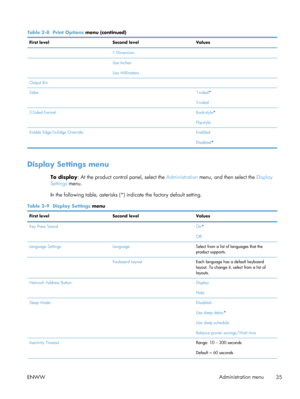

Page 55

Table 2-8  Print Options  menu (continued)
First level Second level Values
  Y Dimension
  Use Inches
Use Millimeters
Output Bin
Sides  1-sided*
2-sided
2-Sided Format  Book-style*
Flip-style
Enable Edge-To-Edge Override  Enabled
Disabled*
Display Settings menu
To display : At the product control panel, select the  Administration menu, and then select the  Display
Settings  menu.
In the following table, asterisks (*)  indicate the factory default setting.
Table 2-9  Display Settings  menu
First...

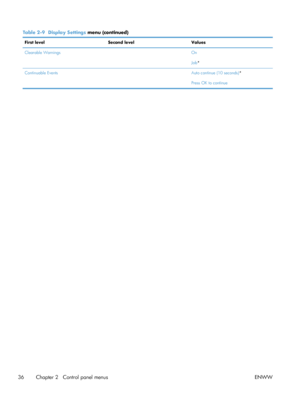

Page 56

Table 2-9  Display Settings  menu (continued)
First level Second level Values
Clearable Warnings  On
Job*
Continuable Events  Auto continue (10 seconds)*
Press OK to continue
36 Chapter 2   Control panel menus ENWW

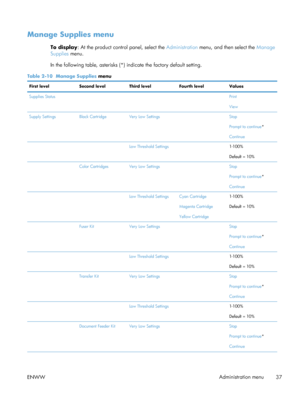

Page 57

Manage Supplies menu
To display: At the product control panel, select the  Administration menu, and then select the  Manage
Supplies  menu.
In the following table, asterisks (*)  indicate the factory default setting.
Table 2-10  Manage Supplies  menu
First level Second levelThird levelFourth level Values
Supplies Status    Print
View
Supply Settings Black CartridgeVery Low Settings  Stop
Prompt to continue*
Continue
   Low Threshold Settings 1-100%
Default = 10%
  Color CartridgesVery Low Settings  Stop...

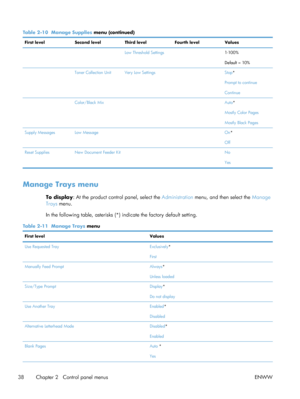

Page 58

Table 2-10  Manage Supplies  menu (continued)
First level Second levelThird levelFourth level Values
   Low Threshold Settings 1-100%
Default = 10%
  Toner Collection Unit Very Low Settings  Stop*
Prompt to continue
Continue
  Color/Black Mix  Auto *
Mostly Color Pages
Mostly Black Pages
Supply Messages Low Message   On *
Off
Reset Supplies New Document Feeder Kit  No
Yes
Manage Trays menu
To display: At the product control panel, select the  Administration menu, and then select the  Manage
Trays  menu....

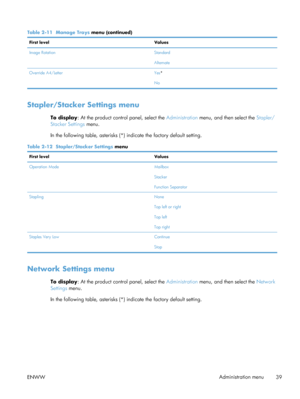

Page 59

Table 2-11  Manage Trays  menu (continued)
First level Values
Image Rotation Standard
Alternate
Override A4/Letter Yes*
No
Stapler/Stacker Settings menu
To display : At the product control panel, select the  Administration menu, and then select the  Stapler/
Stacker Settings  menu.
In the following table, asterisks (*)  indicate the factory default setting.
Table 2-12  Stapler/Stacker Settings  menu
First level Values
Operation Mode Mailbox
Stacker
Function Separator
Stapling None
Top left or right
Top...

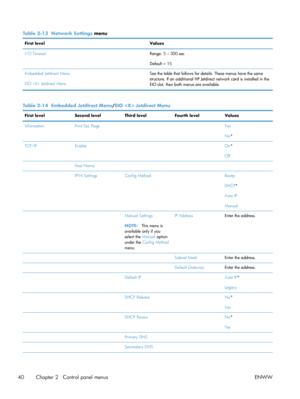

Page 60

Table 2-13  Network Settings  menu
First level Values
I/O Timeout Range: 5 – 300 sec
Default = 15
Embedded Jetdirect Menu
EIO  Jetdirect Menu See the table that follows for details. These menus have the same
structure. If an additional HP Jetdirect network card is installed in the
EIO slot, then both menus are available.
Table 2-14
  Embedded Jetdirect Menu /EIO  Jetdirect Menu
First level Second levelThird levelFourth level Values
Information Print Sec Page  Yes
No*
TCP/IP Enable  On *
Off
  Host Name...
