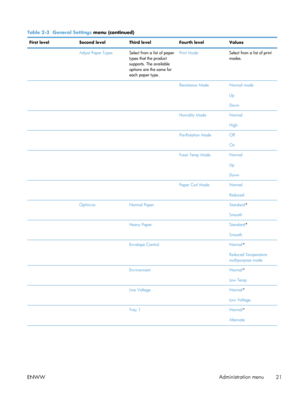

Page 41

Table 2-3  General Settings  menu (continued)
First level Second levelThird levelFourth level Values
  Adjust Paper TypesSelect from a list of paper
types that the product
supports. The available
options are the same for
each paper type.Print Mode
Select from a list of print
modes.
    Resistance ModeNormal mode
Up
Down
    Humidity ModeNormal
High
    Pre-Rotation Mode Off
On
    Fuser Temp Mode Normal
Up
Down
    Paper Curl Mode Normal
Reduced
  OptimizeNormal Paper  Standard*
Smooth
   Heavy Paper...

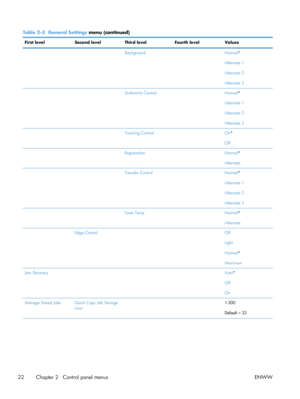

Page 42

Table 2-3  General Settings  menu (continued)
First level Second levelThird levelFourth level Values
   Background Normal*
Alternate 1
Alternate 2
Alternate 3
   Uniformity Control Normal*
Alternate 1
Alternate 2
Alternate 3
   Tracking Control On*
Off
   Registration Normal*
Alternate
   Transfer Control Normal*
Alternate 1
Alternate 2
Alternate 3
   Fuser Temp Normal*
Alternate
  Edge Control  Off
Light
Normal*
Maximum
Jam Recovery    Auto *
Off
On
Manage Stored Jobs Quick Copy Job Storage Limit...

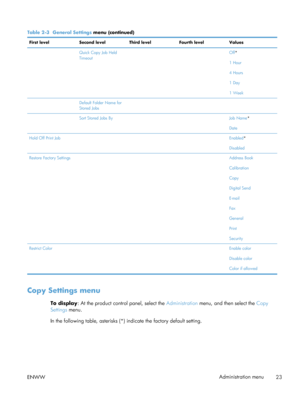

Page 43

Table 2-3  General Settings  menu (continued)
First level Second levelThird levelFourth level Values
  Quick Copy Job Held
Timeout  Off
*
1 Hour
4 Hours
1 Day
1 Week
  Default Folder Name for
Stored Jobs
  Sort Stored Jobs By  Job Name *
Date
Hold Off Print Job    Enabled *
Disabled
Restore Factory Settings    Address Book
Calibration
Copy
Digital Send
E-mail
Fax
General
Print
Security
Restrict Color    Enable color
Disable color
Color if allowed
Copy Settings menu
To display: At the product control...

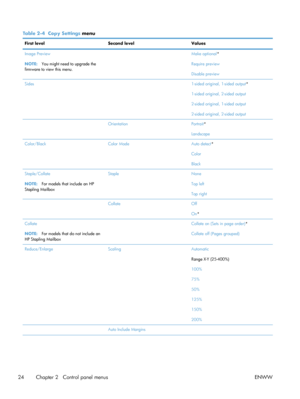

Page 44

Table 2-4  Copy Settings  menu
First level Second level Values
Image Preview
NOTE: You might need to upgrade the
firmware to view this menu.
Make optional*
Require preview
Disable preview
Sides  1-sided original, 1-sided output*
1-sided original, 2-sided output
2-sided original, 1-sided output
2-sided original, 2-sided output
  OrientationPortrait*
Landscape
Color/Black Color Mode Auto detect*
Color
Black
Staple/Collate
NOTE: For models that include an HP
Stapling Mailbox Staple
None
Top left
Top...

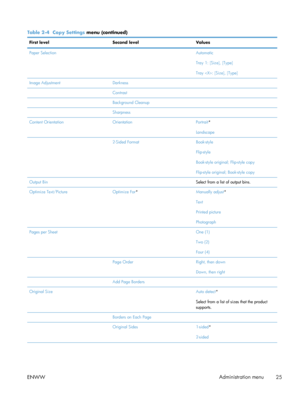

Page 45

Table 2-4  Copy Settings  menu (continued)
First level Second level Values
Paper Selection  Automatic
Tray 1: [Size], [Type]
Tray : [Size], [Type]
Image Adjustment Darkness
  Contrast
  Background Cleanup
  Sharpness
Content Orientation Orientation Portrait*
Landscape
  2-Sided FormatBook-style
Flip-style
Book-style original; Flip-style copy
Flip-style original; Book-style copy
Output Bin  Select from a list of output bins.
Optimize Text/Picture Optimize For*Manually adjust*
Text
Printed picture...

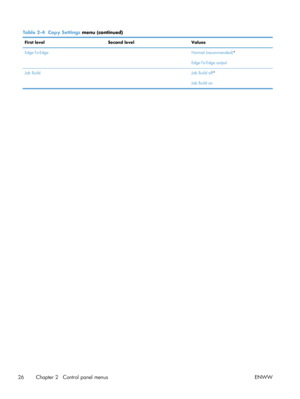

Page 46

Table 2-4  Copy Settings  menu (continued)
First level Second level Values
Edge-To-Edge  Normal (recommended)*
Edge-To-Edge output
Job Build  Job Build off*
Job Build on
26 Chapter 2   Control panel menus ENWW


Page 47

Scan/Digital Send Settings menu
To display: At the product control panel, select the  Administration menu, and then select the  Scan/
Digital Send Settings  menu.
In the following table, asterisks (*)  indicate the factory default setting.
Table 2-5  Scan/Digital Send Settings  menu
First levelSecond levelThird levelFourth level Values
E-mail Settings
Default Save to Network
Folder Options
Default Save to USB
Options
NOTE: The same
options are available for
each of these features,
except where noted....

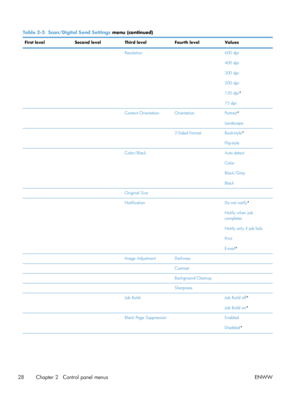

Page 48

Table 2-5  Scan/Digital Send Settings  menu (continued)
First levelSecond levelThird levelFourth level Values
   Resolution 600 dpi
400 dpi
300 dpi
200 dpi
150 dpi*
75 dpi
   Content Orientation OrientationPortrait*
Landscape
    2-Sided FormatBook-style*
Flip-style
   Color/Black Auto detect
Color
Black/Gray
Black
   Original Size
   Notification Do not notify*
Notify when job
completes
Notify only if job fails
Print
E-mail*
   Image Adjustment Darkness
    Contrast
    Background Cleanup...

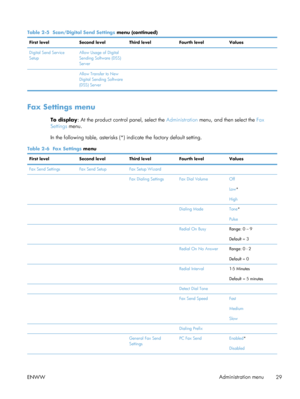

Page 49

Table 2-5  Scan/Digital Send Settings  menu (continued)
First levelSecond levelThird levelFourth level Values
Digital Send Service
Setup Allow Usage of Digital
Sending Software (DSS)
Server
  Allow Transfer to New
Digital Sending Software
(DSS) Server
Fax Settings menu
To display
: At the product control panel, select the  Administration menu, and then select the  Fax
Settings  menu.
In the following table, asterisks (*)  indicate the factory default setting.
Table 2-6  Fax Settings  menu
First...

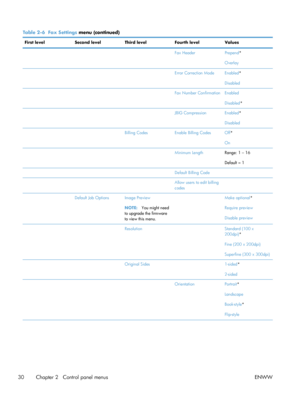

Page 50

Table 2-6  Fax Settings  menu (continued)
First level Second levelThird levelFourth level Values
    Fax HeaderPrepend*
Overlay
    Error Correction Mode Enabled*
Disabled
    Fax Number Confirmation Enabled
Disabled*
    JBIG Compression Enabled*
Disabled
   Billing CodesEnable Billing Codes Off *
On
    Minimum LengthRange: 1 – 16
Default = 1
    Default Billing Code
    Allow users to edit billing
codes
  Default Job Options Image Preview
NOTE:You might need
to upgrade the firmware
to view this...
