Acer Ferrari 1200 Service Guide

Chapter 391
17.Disconnect the cable from the card reader board.
18.Remove the three screws (D) securing the main board in place.
19.Carefully remove the main board.
StepSize (Quantity)ColorTo r q u e
1~3 M2.5 x L4 (3) Black 3.0 kgf-cm

92Chapter 3
Removing the CPU and VGA Heatsink Module
1.See “Removing the Battery Pack” on page 64.
2.See “Removing the SD dummy card” on page 64.
3.See “Removing the ExpressCard dummy card” on page 65.
4.See “Removing the Lower Cover” on page 65.
5.See “Removing the DIMM” on page 66.
6.See “Removing the WLAN Board Modules” on page 67.
7.See “Removing the Hard Disk Drive Module” on page 68.
8.See “Removing the Keyboard” on page 71.
9.See “Removing the Middle Cover” on page 72.
10.See “Removing the LCD...

Chapter 393
15.Carefully lift up the heatsink module.
Removing the CPU
1.See “Removing the Battery Pack” on page 64.
2.See “Removing the SD dummy card” on page 64.
3.See “Removing the ExpressCard dummy card” on page 65.
4.See “Removing the Lower Cover” on page 65.
5.See “Removing the DIMM” on page 66.
6.See “Removing the WLAN Board Modules” on page 67.
7.See “Removing the Hard Disk Drive Module” on page 68.
8.See “Removing the Keyboard” on page 71.
9.See “Removing the Middle Cover” on page 72.
10.See...

94Chapter 3
15.Lift up carefully to remove the CPU.
NOTE: When installing the CPU, make sure to install the CPU with PIN 1 at the corner as shown.
Removing the Modem Board
1.See “Removing the Battery Pack” on page 64.
2.See “Removing the SD dummy card” on page 64.
3.See “Removing the ExpressCard dummy card” on page 65.
4.See “Removing the Lower Cover” on page 65.
5.See “Removing the DIMM” on page 66.
6.See “Removing the WLAN Board Modules” on page 67.
7.See “Removing the Hard Disk Drive Module” on...

Chapter 395
13.Remove the one screw (E) securing the modem card.
14.Remove the modem board from the main board.
Removing the Speaker Modules
1.See “Removing the Battery Pack” on page 64.
2.See “Removing the SD dummy card” on page 64.
3.See “Removing the ExpressCard dummy card” on page 65.
4.See “Removing the Lower Cover” on page 65.
5.See “Removing the DIMM” on page 66.
6.See “Removing the WLAN Board Modules” on page 67.
7.See “Removing the Hard Disk Drive Module” on page 68.
8.See “Removing the...

96Chapter 3
12.See “Removing the Main Board” on page 89.
13.Remove any adhesive tape securing the speaker cables.
14.Remove the two screws (F) holding the left and right speakers.
StepSize (Quantity)ColorTo r q u e
1~2 M2 x L4 (2) Silver 1.6 kgf-cm

Chapter 397
15.Remove the left and right speakers from the upper case.
Removing the Card Reader Board
1.See “Removing the Battery Pack” on page 64.
2.See “Removing the SD dummy card” on page 64.
3.See “Removing the ExpressCard dummy card” on page 65.
4.See “Removing the Lower Cover” on page 65.
5.See “Removing the DIMM” on page 66.
6.See “Removing the WLAN Board Modules” on page 67.
7.See “Removing the Hard Disk Drive Module” on page 68.
8.See “Removing the Keyboard” on page 71.
9.See “Removing the...

98Chapter 3

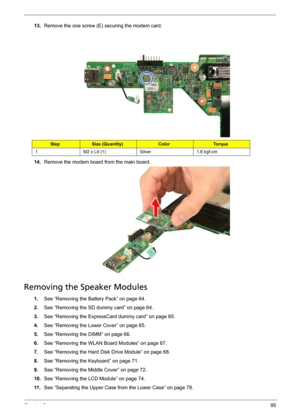

13.Remove the one screw (E) securing the bracket to the card reader board.
14.Remove the bracket from the card reader board.
15.Remove the card reader board from the lower case.
StepSize (Quantity)ColorTo r q u e
1 M2 x L4 (1) Silver 1.6 kgf-cm

Chapter 399
 LCD Module Disassembly Process
LCD Module Disassembly Flowchart
Screw List
ItemScrewColorPart No.
H M2 x L4 Black 86.00G58.725
I M2 x L4 Silver 86.00G92.524
J M2 x L3 Silver 86.00C07.220
LCD MODULE
LCD BEZEL
Hx6
LCD ASSEMBLY
LEFT LCD
BRACKETJx2RIGHT LCD
BRACKETJx2LCD FPC
CABLE
LCD BACK PANEL
ANTENNAS
LCD MODULE DISASSEMBLY
Ix6
VGA
CAMERA

100Chapter 3
Removing the LCD Bezel
1.See “Removing the Battery Pack” on page 64.
2.See “Removing the Lower Cover” on page 65.
3.See “Removing the WLAN Board Modules” on page 67.
4.See “Removing the Keyboard” on page 71.
5.See “Removing the Middle Cover” on page 72.
6.See “Removing the LCD Module” on page 74.
7.Remove the four screw covers and the two rubber cover.
8.Remove the six screws (H) on the LCD module as shown.
StepSize (Quantity)ColorTo r q u e
1~6 M2 x L4 (6) Black 1.6 kgf-cm
