Table D-1  Scan codes (set 1 and set 2) (2/4)
Code set 1 Code set 2 Cap
No.  Keytop
Make Break Make Break  Note
29
  | 2B AB  5D  F0 5D  *5
30 Caps Lock  3A BA  58 F0 58
31 A  1E 9E 1C  F0 1C
32 S  1F 9F 1B  F0 1B
33  D 20 A0 23  F0 23
34 F  21 A1  2B  F0 2B
35  G 22 A2 34  F0 34
36  H 23 A3 33  F0 33
37 J  24 A4  3B  F0 3B  *2
38  K 25 A5 42  F0 42  *2
39 L  26 A6  4B  F0 4B  *2
40  ;  : 27 A7  4C  F0 4C  *2
41  ‘  “ 28 A8  52 F0 52
43 Enter  1C 9C  5A F0 5A  *3
44...

Table D-1  Scan codes (set 1 and set 2) (3/4)
Code set 1 Code set 2 Cap
No.  Keytop
Make Break Make Break  Note
58 Ctrl(L)
1D 9D  14 F0 14 *3
60  Alt (L)  38 B8 11  F0 11 *3
61 Space  39 B9 29  F0 29
62 ALT (R)  E0 38  E0 B8 E0 11  E0 F0 11
64 Ctrl(R)  E0 1D  E0 9D E0 14  E0 F0 14
75  Ins E0 52  E0 D2 E0 70  E0 F0 70  *1
76  Del E0 53  E0 D3 E0 71  E0 F0 71  *1
79
E0 4B E0 CB E0 6B E0 F0 6B *1
80
Home  E0 47  E0 C7 E0 6C E0 F0 6C  *1
81  End E0 4F  E0 CF E0 69  E0 F0 69  *1
83...

Table D-1  Scan codes (set 1 and set 2) (4/4)
Code set 1 Code set 2 Cap
No.  Keytop
Make Break Make Break  Note
122
F11 57 D7  78 F0 78 *3
123 F12 58 D8  07 F0 07 *3
124 PrintSc  *6 *6 *6 *6   *6
126 Pause  *7 *7 *7 *7   *7
X Fn — — — —   *4
X Win E0  5B  E0 DB E0 1FE0  F0  1F
x  App E0  5D  E0 DD E0 2FE0  F0  2F
Notes:
1.  *  Scan codes differ by mode.
2.  *  Scan codes differ by overlay function.
3.  *  Combination with the Fn key gives different codes.
4.  * The  Fn key does not...

Table D-2  Scan codes with left Shift key
Code set 1 Code set 2 Cap
No.  Key
top  Make Break Make Break
55 / E0 AA  E0  35 E0 B5E02A E0 F0 12E0 4A E0 F0 4A  E0 12
75 INS  E0 AA  E0  52 E0 D2 E02A E0 F0 12E0 70E0  F0  70 E0  12
76 DEL  E0 AA  E0  53 E0 D3 E02A E0 F0 12E0 71E0  F0  71 E0  12
79
E0 AA E0 4B E0CBE02AE0F012E06BE0 F0 6B E0 12
80
Home  E0 AA  E0  47 E0 C7E02A E0 F0 12E0 6C E0 F0 6C  E0 12
81  End  E0 AA  E0 4F E0 CFE02A E0 F0 12E0 69E0  F0  69 E0  12
83
E0 AA E0 48...

Table D-3  Scan codes in Numlock mode
Code set 1 Code set 2 Cap
No.  Key
top  Make Break Make Break
75 INS E0 2A E0  52 E0 D2 E0 AAE012  E0 70E0 F0  70 E0  F012
76  DEL  E0 2A E0  53 E0 D3 E0 AAE012  E0 71E0 F0  71 E0  F012
79
E0 2A E0 4B E0CBE0AAE012 E06BE0F0 6B E0 F012
80
Home  E0 2A E0  47 E0 C7 E0 AAE012  E0 6C E0F0 6C  E0 F012
81  End  E0 2A E0  4F E0CF E0 AAE012  E0 69E0 F0  69 E0  F012
83
E0 2A E0 48 E0C8E0AAE012 E075E0F0 75 E0 F012
84
E0 2A E0 50 E0D0E0AAE012 E072E0F0 72 E0 F012
85...

Table D-5  Scan codes in overlay mode
Code set 1 Code set 2 Cap
No.  Keytop
Make Break Make Break
09 8 (8) 48  C8 75 F0 75
10 9  (9) 49  C9 7D F0 7D
11 0  (*) 37  B7 7C F0 7C
23 U  (4) 4B  CB 6B F0 6B
24 I  (5) 4C  CC 73 F0 73
25 O  (6) 4D  CD 74 F0 74
26 P  (–) 4A  CA 7B F0 7B
37 J  (1) 4F  CF 69 F0 69
38 K  (2) 50  D0 72 F0 72
39 L  (3) 51  D1 7A F0 7A
40 ;  (+) 4E  CE 79 F0 79
52 M  (0) 52  D2 70 F0 70
54 .  (.) 53  D3 71 F0 71
55 /  (/) E0 35  E0  B5 E0 4A  E0  F0 4A

Table D-6...

D-8                                     [CONFIDENTIAL]        Low Cost Los Angeles L450/L450D Maintenance Manual
Table D-7  No.126 key scan code
Code set 1  Code set 2 Key top Shift
Make Make
Pause Common  E1 1D  45 E1  9D C5E1  14 77 E1  F0 14 F0  77
  Ctrl  E0 46  E0 C6    E0 7E E0 F0  7E
*:  This key generates only make codes.



Appendix E  Key Layout
1.  United Status (US) Keyboard

Figure US keyboard


2.   Traditional Chinese (CH) Keyboard

Figure CH keyboard



3.    Thai (TI) Keyboard

Figure TI keyboard


4.  Korean (KO) Keyboard

Figure KO keyboard

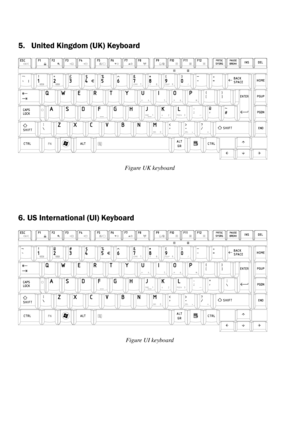

5.   United Kingdom (UK) Keyboard

Figure UK keyboard


6.  US International (UI) Keyboard

Figure UI keyboard
