Page 51
51Specifications Others Preset signals Memory No.Preset signal fH (kHz) fV (Hz) Sync 1 Video 60 Hz 60 Hz 15.734 59.940 – 2 Video 50 Hz 50 Hz 15.625 50.000 – 3 480/60i 480/60i 15.734 59.940 S on G/Y 4 575/50i 575/50i 15.625 50.000 S on G/Y 5 480/60p 480/60p (Progressive component NTSC)31.470 60.000 S on G/Y 6 575/50p 575/50p (Progressive component PAL)31.250 50.000 S on G/Y 7 1080/60i 1035/60i, 1080/60i 33.750 60.000 S on G/Y 8 1080/50i 1080/50i 28.130 50.000 S on G/Y 10 720/60p 720/60p 45.000 60.000...
Page 52
52Specifications The receivable digital signals are preset signals of Memory No. 3 to 11, 26, 32, 37, 45, 47, 50, 55 and 56 (VPL-EW7 only). When a signal other than the preset signals shown above is input, the picture may not be displayed properly. When an SXGA+ signal is input, the image may extend beyond the edges of the screen. In this case, input a signal with no black edges around the image, and disconnect and reconnect the cable or select the input signal by pressing the INPUT key. If the...
Page 53

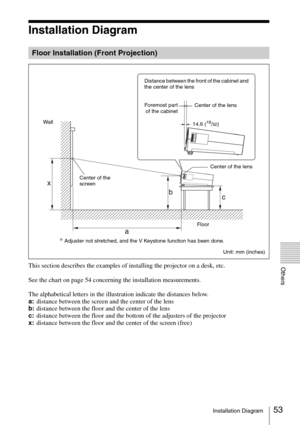

53Installation Diagram Others Installation Diagram This section describes the examples of installing the projector on a desk, etc. See the chart on page 54 concerning the installation measurements. The alphabetical letters in the illustration indicate the distances below. a:distance between the screen and the center of the lens b:distance between the floor and the center of the lens c:distance between the floor and the bottom of the adjusters of the projector x:distance between the floor and the center...
Page 54
54Installation Diagram
VPL-EX70/EX7
a (N) = {(PS × 29.376) × 1.03} – 31.7
a (M) = {(PS × 35.202) × 0.97} – 31.7
b = x – {PS × 5.055 + (a + 31.7) × 0.1405 – 4.5}
c = x – {PS × 5.055+ (a + 31.7) × 0.1405 – 4.5 + 90.5}
VPL-EW7
(When “Aspect” on the Signal menu is set to “Full 2”)
a (N) = {(PS × 31.076) × 1.03} – 31.7
a (M) = {(PS × 37.252) × 0.97} – 31.7
b = x – {PS × 4.465 + (a + 31.7) × 0.1405 – 4.5}
c = x
– {PS × 4.465 + (a + 31.7) × 0.1405 – 4.5 + 90.5}
The projected image size is the one when...
Page 55
55Installation Diagram Others This section describes the examples for installing the projector on the ceiling. When installing the projector on the ceiling, use a Projector Suspension Support recommended by Sony. For ceiling installation, ask for qualified Sony personnel. See the chart on page 56 concerning the installation measurements. The alphabetical letters in the illustrations indicate the distances below. a’:distance between the hole (front) for mounting a projector suspension support on bottom...
Page 56
56Installation Diagram
VPL-EX70/EX7
a’(N) = {(PS × 29.415) × 1.03} - 32.0 + 16.4
a’(M) = {(PS × 35.283) × 0.97} - 32.0 + 16.4
x = b + {PS × 5.073 + (a’+ 32.0 - 16.4) × 0.07344 - 2.3 + 72.5}
VPL-EW7
(When “Aspect” on the Signal menu is set to “Full 2”)
a’(N) = {(PS × 31.147) × 1.03} – 32.0 + 16.4
a’(M) = {(PS × 37.367) × 0.97} – 32.0 + 16.4
x = b + {PS × 4.481 + (a’+ 32.0 – 16.4) × 0.07344 – 2.3 + 72.5}
The projected image size is the one when “Aspect” on the Signal menu is set to “Full 2”. When...
Page 57
57Dimensions Others Dimensions Front Unit: mm (inches) Side Unit: mm (inches) Center of the projector 109 (4 3/8) 314 (12 3/8) 69.5 (2 5/8) 72.2 (2 7/8) 269 (10 5/8) 109 (4 3/8)
Page 58
58Dimensions To p Unit: mm (inches) 314 (12 3/8) 269 (10 5/8)
Page 59
59Index Others Index A Adjust Picture .......................................... 30 Air filter ................................................... 43 Aspect ................................................ 32, 33 Auto Input Search .................................... 34 B Background ............................................. 37 Batteries ................................................... 17 Brightness ................................................ 30 C CC Display...
Page 60
60Index Reset resetting an item .................................. 29 RS-232C connector ................................. 50 S Security bar ............................................. 12 Security Lock .................................... 25, 37 Security lock ........................................... 12 Sharpness ................................................ 30 Shift ......................................................... 32 Smart APA .............................................. 34...
