21Projecting
Projecting the Picture
 When you connect the projector to a video
GBR output connector, select “Video GBR”
or when you connect the projector to a
component output connector, select
“Component” with the “Input-A Signal Sel.”
setting on the SET SETTING menu.
Projecting
1Plug the AC power cord into a wall
outlet, and connect all equipment, then
remove the lens cover.
INPUT
MENUNETWORK USB
RESET
AUTO FOCUS
D ZOOM
LENS
ENTER
VOLUME
KEYSTONE/TILT
FREEZEPIC MUTINGAUDIO MUTING
APA
1
8 4 1,2...

22Projecting
The ?/1 key lights in red and the
projector goes into standby mode.
2Press the ?/1 key.
The ?/1 key lights after flashing in
green. (The projector cannot be used
while the ?/1 key is flashing.)
3Turn on the equipment connected to
the projector.
4Press the INPUT key to select the
input source.
Each time you press the key, the input
signal switches as follows:
Smart APA (Auto Pixel Alignment)
adjusts the picture of the connected
equipment so that it is projected clearly.
 If “Auto...

23Turning Off the Power
Projecting the Picture
 Do not push hard on the top of the
projector or do not drag it hard with the
adjuster out. It may cause malfunction.
7Adjust the trapezoidal distortion
( ) of the picture. (VPL-EX7
only)
Press the KEYSTONE key on the
Remote Commander to display the
adjustment menu and adjust the tilt using
the v/V/b/B keys.
For VPL-EX70/EW7
 When you adjust the tilt of the projector
with the adjuster, the V keystone
adjustment is performed at the same
time. If you...

24Selecting the Menu Language
BConvenient Functions
Selecting the Menu
Language
You can select one of several languages for
displaying the menu and other on-screen
displays. The factory setting is English.
To change the menu language, proceed as
follows:
1Plug the AC power cord into a wall
outlet.
2Press the ?/1 key to turn on the
projector.
3Press the MENU key.
The menu appears.
INPUT
MENUNETWORK USB
RESET
AUTO FOCUS
D ZOOM
LENS
ENTER
VOLUME
KEYSTONE/TILT
FREEZEPIC MUTINGAUDIO MUTING
APA
1 2...

25Security Lock
Convenient Functions
The menu currently selected is shown as
a yellow button.
4Press the v or V key to select the
MENU SETTING menu, then press
the B or ENTER key.
The selected menu appears.
5Press the v or V key to select
“Language,” then press the B or
ENTER key.

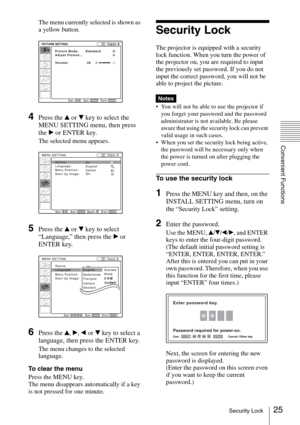

6Press the v, B, b or V key to select a
language, then press the ENTER key.
The menu changes to the selected
language.
To clear the menu
Press the MENU key.
The menu disappears automatically if a key
is not pressed for...

26Security Lock
Enter the password on this screen.
3Enter the password again to confirm.
When the following message is
displayed, the setting for security lock is
completed.
If “Invalid Password!” is displayed on
the screen, perform this procedure again
from step 1.
4Turn the main power off and
disconnect the AC power cord.
The security lock is set to on, then it
becomes effective. The screen used for
entering the password is displayed when
the power is turned on the next time.
Security...

27Other Functions
Convenient Functions
Other Functions
If you will be using a circuit breaker to turn
the power for the entire system on and off,
set the direct power on function to “On.” You
can turn the power on/off without pressing
the power key on the projector.
If you are leaving the conference room
immediately, turn the projector off, and then,
you can unplug the AC power cord.
When you restart the power immediately after
turning it off using the Off & Go function, the
power may not come...

28Using a MENU
BAdjustments and Settings Using a Menu
Using a MENU
The projector is equipped with an on-screen
menu for making various adjustments and
settings.
Display items
Input signal indicator
Shows the selected input channel.   is
displayed when no signal is input. You can
hide this indicator using “Status” on the
MENU SETTING menu.
Input signal setting indicator
For Input-A: Shows “Auto” or “Input-A
Signal Sel.” setting on the SET
SETTING menu.
For Video/S-Video input: Shows “Auto” or
the...

29Using a MENU
Adjustments and Settings Using a Menu
To clear the menu
Press the MENU key.
The menu disappears automatically if a key
is not pressed for one minute.
To reset items that have been
adjusted
Select the item that you want to reset, and
then press the RESET key on the Remote
Commander.
“Complete!” appears on the screen and the
setting of the item that you have selected is
reset to its factory preset value.
Items that can be reset are:
 “Contrast,” “Brightness,” “Color,” “Hue”
and...

30The PICTURE SETTING Menu
The PICTURE SETTING Menu
The PICTURE SETTING menu is used for adjusting the picture or volume.
Items that can be adjusted or set depend on the kind of input signals.
For details, see “Input signals and adjustable/setting items” on page 40.
Picture Mode  Standard
Adjust Picture...
Volume: 30
PICTURE SETTINGInput APICTURE SETTING
Contrast: 80
Brightness: 50
Gamma Mode:  Graphics
Color Temp.:  HighADJUST PICTURE               StandardInput-A
Setting items Functions Initial...
