 OSD Mode


The OSD mode makes the adjustment of settings on all monitors easy. When selected , each tab on top of the control
window displays the general descriptions of the sub-menu items for adjustment.
When selected, each tab displays a list of menus. For quick adjustment of the monitor settings, the OSD mode allows
easy and convenient access to all tabs and...


 Picture Tab Definition
Allows the user to adjust the screen settings to the desired values.



 Color Tab Definition
Adjusts the warmth of the monitor background or image color.



Brightness Contrast Resolution MagicBright n m
l
k
j
in
m
l
k
jn
m
l
k
jn
m
l
k
j
Brightness

Makes the entire screen brighter or darker. The detailed data of the images in the dark areas can be lost
if the brightness is not adjusted to the proper level. Adjust the brightness for best viewing...


Color Tone Color Control Calibration MagicColor Gamma n m
l
k
j
in
m
l
k
jn
m
l
k
jn
m
l
k
jn
m
l
k
j

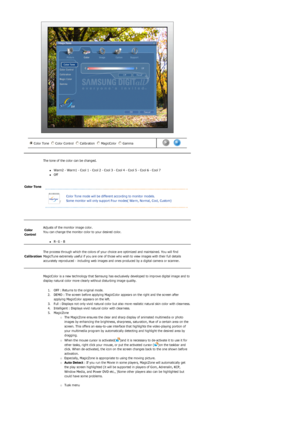

Color Tone

The tone of the color can be changed.
zWarm2 - Warm1 - Cool 1 - Cool 2 - Cool 3 - Cool 4 - Cool 5 - Cool 6 - Cool 7  zOff




Color Tone mode will be different according to monitor models.
Some monitor will only support Four modes( Warm, Normal, Cool, Custom)
Color
Control

Adjusts of the monitor image color.
You can change the monitor color to your desired color.
zR-...



 Image Tab Definition
Adjusts the Fine , Coarse and Position values.
MagicColor

HUE Adjust the tint of the color.
Saturation Adjusts the color saturation.
Brightness Adjusts the Brightness.
Sharpness Adjusts the difference between the lightest and darkest areas of the
display.
Zone Off Turn off the zone that you have captured.
Reset Returns to the the default setting that vendor has set.

zDepending on the monitor models Color Control, Sharpness, Contrast,
Color Tone will not be...




 Option Tab Definition
You can configure MagicTune using the following options.

Image Setup Position Sharpness n m
l
k
j
in
m
l
k
jn
m
l
k
j
Image Setup
 zFine : Removes noise such as horizontal stripes.
If the noise persists even after Fine tuning, repeat it after adjusting the frequency
(clock speed).
zCoarse : Removes noise such as vertical stripes.
Coarse adjustment may move the screen image area.
You may relocate it to the center using the Horizontal Control menu.
zAuto...

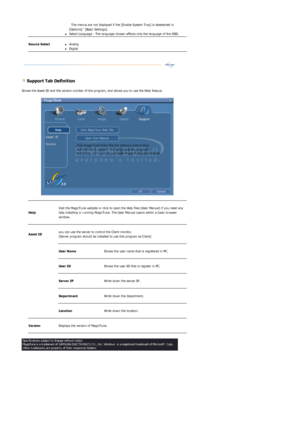

 Support Tab Definition
Shows the Asset ID and the version number of the program, and allows you to use the Help feature.

  The menus are not displayed if the [Enable System Tray] is deselected in
[Options]  [Basic Settings].
zSelect Language - The language chosen affects only the language of the OSD.
Source Select  zAnalog  zDigital


Help

Visit the MagicTune website or click to open the Help files (User Manual) if you need any
help installing or running MagicTune. The User Manual...
