Samsung Galaxy S7 Edge User Manual

16 Noti�cation Panel







Settings
View all
Quick settings
Screen brightness
  Quick connect

Noti�cation card
Noti�cation settings  Clear noti�cations
Noti�cation Panel

Noti�cation icons on the Status bar display calendar events, device
status, and more. For details, open the Noti�cation panel.
• Settings: Display the Settings screen.
• View all: See all available Quick settings.
• Clear noti�cations: Clear...

17 Noti�cation Panel





















View the Noti�cation Panel	 Quick Connect
You can access the Noti�cation panel from any
Home screen. Search for nearby devices automatically to connect
to them quickly and easily.
1.	  Dr

ag the Status bar down to display the
Noti�cation panel.
2.  Swipe down the list to see noti�cation details.
• To open an item, tap it.
• To clear a single noti�cation, drag the...

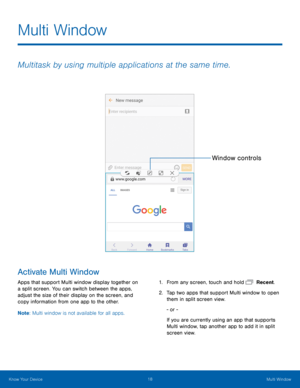

18 Multi Window



Multi Window

Multitask by using multiple applications at the same time.

Activate Multi Window
Apps that support Multi window display together on
a split screen. You can switch between the apps,
adjust the size of their display on the screen, and
copy information from one app to the other.
Note: Multi window is not available for all apps.
Window controls
1. From any screen, touch and hold   Recent.
2.	 Tap two apps that support Multi window to open
them in split screen...






You can also launch recently used apps directly into
Multi window view:
1. Tap   Recent.
• Recently used apps that support Multi window
have a   Multi window icon in their title bar.
2. Tap   Multi window in the title bar to launch an
application in split screen view.
• Other recently used apps that support
Multi window display below the launched app.
3.  Tap an app icon to add it to the split screen view.
Note : Only applications that support Multi window
have the Multi window icon....

20 Edge Screen









Edge Screen
The Edge screen provides
a variety of useful tools for
noti�cations, information feeds,
and timekeeping.
Edge Panels
Edge panels can be used to access apps, tasks,
and contacts, as well as view news, sports, and
other information on the Edge screen.
To view Edge panels:
►	  When the screen is turned on, swipe the Edge
panel handle from the edge of the screen to the
center. Keep swiping to view other panels.
To con�gure Edge...

21 Edge Screen













To con�gure Tasks edge:
1.	  From any screen, open the Edge screen, swipe
until the Tasks edge panel is displayed.
2.  Tap
 Add to add other tasks to the

Tasks edge.

• To add a shortcut to the Tasks edge, �nd it on
the left side of the screen and drag it on to an
available space on a column on the right.
• To change the order of the tasks on the Edge
panel, drag each task to the desired location.
• To remove a task, tap   Remove....

Predictive text
Options


E n t e r  Te x t

Text can be entered using a
keyboard or by speaking.
Use the Samsung Keyboard
Enter text using a QWERTY keyboard.
Special Keys
Symbol: Tap to insert symbols.
Touch and hold Options for the following:  Voice input: Enter text using Google
Voice
™ typing.
Clipboard: Access the clipboard.
Emoticon: Insert an emoticon at the
cursor position.
Keyboard settings: Access keyboard
settings.
Note : Available options depend on the app in use.
Not...

23 Enter Text
Settings	 Delete text




Use Google Voice Typing
Instead of typing, enter text by speaking.
To enable Google voice typing:
1. Tap   Voice input on the Samsung keyboard.
• You may need to touch and hold Options
(left of the Space bar) to �nd it.
2.  Speak your text.
Note : Tap
 Settings > Languages to download
additional languages for use with Google voice typing.
Con�gure Google Voice Typing
To customize Google voice typing:
1.  From a Home screen,...

24 Emergency Mode
























Emergency Mode

Emergency mode conserves
your device’s remaining power
when you are in an emergency
situation.
Emergency mode saves battery power by:
• Changing the color of the screen to grayscale.
• Restricting application usage to only essential
applications and those you select.
• Turning o� Mobile data when the screen is o�.
• Turning o� connectivity features such as Wi-Fi and
Bluetooth®....

Calling
Make telephone calls
using a variety of calling
features and services.
