Mitel Sx 200 El/ml Technicians Handbook

Maintenance Commands
231
Maintenance
Commands
Basic Commands
Maintenance port characteristics are: 8 bits/1 start/1 stop/no parity.
Baud rates are: 300, 600, 1200, 2400, 4800, 9600, or 19,200.
Maintenance commands do not require the ESC sequence used with
CDE commands.
Entering Command Sequences
Maintenance commands are entered by selecting a softkey from a
menu, and then selecting another softkey from the subsequent menu.
Start all maintenance sequences from the Maintenance screen.
Press the...

Technician’s Handbook
232
Logging Out
1. Press QUIT (softkey 6).
2. Press key 6 (or wait for logout timer to time out).
Displaying the Card Configuration
From CDE mode:
1. View Form 01, System Configuration
From Maintenance mode:
1. Press:
REPORTS
SHOW
CONFIG
ALL
Showing the System Identity
From Maintenance mode:
1. Press:
SYSTEM
SHOW
IDENTITY
ENTER

Maintenance Commands
233
Maintenance
Commands
Log Commands
* TRACE_INFO is a diagnostic tool used only by MITEL personnel.Table 54:  Log Level Functions
COMMANDPARAMETERQUALIFIER
1-SET 4-AUTOPRINT 1-ON
  2-OFF
2-READ 1-NEWEST [number]
 2-OLDEST [number]
 4-ALL
8-LOGS_TEXT*
 9-TRACE_INFO*
3-PRINT 1-NEWEST [number]
 2-OLDEST [number]
4-ALL
8-LOGS_TEXT*
4-DELETE 1-NEWEST [number]
2-OLDEST [number]
4-ALL
9-TRACE_INFO*
8-STOP

Technician’s Handbook
234

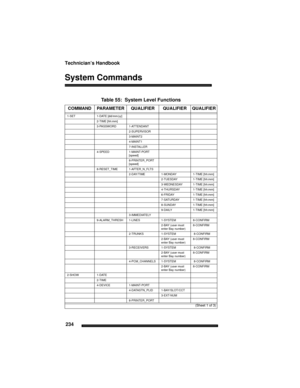

System Commands
Table 55:  System Level Functions
COMMANDPARAMETERQUALIFIERQUALIFIERQUALIFIER
1-SET1-DATE [dd/mm/yy]
 2-TIME [hh:mm]
 3-PASSWORD1-ATTENDANT
  2-SUPERVISOR
  3-MAINT2
  4-MAINT1
  7-INSTALLER
 4-SPEED1-MAINT-PORT
[speed]
  8-PRINTER_PORT
[speed]
 8-RESET_TIME1-AFTER_N_FLTS
  2-DAY/TIME 1-MONDAY 1-TIME [hh:mm]
   2-TUESDAY 1-TIME [hh:mm]
   3-WEDNESDAY 1-TIME [hh:mm]
   4-THURSDAY 1-TIME [hh:mm]
   6-FRIDAY 1-TIME [hh:mm]...

Maintenance Commands
235
Maintenance
Commands
 7-LN_APP_COUNT
8-RESET-TIME
9-IDENTITY
3-DATABASE1-BACKUP
2-RESTORE
3-SW_RESTORE
4-SHOW_PARAM
6-TRAP_BACKUP*
7-SW-VERIFY
8-LOGS_BACKUP
9-SET_PARAM1-DEFAULT
2-RETRIES
3-BLOCK_CHECK
4-RECEIVE1-EOL_CHAR
2-8_BIT_CHAR
3-CTRL_CHAR
4-REPEAT_CHAR
6-PAD_CHAR
7-PACKET_SIZE
8-RX_TIMEOUT
9-NUM_PAD_CHAR
4-MONITOR1-SMDR
2-DATA_SMDR
 3-DIAGNOSTICS1-STEP1-STEP
  2-SLOW_SCAN
 3-FREE_RUN
2-SLOW_SCAN1-STEP
2-SLOW_SCAN
3-FREE_RUN 1-STEP
3-FREE_RUN...

Technician’s Handbook
236
2-SET_TYPE1-SS4150
2-SS4025
3-SS4090
3-EXT_NUM
4-ALL
2-DOWNLOAD1-BAY/SLOT/CCT
2-SET_TYPE1-SS4150
2-SS4025
3-SS4090
3-EXT_NUM
4-ALL3 ABORT_DOWNLOAD1-BAY/SLOT/CCT
2-SET_TYPE1-SS4150
2-SS4025
3-SS4090
3-EXT_NUM
4-ALL
4-FORCE_DOWNLOAD1-BAY/SLOT/CCT
2-SET_TYPE1-SS4150
2-SS4025
3-SS4090
3-EXT_NUM
4-ALL
Table 55:  System Level Functions  (Continued)
COMMANDPARAMETERQUALIFIERQUALIFIERQUALIFIER
 (Sheet 3 of 3)

Maintenance Commands
237
Maintenance
Commands
Report Commands
Table 56:  Report Level Functions
COMMANDPARAMETERQUALIFIERQUALIFIERQUALIFIER
2-SHOW1-CONFIG 1-BAY/SLOT/CCT
  3-EXT-NUM
[number]
  4-ALL
 2-ALARMS2-DEVICE TYPE1-LINES
   2-TRUNKS
   3-RECEIVERS
   4-PCM-CHANNELS
  4-ALL0-MORE
 3-STATUS1-BAY/SLOT/CCT DEVICE STATUSSee Note
  2-SWID1-SW_STATIONSee Note
   2-SW_RECEIVERSee Note
   3-SW_CONSOLESee Note
   4-SW_LINE See Note
   6-SW_DTMF_GENSee Note
   7-SW_SETSee Note...

Technician’s Handbook
238
NOTE:The following softkeys are presented when a SWID selection is made:
1-CP_DWA, 2-CP_DWA_MEM, 3-LINK_STATUS, 6-MT_DWA,
7-MT_DWA_MEM, 8-UP_1_PAGE, 9-DOWN_1_PAGE. Press CP_DWA to
view the device work area for the selected device.
   6-MT_DWA
   7-MT_DWA_MEM
   8-UP_1_PAGE
   9-DOWN_1_PAGE
7-DSP
 6-CHANNEL-MAP1-LOGICAL1-CHANNEL NUM
  2-PHYSICAL1-BAY_NUM
   2-LINK_NUMBER
 7-ERRORS2-DEVICE_TYPE1-SS3_SS4
   3-DIGITAL_SETS
   4-HDLC
   6-DATASETS
   7-CONSOLE...

Maintenance Commands
239
Maintenance
Commands
Diagnostic Commands
Table 57:  Diagnostic Level Functions
COMMANDSUBCOMMANDPARAMETERQUALIFIERQUALIFIER
1-TEST1-BAY/SLOT/CCT
 2-DEVICE_TYPE1-ONS
  2-LS/GS-TRUNK
  3-RECEIVERS
  4-JUNCTOR
  7-CONSOLE

  9-EM
  0-MORE_KEYS1-COV
   2-LINK/CHANNEL
   3-DID
   4-OPS
   6-DNIC
   7-PRINTER_PLID
   8-PRINTER_PORT
   9-T1_TRUNK
   0-MORE_KEYS
 3-EXT-NUM
2-CLR_FEATURE1-FORWARD 1-BAY/SLOT/CCT
   3-EXT_NUM...

Technician’s Handbook
240
    7-CONSOLE
    9-EM
    0-MORE_KEYS
    1-COV
    2-LINK/CHANNEL
    3-DID
    4-OPS
    6-DNIC
    9-T1_TRUNK
   3-EXT-NUM
0-MORE_KEYS1-RANGE_B_OUT
2-ENABLE-DIAG2-POWER-UP1-BAY/SLOT/CCT
   2-DEVICE_TYPE1-ONS
    2-LS/GS-TRUNK
    3-RECEIVERS
    4-JUNCTOR
    7-CONSOLE
    9-EM
    0-MORE_KEYS
    1-COV
    2-LINK/CHANNEL
    3-DID
    4-OPS
    6-DNIC
    9-T1_TRUNK
   3-EXT-NUM
 3-BUSY-OUT1-BAY/SLOT/CCT
2-DEVICE_TYPE2-LINK/CHANNEL
 3-EXT-NUM...
