Operation
Operation

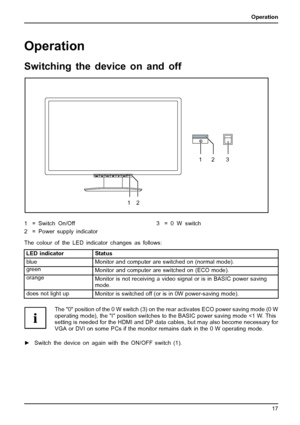

Switching the device on and off
123
12
1=SwitchOn/Off
2 = Power supply indicator3 = 0 W switch
The colour of the LED indicator changes as follows:
LED indicator Status
blue
Monitor and computer are switched on (normal mode).
green
Monitor and computer are switched on (ECO mode).
orange
Monitor is not receiving a video signal or is in BASIC power saving
mode.
does not light up
Monitor is switched off (or is in 0W power-saving mode).
The 0 position of the 0 W switch (3) on the rear...

Operation
Notes on power management
If your computer is equipped with power management (power saving mode), the monitor can
fully support this function. The monitor thereby distinguishes between the individual power
saving modes of the computer (standby mode, suspend mode and OFF mode).
Stage Operation Power-saving mode (0 W switch)
Normal
ECO ECO (0) BASIC (|)
Power supply
indicatorLights up blue Lit green is unlit illuminated orange
Display Max. brightness typ. 200
cd/m2unlitorange
Typical power...

Operation
Changing the monitor settings
When putting the monitor into operation for thefirst time, the screen display should
be optimally adapted to the display adapter used.
Changing the monitor settings with the buttons
of the control panel
The buttons of the control panel have two functions. If the OSD menu is
activated, a description of the current function of the buttons is displayed
directly above the buttons at the edge of the screen. If the OSD menu is not
activated, you can make the following...

Operation
Selecting input signal (D-SUB/DVI-D/HDMI)
►Press theINPUT/buttontocalluptheInput selectsettings window.
►Press the
ECO/or theINPUT/button to select the desired
monitor connection (VGA, DVI or DP).
►Press the
MENU/buttontoconfirm your selection or theAUTO/button to cancel the process.
This setting window can also be called up when the OSD menu is locked.
Locking the OSD menu
The OSD menu can be locked to prevent accidental or unauthorised changes to the monitor settings.
►Press and hold the...

Operation
Locking the ON/OFF button
The ON/OFF switch can be locked to prevent accidental or unauthorised
changes to the monitor settings.
►Press and hold the
ECO/andINPUT/buttons at the same time for a few seconds.
The messagePower button locked / unlockedis displayed.
Proceed in the same way to release the locked ON/OFF switch again.
Fujitsu Technology Solutions 21


Operation
Changing the monitor settings using the OSD menu
With the buttons on the control panel, you can call up and use the integrated
OSD (On-Screen Display) menu.
The English menu names are used in the following description (default setting).
►Press theMENU/button to activate the OSD menu.
The main menu appears, with icons for the setting functions.
Thefirst symbol, (Brightness/Contrast), is highlighted and the associated functions
are visible in the right-hand menufield.
►Press the
ECO/or...

Operation
►Press theECO/or INPUT /button to highlight another function.
►Press the
MODE/button or the/button to change the setting.
►Press the
ECO/or theINPUT/button to highlight another function.
►Press the
MENU/button to save the change or press theAUTO/button
to exit thefunction without making any changes.
If you want to change other settings, select the corresponding function from the OSD
main menu. All possible adjustments of the main menu are described in the following.
OSD menu functions
The OSD...

Operation
Adjusting the brightness and contrast
Call up theBrightness/Contrastsetting window
Brightness
Set the brightness of the display
With this function you change the brightness of the background lighting.
Contrast
Set the contrast of the display
With this function you modify the contrast of bright colour tones.
Black level
Set the brightness of the display
With this function you modify the contrast of dark colour tones.
Auto Brightness
Automatic brightness control
This function is used to...

Operation
Adjusting the picture size and position
Call theImage adjustsetting window
Phase
Eliminate picture disturbance
With this function youfine-tune your monitor to eliminate picture disturbance.
Clock
Set synchronisation
With this function you adjust the picture width to eliminate vertical picture
disturbances.
H-Position
Adjust the horizontal position
With this function you move the picture to the left or to the right.
V-Position
Adjust the vertical position
With this function you move the picture...

Operation
Setting colour temperature and colours
Call theColoursetting window
Select the colour temperature
The warmth of the screen colours is set using the colour temperature. The
colour temperature is measured in Kelvin (K). You can choose between
sRGB,6500 K,7500 K,9300 K,AdobeRGB,NativeandCustom Colour.
The optionssRGB,AdobeRGB,NativeandCustom colourare only available in
Officemode setting.
In the user-defined setting you can change the colour ratios of the basic
colours (red, green, blue) as...
