Epson Lq 2180 User Guide

7
Troubleshooting
Troubleshooting      7-9
Wrong top-of-form position
Printing starts too high or low on the page.
 Cause What to do
The paper size setting in your
application software or
printer driver does not match
the size of the paper you are
using.Check the paper size setting in your
application or printer driver.
The printer’s page length
settings for the front or rear
tractor do not match the size
of the continuous paper you
are using.Check the page length settings for the
front or rear...

7-10      Troubleshooting
Wrong tear-off position
The printer prints on (or too far away from) the perforation of
your continuous paper.
 Cause What to do
The tear-off position setting
is incorrect.Adjust the tear-off position using the
micro adjust feature. See “Adjusting
the tear-off position” in Chapter 2.
You moved the paper using
the knob while the printer
was on.Adjust the tear-off position using the
micro adjust feature. See “Adjusting
the tear-off position” in Chapter 2.

c
Caution:...

7
Troubleshooting
Troubleshooting      7-11
Printing or printout quality problems
The printer does not print when the computer sends data.
 Cause What to do
The printer is paused. Press the Pause button.
The printer cover is open. Close the printer cover and press the
Pause button to resume printing.
The interface cable is not
plugged in securely.Check that both ends of the cable
between the printer and the computer
are plugged in securely. If the cable is
connected correctly, run a self test as...

7-12      Troubleshooting
The printer makes noise, but nothing prints or printing stops
abruptly
Cause What to do
The paper thickness lever is
set incorrectly.Set the paper thickness lever to match
the thickness of your paper. See
“Setting the Paper Thickness Lever”
in Chapter 2.
The ribbon has too much
slack, the ribbon has come
loose, or the ribbon cartridge
is not installed properly.Remove any slack in the ribbon by
turning the ribbon-tightening knob, or
reinstall the ribbon cartridge as...

7
Troubleshooting
Troubleshooting      7-13 Part of the printout is missing, or dots are missing in random
positions.
Cause What to do
The ribbon has too much
slack, the ribbon has come
loose, or the ribbon cartridge
is not installed properly.Remove any slack in the ribbon by
turning the ribbon-tightening knob, or
reinstall the ribbon cartridge as
described in Chapter 1.
The ribbon is worn out. Replace the ribbon cartridge as
described in Chapter 1.
Lines of dots are missing in the printout....

7-14      Troubleshooting
The printout has extra blank lines between lines of text.
Cause What to do
Two line feed commands are
being sent at the end of each
line of text.Turn off the auto line feed setting
using the printer’s default-setting
mode or the EPSON Remote! utility.
See “About Your Printer’s Default
Settings” in Chapter 5, or “Using the
EPSON Remote! Utility” in Chapter 4.
The line space setting in your
application software is
incorrect.Adjust the line space setting in your...

7
Troubleshooting
Troubleshooting      7-15
The printer you want to use is
not selected in your software.Choose the correct printer from the
Windows desktop or in your
application before printing.
Your application software is
not configured correctly for
your printer.Make sure that your application
software is set up correctly for your
printer. See your application
documentation. If necessary, install or
reinstall the printer driver software as
described in Chapter 1.
Software settings override...

7-16      Troubleshooting
Clearing Paper Jams
To clear a paper jam, follow these steps:
1. Press the Operate button to turn off the printer.
2. If a single-sheet of paper is stuck on the paper guide, gently
remove it.
3. Remove the printer cover. If you are loading continuous
paper from the rear slot, remove the paper guide.
4. If continuous paper is jammed in the printer, tear off the fresh
supply at the perforation nearest the paper entry slot.
5. Turn the knob on the right side of the printer...

7
Troubleshooting
Troubleshooting      7-17

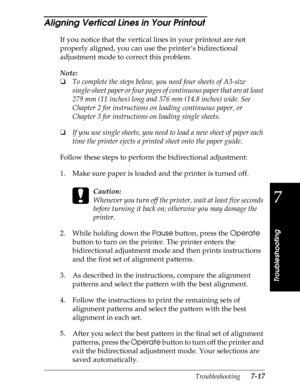

Aligning Vertical Lines in Your Printout
If you notice that the vertical lines in your printout are not
properly aligned, you can use the printer’s bidirectional
adjustment mode to correct this problem.
Note:
o
To complete the steps below, you need four sheets of A3-size
single-sheet paper or four pages of continuous paper that are at least
279 mm (11 inches) long and 376 mm (14.8 inches) wide. See
Chapter 2 for instructions on loading continuous paper,...

7-18      Troubleshooting
Printing a Self Test
Running the printer’s self test helps you determine whether the
printer or the computer is causing the problem:
oIf the self test results are satisfactory, the printer is working
properly and the problem probably results from your printer
driver settings, application settings, computer, or interface
cable. (Be sure to use a shielded interface cable.)
oIf the self test does not print properly, there is a problem with
the printer. See “Problems and...
