Digital Projection Projector WQXGA User Manual

www.digitalprojection.com
english
31
1.3 Using dual head input
For extended flexibility to connect high resolution sources with a pixel clock over 165 MHz,
the projector is supporting a dual head input mode. In this mode the left and \
right half of the
image can be connected to the DVI 1/DVI 2 or HDMI 1/HDMI 2 interfaces respectively
(Figure 6-1).
To enable this mode, go to the menu INSTALLATION > DUAL HEAD SETUP. Side-by-side is
the only available option at this time.
Figure 1-1. Dual input...

english
32
WQXGA User’s Guide –
Advanced setup
1.6 Controlling screens with triggers
The projector has to programmable triggers with 3.5 mm2 mini-jack connectors. These can
be used to enable or disable screens, curtains or other peripheral equipment.
To change trigger settings, go to menu entry INSTALLATION > TRIGGER
By default:
•	 Trigger 1 is set to control a screen depending on whether projector is powered on or not.
•	 Trigger 2 is set to control a screen depending on the aspect ratio of currently...

www.digitalprojection.com
english
33
1.9 Disabling LED indicators
In certain installations it may desirable to completely disable the LED \
indicator in the keypad
of the projector. To disable the LED indicators, go to menu entry SETTINGS > LED
INDICATORS MUTE.
NOTE! Pressing the “LIGHT” button on the keypad enables the LED indicat\
ors even if the
LED INDICATORS MUTE function is enabled.
If the LED indicators are enabled, the timeout period can be set in the menu under SET -
TINGS > BACKLIGHT...

english
34
WQXGA User’s Guide –
Technical specifications
1 Technical specifications
1.1  Product details
projector DLP® digital projector
display technologysingle chip DMD™ (Digital
Micromirror Device™) connectivity
computer/video2x HDMI (1.3)
concept sealed, all-glass optical design
with lens shift 2x DVI-D
available resolutions 2560 x
1600
colours 30-bit
colour management
accuracy ± 0.002 on x, y, z axis with VizSim
colour wheel
control and com-
munication1x RJ45 TCP/IP network port
input...

www.digitalprojection.com
english
35
1.2 Ceiling mount
300mm
500mm
Ceiling Mount Inter face
M6  Threads
384,9
111,8 94,3  15,5
95
82,5
59,5
53
510
123,1
163,3
233
300mm
500mm
C
eiling Mount Inter face
M6  Threads
384,9
111,8
94,3  15,5
95
82,5
59,5
53
510
123,1
163,3
233
300mm
500mm
C
eiling Mount Inter face
M6  Threads
384,9
111,8
94,3  15,5
95
82,5
59,5
53
510
123,1
163,3
233

english
36
WQXGA User’s Guide –
1  Optimising the picture
The projector has power features for picture optimization. This chapter describes details in
using these features. All color calibration is done using projectiondesign’s proprietary Real-
Color™ solution.
1.1  Calibration data
All projectiondesign projectors are measured and calibrated with high precision equipment at
the factory for the best out-of-box experience. Over the lifetime of the\
 lamps the characteris-
tics of the projector might...

www.digitalprojection.com
english
37
1.2  Working with RealColor™
1.2.1  Setting the BrilliantColor™ correctly
The BrilliantColor™ setting is used to control how color boost is applied in the image. It can
operate is four modes:
•	 Computer	Native	(Default):	This	give	max	brightness	and	color	boost.	Recommended	for
non-video applications, like CAD and visualization.
•	 Computer	Balanced:	Gives	the	same	brightness	as	Computer	Native,	but	has	a	less	ag- gressive color boost profile.
•	 Video	Native:...

english
38
WQXGA User’s Guide –

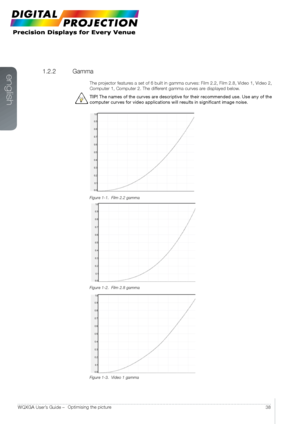

1.2.2   Gamma
The projector features a set of 6 built in gamma curves: Film 2.2, Film 2.8, Video 1, Video 2,
Computer 1, Computer 2. The different gamma curves are displayed below.
TIP! The names of the curves are descriptive for their recommended use. Use \
any of the
computer curves for video applications will results in significant ima\
ge noise.
Figure 1-1.  Film 2.2 gamma
Figure 1-2.  Film 2.8 gamma
Figure 1-3.  Video 1 gamma

Optimising the picture

www.digitalprojection.com
english
39
Figure 1-4.  Video 2 gamma
Figure 1-5.  Computer 1 gamma
Figure 1-6.  Computer 2 gamma

english
40
WQXGA User’s Guide –  Optimising the picture

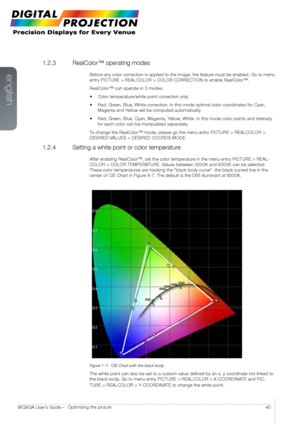

1.2.3
 RealColor™ operating modes
Before any color correction is applied to the image, the feature must be enabled. Go to menu
entry PICTURE > REALCOLOR > COLOR CORRECTION to enable RealColor™.
RealColor™ can operate in 3 modes:
•	 Color	temperature/white	point	correction	only.
•	 Red,	Green,	Blue,	White	correction.	In	this	mode	optimal	color	coordinates	for	Cyan,
Magenta and Yellow will be computed automatically.
•	 Red,	Green,	Blue,	Cyan,...
