5
ENg

●  SYSTEM SETUP

SETTINg THE AUDIO
Press the SOUND EDIT button and then press the Cursor
, button.
Adjusting Front/rear Speaker Balance
You can select between 00, -06, and OFF.
The volume decreases as you move closer to –6.
Adjusting Center/rear/Subwoofer Speaker Level
The volume level can be adjusted in steps from +6dB to –6dB.
The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
SETTINg THE DrC (DYNAMIC rANgE COMPrESSION)
This feature balances the...

0

system setup

SETTINg THE AV SYNC
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to
match the video.
In Stop mode, press the MENU button.
Press the Cursor % button to move to Audio and then press the
ENTE r
 button.
Press the Cursor % button to move to AV-SYNC and then press
the ENTE r button.
Press the Cursor , button to select the AV-SYNC Delay Time
and then press the  ENTEr button.
You can set the audio delay time...

1
ENg

●  SYSTEM SETUP

SOUND FIELD (DSP)/EQ FUNCTION
DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments.
EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing
Press the DSP/EQ button.
DSP appears on the display panel.
Each time the button is pressed, the selection changes as follows:
POPS ➞ JAZZ  ➞ rOCK ➞ STUDIO ➞ CLUB ➞ HALL ➞ MOVIE ➞ CHUrCH ➞ PASS  ➞ POPS
POP, JAZZ, rOCK : Depending on the...



system setup

DOLBY PrO LOgIC II EFFECT
This function works only in Dolby Pro Logic MUSIC mode.
Press the PL II MODE button to select MUSIC mode.
Press the PL II EFFECT button.
Each time the button is pressed, the mode changes as
follows.
Press the , buttons to select the desired effect setting.
PANORAMA : You can select either 0 or 1.
C- WIDTH : You can select between 0 and 7.
DIMENS : You can select between 0 and 6.
P.BASS
P.BASS function boosts the bass for a more powerful
sound....

3
ENg

●  SYSTEM SETUP

ASC (Auto Sound Calibration) SETUP
By setting the ASC function just once when you relocate or install the unit, you can have the unit
automatically recognize the distance between speakers, levels between channels, and frequency
characteristics to create a 5.1-channel sound field optimized for your environment.

ASC SETUP can be made when there is no disc in the unit, or it is in Stop mode with a
DVD/CD inserted.
Because the volume level of the tone is fixed during the...



system setup

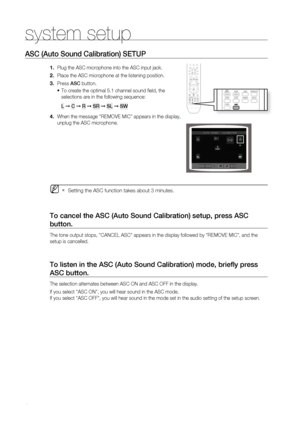

ASC (Auto Sound Calibration) SETUP
Plug the ASC microphone into the ASC input jack.
Place the ASC microphone at the listening position.
Press ASC button.
To create the optimal 5.1 channel sound fi eld, the
selections are in the following sequence:
L ➞ C ➞ r ➞ Sr ➞ SL ➞ SW
When the message "REMOVE MIC" appears in the display,
unplug the ASC microphone.
    Setting the ASC function takes about 3 minutes.
To cancel the ASC (Auto Sound Calibration) setup, press ASC...

65
ENG
LISTENING TO RADIO
Remote Control
Press the TUNER button to select the FM band.
Tune in to the desired station.
Automatic Tuning 1 : When the #,$ button is
pressed, a preset broadcast station is selected.
Automatic Tuning 2 : Press and hold the ,,.
button to automatically search for active
broadcasting stations.
Manual Tuning : Brie y press the ,,. button to
increase or decrease the frequency incrementally.
Main Unit
Press the FUNCTION button to select the FM band.
Select a broadcast...



XM SATELLITE rADIO
Before Using XM Satellite radio
FUNCTIONVOLUMEDISCCHANGEAUX IN 1ASC INPHONES
What is XM satellite radio?
XM Satellite Radio is the satellite radio service with millions of listeners across the U.S., broadcasting live daily.
XM’s channel lineup includes more than 160 digital channels of choice from coast to coast: 68 commercial-
free music channels, featuring hip hop to opera, classical to country, bluegrass to blues; 33 channels of
premier sports, talk, comedy,...


ENg
XM Display Modes
The XM features described here only operate when the optional XM receiver and antenna are connected to
the main unit.
Press the XM DISPLAY button.
Each time the XM DISPLAY button is pressed, the mode
changes as follows:
CHANNEL NAME/NUMBEr ➞ CHANNEL CATEgOrY ➞
ArTIST NAME/SONg TITLE ➞  SIgNAL STrENgTH
When the Channel Name/Number is displayed :
When the Channel Category is displayed :
When the Artist Name/Song Title is displayed :
When the Signal Strength is displayed...



XM SATELLITE rADIO
XM Display Modes
The XM features described here only operate when the optional XM receiver and antenna connected to the
main unit.
Press the XM SEArCH button.
Each time the XM SEARCH button is pressed, the mode
changes as follows:
CHANNEL SEArCH ➞ CATEgOrY SEArCH ➞
PrESET SEArCH
Channel Search Mode :
Press the TUNING/CH (or ,,. button on the main unit) to
move to the desired channel.
Category Search Mode :
Press the TUNING/CH (or ,,. button on the main unit) to select...
