Samsung HL-T5656W Dlp Tv Owners Instructions
Here you can view all the pages of manual Samsung HL-T5656W Dlp Tv Owners Instructions. The Samsung manuals for Television are available online for free. You can easily download all the documents as PDF.
Page 51
English - 51 How to Set up Restrictions Using “Canadian English” (for Canada Models) 9 Press the ▲ or ▼ button to select Canadian English, then press the ENTER button. 10 The Canadian English screen will appear. Press the ▲ or ▼ button to select an appropriate restriction. Press the ENTER button to activate the restriction selected. The “ ” symbol is indicated. Press the ▲ or ▼ button to select Return, then press the ENTER button. C: C8+: G: PG: 14+: 18+: Programming intended for...
Page 52
English - 52 Using the V-Chip for Digital Channels Parental restriction information can be used while watching DTV channels. 13 Press the ▲ or ▼ button to select Downloadable U.S. Rating, then press the ENTER button. ➢ If information is not downloaded from the broadcasting station, the Downloadable U.S. Rating menu is deactivated. ➢ Parental restriction information is automatically downloaded while watching DTV channels. It may take several seconds. ➢ The Downloadable U.S. Rating menu is available...
Page 53
English - 53 Viewing Closed Captions (On-Screen Text Messages) - Digital The Digital Captions function operates on digital channels. 1 Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Caption, then press the ENTER button. 2 Press the ▲ or ▼ button to select Caption, then press the ENTER button. Press the ▲ or ▼ button to select On, then press the ENTER button. 3 Press the ▲ or ▼ button to select Caption Mode, then press...
Page 54
English - 54 Viewing Closed Captions (On-Screen Text Messages) - Analog The Analog Caption function operates in either analog TV channel mode or external signal mode. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.) 1 Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Caption, then press the ENTER button. 2 Press the ▲ or ▼ button to select Caption, then press the ENTER...

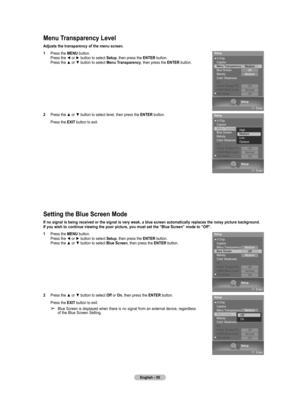

Page 55
English - 55 Menu Transparency Level Adjusts the transparency of the menu screen. 1 Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Menu Transparency, then press the ENTER button. 2 Press the ▲ or ▼ button to select level, then press the ENTER button. Press the EXIT button to exit. Setting the Blue Screen Mode If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture...
Page 56
English - 56 Using the Color Weakness Enhancement Feature This feature adjusts the Red, Green or Blue color to compensate for the user’s particular color weakness. 1 Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Color Weakness, then press the ENTER button. 2 Press the ▲ or ▼ button to select Color Weakness, then press the ENTER button. 3 Press the ▲ or ▼ button to select On, then press the ENTER button. 4 Press the ▲...
Page 57
English - 57 Setting the HDMI Black Level Using this function, you can adjust the image quality when the screen burn (appearance of black level, low contrast, low color, etc.) is encountered by the HDMI input for RGB limited range (16 to 235). 1 Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select HDMI Black Level, then press the ENTER button. 2 Press the ▲ or ▼ button to select Normal or Low, then press the ENTER button....
Page 58
English - 58 Setting the Film Mode - Analog You can automatically sense and process film signals and adjust the picture for optimum quality. 1 Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Film Mode, then press the ENTER button. 2 Press the ▲ or ▼ button to select Off or On, then press the ENTER button. Press the EXIT button to exit. ➢ Film Mode is avliable in TV (analog), AV, and S-Video modes. Setting the Function...
Page 59
English - 59 Upgrading the Software Samsung call center at 1-800-SAMSUNG to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on the rear of your TV. 1 Insert a USB drive containing the firmware upgrade into the USB Upgrade Port on the rear of the TV. 2 Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select SW Upgrade, then press the...
Page 60
English - 60 PC Display Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung...
