Samsung HL-T5656W Dlp Tv Owners Instructions

English - 41

Labeling Channels - Analog
Channels can labeled so that their call letters appear whenever the channel is selected.
1  Press the MENU button. Press the ◄ or ► button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button.
2  Press the ▲ or ▼ button to select All, then press the ENTER button.
3  Press the ▲/▼/◄/► buttons to select the channel to be assigned a new name, then press the ENTER button.
4  Press the ▲ or ▼...

English - 42

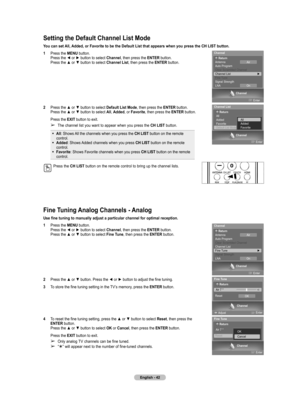

Setting the Default Channel List Mode
You can set All, Added, or Favorite to be the Default List that appears when you press the CH LIST button.
1  Press the MENU button. Press the ◄ or ► button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select Channel List, then press the ENTER button.
2  Press the ▲ or ▼ button to select Default List Mode, then press the ENTER button. Press the ▲ or ▼ button to select All, Added, or Favorite, then press the ENTER button....

English - 43

LNA (Low Noise Amplifier)
If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier
boosts the incoming signal).
1  Press the MENU button. Press the ◄ or ► button to select Channel, then press the ENTER button. Press the ▲ or ▼ button to select LNA, then press the ENTER button.
2  Press the ▲ or ▼ button to select Off or On, then press the ENTER button.
Press the EXIT button to exit.
➢ If the picture is noisy with the LNA...

English - 44

Function Description
Selecting a Menu Language
1  Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Language, then press the ENTER button.
 2  Press the ▲ or ▼ button to select : English, Español, or Français, then press the ENTER button.
Press the EXIT button to exit.
Continued...
Setting the Time
Setting the clock is necessary in order to use the various timer features of the TV.
Also, you can check the time...

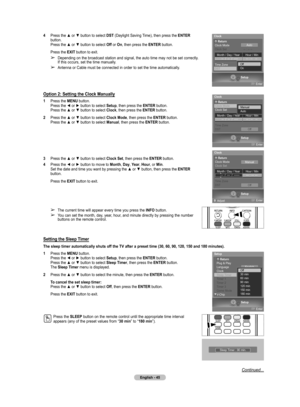

English - 45

Continued...
4  Press the ▲ or ▼ button to select DST (Daylight Saving Time), then press the ENTER button. Press the ▲ or ▼ button to select Off or On, then press the ENTER button.
Press the EXIT button to exit.
➢ Depending on the broadcast station and signal, the auto time may not be set correctly.
If this occurs, set the time manually.
➢ Antenna or Cable must be connected in order to set the time automatically.
Option 2: Setting the Clock Manually
1  Press the MENU button. Press the ◄...

English - 46

Setting the On/Off Timer
Use this feature to set the TV to turn on or off at a desired time.
1  Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select Timer 1, Timer 2, or Timer 3, then press the ENTER button. The Timer 1, Timer 2, or Timer 3 menu is displayed.
2  Press the ◄ or ► button to select the required item below. Press the ▲ or ▼ button to adjust to the setting satisfied.
Press the EXIT button to exit.
 On...

English - 47

Continued...

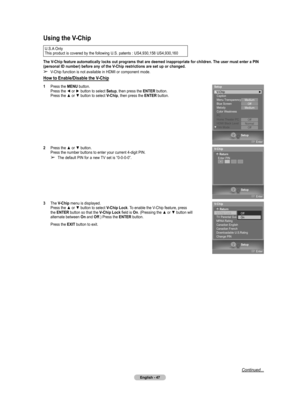

Using the V-Chip
U.S.A Only
This product is covered by the following U.S. patents : US4,930,158 US4,930,160
The V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN
(personal ID number) before any of the V-Chip restrictions are set up or changed.
➢ V-Chip function is not available in HDMI or component mode.
How to Enable/Disable the V-Chip
1  Press the MENU button. Press the ◄ or ► button to select Setup, then...

English - 48

Continued...
Setting Up Your Personal ID Number (PIN)
1  Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select V-Chip, then press the ENTER button.
2  Press the ▲ or ▼ button.  Press the number buttons to enter your current 4-digit PIN.
➢ The default PIN for a new TV set is “0-0-0-0”.
3  The V-Chip menu is displayed. Press the ▲ or ▼ button to select Change PIN, then press the ENTER button.
4  The Change PIN screen...

English - 49

Continued...
How to Set up Restrictions Using “TV Parental Guidelines”
First, set up a personal identification number (PIN), and enable the V-Chip. (See previous
section.) Parental restrictions can be set up using either of two methods: The TV
guidelines or the MPAA rating.
1  Press the MENU button. Press the ◄ or ► button to select Setup, then press the ENTER button. Press the ▲ or ▼ button to select V-Chip, then press the ENTER button.
2  Press the ▲ or ▼ button.  Press the number...

English - 50

5  At this point, one of the TV-Ratings is selected. Press the ENTER button. Depending on your existing setup, the “  ” symbol will be selected. (Blank = Unblocked,  = Blocked) While “  ” is selected, press the ENTER button to block or unblock the category. To select
a different TV-Rating, press the ▲ or ▼ button and then repeat the process.
 FV: V:  S:
Fantasy violence.
Violence.
Sexual situation.
 L:  D:  ALL:
Adult language.Sexually suggestive dialog.
Lock all TV ratings.
➢...
