Samsung Gear VR 2016 User Manual









Using the Charger
•	 You can connect the charger to the multipupose jack on the
bottom of the Gear VR.
Note: Use only Samsung-approved USB cables and power adapters.
Micr

o USB
charging cable
Micro USB Connector
• When connected to the charger, it is the connected mobile device
that is being charged and not the Gear VR.
• If using the Gear VR while the charger is connected to the
Gear VR’s multipurpose jack :
•	 It is powered by the charger and does not use the...












•	 In high power demand situations, the Gear VR draws power
from both the charger and the mobile device’s battery at the
same time.
• If the Gear VR is disconnected from the charger while it is being
used:
•	 The image on the screen may be brie�y inactive.
•	 During this period, the screen recalibrates and the Gear VR
may not recognize your head movements.
•	 If the Gear VR is not used while the charger is connected:
•	 The mobile device’s battery will...


Know Your Device

Learn some of the key features of your device,
including the screens and icons, as well as how to
navigate the device.






Basic Navigation and
Selection
Using the Touchpad
The Touchpad, located at the right side of the Gear VR, is used for
both selection and navigation of displayed elements.
Making Selections (Tapping)
1.	  Move your head to place the
pointer on top of the desired item.
2.	  Tap the touchpad with your �nger
to select an item or show available
features within a video.
Note: The touchpad works only while
you are wearing the Gear VR .
54

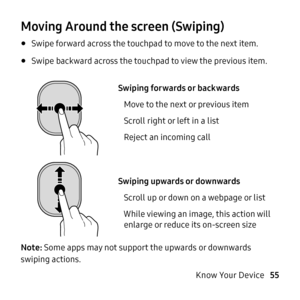

Moving Around the screen (Swiping)
• Swipe forward across the touchpad to move to the next item.
• Swipe backward across the touchpad to view the previous item.
Swiping forwards or backwards


    Move to the next or previous item


Scroll right or left in a list




Reject an incoming call

Swiping up

wards or downwards
Scroll up or down on a webpage or list
While viewing an image, this action

will
  enlarge or reduce its on-screen size
Note: S

ome apps may not...

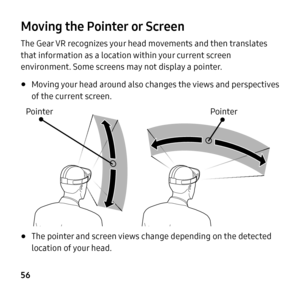

Moving the Pointer or Screen
The Gear VR recognizes your head movements and then translates
that information as a location within your current screen
environment. Some screens may not display a pointer.
• Moving your head around also changes the views and perspectives
of the current screen.

Pointer  Pointer

• The pointer and screen views change depending on the detected
location of your head.
56

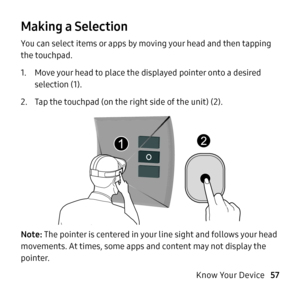

Making a Selection
You can select items or apps by moving your head and then tapping
the touchpad.
1.	 Move your head to place the displayed pointer onto a desired
selection (1).
2.	  Tap the touchpad (on the right side of the unit) (2).
Note: The pointer is centered in your line sight and follows your head
movements. At times, some apps and content may not display the
pointer.
Know Your Device 57







Navigation - Home Screen
Any time the Gear VR application restarts, you are prompted to read
the displayed Health and Safety information and tap the touchpad to
accept the terms before proceeding.
Recommended apps Store
New Oculus videos Recently
used apps
Friends list
Store (      )
Tutorial
Oculus Home (   )
Library (  )
58

Store (      )
Oculus Home (   )
Recommended apps
New Oculus videos
Friends list
Tutorial
Store
Recently
used apps
Library (














The Oculus Home screen is the starting point for accessing Apps,
�les, features, and connecting others.
From this Home screen you can navigate to any of the these screens:
• STORE
 screen  : Provides access to VR applications. Swipe
through t
o view the available downloads.
• HOME  screen  : Provides access to the main home...








Navigation - App Screen
Once you select an app (from either your Recent Apps or Library
screen), you can select additional related options.
Launching a Loaded Application
1.	 From the  HOM E screen, select  Library.
2.


Use the t

ouchpad to move through your available applications.
Additional options include: My Apps, Updates, Not installed,
or select from available �lters at the top of the screen such as:
Comfort, Recent, A-Z (alphabetical).
3.	 Access the...
