For Your  Information
D.FUNCTION (p. 37)
To select one of the 6 digital functions.
Setting to OFF cancels the previously
selected digital function.
D.EFFECT (p. 37)
To select one of the 2 digital picture
effects for playback. Setting to OFF
cancels the previously selected digital
effect.
D.ZOOM (p. 35)
Set to ON to double the size of a
playback image. Setting to OFF
cancels the previously selected digital
zoom.
REC-SPEED (p. 6)
SP:Normal recording speed
mode.
LP:Recording time is 1.5 times as
long as...

62For assistance,  please call :  1-800-211-PANA(7262) or send e-mail to : [email protected]
SPEED (p. 32)
In Strobe Multi mode, used to select
the interval at which a succession of
still screens are captured from the
playback picture.
FAST :Every 0.3 seconds
NORM :Every 0.6 seconds
SLOW :Every 1.0 seconds
DISPLAY (p. 63)
To select the desired type of display
and counter indication displayed on the
LCD Monitor or in the viewfinder.
C.RESET (p. 63)
Setting to ON resets the counter to
zero....

63
For Your  Information
Here are some of the basic indications which will appear on the Palmcorder EVF and LCD
Monitor. Only Date and Time indications will be recorded onto the tape.
Display ON/OFF and Counter/Time Code
The indication switches as shown
below when the desired “DISPLAY”
mode is selected from the menu.
(Menu OSD: pp. 60, 62)
When OFF is selected, all displays
are turned off. Battery Remaining
Tape Remaining
It will take several seconds for the tape
remaining indicator to operate after...

64For assistance,  please call :  1-800-211-PANA(7262) or send e-mail to : [email protected]

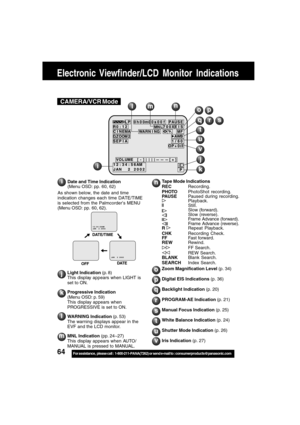

Electronic Viewfinder/LCD Monitor Indications
Date and Time Indication
(Menu OSD: pp. 60, 62)
As shown below, the date and time
indication changes each time DATE/TIME
is selected from the Palmcorder’s MENU
(Menu OSD: pp. 60, 62).Tape Mode Indications
RECRecording.
PHOTOPhotoShot recording.
PAUSEPaused during recording.
Playback.Still.Slow (forward).Slow (reverse).Frame Advance (forward).Frame Advance...

65
For Your  Information
Index of Controls
JOG KEY
pp. 13, 14.
M.FOCUS DIAL
p. 25.
Lens
Front View
POWER
(VCROFFCAMERA)
pp. 9, 10.
LCD (Liquid
Crystal Display)
Monitor
pp. 9, 10, 16, 28.
LCD-OPEN
pp. 9, 10, 16, 28.Built-in Speaker
p. 29.
PC Connector
p. 43. DC IN Terminal
p. 12.Shoulder Strap
Attachment Ring
p. 7.
Hand Strap
p. 8.
Side View
Rear View
Cassette
Compartment
Cover
p. 7.
DV Input/Output
(i.LINK) Connector
pp. 41, 42.TAPE EJECT
pp. 7, 9.BATT RELEASE
pp. 11, 12.
Built-in
Microphone
Shoulder...

66For assistance,  please call :  1-800-211-PANA(7262) or send e-mail to : [email protected]
Index of Controls
POWER ZOOM
pp. 18, 34.
VOLUME
p. 29. Electronic
Viewfinder (EVF)
p. 10.
Rear ViewPHOTOSHOT
p. 17.
Lens Cap
p. 8.
Top View
LIGHT
p. 8. FADE
p. 22.
REC
p. 41.
REW
pp. 10, 28.
RECORDING CHECK
p. 18.STOP
pp. 10, 28. PLAY
pp. 10, 28.
MULTI
p. 32.
FF
p. 30.
BACK LIGHT
p. 20. PAUSE
pp. 30, 39, 41.
CAMERA STILL
p. 23.
Back View
Vision
Adjustment
Control
pp. 10, 15.
REC/PAUSE
pp. 10, 15....

67
For Your  Information
CAUTION:
VCR DC Output
Connector
p. 12. CHARGE Lamp
p. 11. POWER Lamp
pp. 11, 12.
AC Power Cord
pp. 11, 12.
This unit will operate on 110/120/
220/240 V AC. An AC plug adaptor
may be required for voltages other
than 120V AC. Please contact either
a local or foreign electrical parts
distributor for assistance in selecting
an alternate AC plug.
We recommend using the accessory
power plug adaptor (VJSS0070) in
an area which has special AC
outlets.
Index of Controls
AC Adaptor...
