Panasonic LCD Projector Pt Vw350zu Pt Vx420zu Operating Instructions
Here you can view all the pages of manual Panasonic LCD Projector Pt Vw350zu Pt Vx420zu Operating Instructions. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 111
Two window display combination list Sub Window COMPUTER1 COMPUTER2 HDMIVIDEOS-VIDEO Main Window RGBYC BCR/YPBPRRGB COMPUTER1 RGB ―― ― l― ― YC BCR/YPBPR― ― ― l― ― COMPUTER2 RGB―― ― l― ― HDMI ll l― ll VIDEO ―― ― l― ― S-VIDEO ―― ― l― ― l : Picture in Picture combinations are enabled. ―: Picture in Picture combinations are disabled. Note f When setting the movie-based signal 1080/24p, 1080/24sF,1080/25p, 1080/30p, 1080/50p or 1080/60p for HDMI input, the two window display function will be disabled....
Page 112
List of compatible signals The following table specifies the type of signals compatible with the projectors. f Symbols that indicate formats are as follows. V = VIDEO, S = S-VIDEO, R = RGB, Y = YC BCR/YPBPR, H = HDMI Mode Display resolution (dots) Scanning frequency Dot clock frequency (MHz) Format* 1PnP*2 H (kHz) V (Hz) COMPUTER1 / COMPUTER2 HDMI NTSC/NTSC4.43/ PAL-M/PAL60 720 x 480i 15.759.9 ―V/S ― ― PAL/PAL-N/SECAM 720 x 576i15.650.0 ―V/S― ― 525i (480i) 720 x 480i15.759.9 13.5 R/Y―― 625i (576i)...
Page 113
ModeDisplay resolution (dots) Scanning frequency Dot clock frequency (MHz) Format* 1PnP*2 H (kHz) V (Hz) COMPUTER1 / COMPUTER2 HDMI 1280 x 800 1 280 x 80041.3 50.0 68.0 R/H―― 1 280 x 80049.759.8 83.5 R/Hll MSXGA 1 280 x 96060.060.0 108.0 R/H―― SXGA 1 280 x 1 02464.060.0 108.0 R/Hll 1 280 x 1 02480.075.0 135.0 R/Hl― 1 280 x 1 02491.1 85.0 157.5 R/H―― 1366 x 768 1 366 x 768 39.649.9 69.0 R/H―― 1 366 x 768 47.759.8 85.5 R/Hll SXGA+1 400 x 1 05065.260.0 122.6 R/H―― 1 400 x 1 05082.374.9 156.0 R/H―― WXGA+1...
Page 114
![Page 114
Specifications
Power supplyFor North America: 120 V (120 V alternating current), 50 Hz/60 Hz
For other countries: 100 V - 240 V
(100 V - 240 V alternating current), 50 Hz/60 Hz
Power
con-
sumption Projecting
For North America: 3.2 A, 320 W
For other countries: 3.7 A-1.5 A, 320 W
In standby mode When [STANDBY MODE] of [ECO MANAGEMENT] is set to [ECO] : 0.5 W *
1
When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NETWORK] : 1.6 W *2
When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NORMAL] : 9.5 W...](http://img.usermanuals.tech/thumb/58/76004/w300_pt-vw350zu_pt-vx420zu_om_d-113.png "Page 114
Specifications
Power supplyFor North America: 120 V (120 V alternating current), 50 Hz/60 Hz
For other countries: 100 V - 240 V
(100 V - 240 V alternating current), 50 Hz/60 Hz
Power
con-
sumption Projecting
For North America: 3.2 A, 320 W
For other countries: 3.7 A-1.5 A, 320 W
In standby mode When [STANDBY MODE] of [ECO MANAGEMENT] is set to [ECO] : 0.5 W *
1
When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NETWORK] : 1.6 W *2
When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NORMAL] : 9.5 W...")
Specifications Power supplyFor North America: 120 V (120 V alternating current), 50 Hz/60 Hz For other countries: 100 V - 240 V (100 V - 240 V alternating current), 50 Hz/60 Hz Power con- sumption Projecting For North America: 3.2 A, 320 W For other countries: 3.7 A-1.5 A, 320 W In standby mode When [STANDBY MODE] of [ECO MANAGEMENT] is set to [ECO] : 0.5 W * 1 When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NETWORK] : 1.6 W *2 When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NORMAL] : 9.5 W...
Page 115
![Page 115
Projection size0.76 m -7.62 m (30"-300")
Screen aspect ratio PT-VW350
16 : 10
PT-VX420 4 : 3
Projection scheme
[FRONT/DESK], [FRONT/CEILING], [REAR/DESK], [REAR/CEILING] (Menu setting system)
Speaker 1 (4.0 cm round-type)
Maximum usable volume output 10 W
Terminals
1 (High-density D-sub 15 pin female)
[RGB signal]
0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 V [p-p] 75 Ω)
HD/SYNC TTL high impedance, automatic positive/negative polarity compatible
VD TTL high impedance, automatic positive/negative...](http://img.usermanuals.tech/thumb/58/76004/w300_pt-vw350zu_pt-vx420zu_om_d-114.png "Page 115
Projection size0.76 m -7.62 m (30\"-300\")
Screen aspect ratio PT-VW350
16 : 10
PT-VX420 4 : 3
Projection scheme
[FRONT/DESK], [FRONT/CEILING], [REAR/DESK], [REAR/CEILING] (Menu setting system)
Speaker 1 (4.0 cm round-type)
Maximum usable volume output 10 W
Terminals
1 (High-density D-sub 15 pin female)
[RGB signal]
0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 V [p-p] 75 Ω)
HD/SYNC TTL high impedance, automatic positive/negative polarity compatible
VD TTL high impedance, automatic positive/negative...")
Projection size0.76 m -7.62 m (30"-300") Screen aspect ratio PT-VW350 16 : 10 PT-VX420 4 : 3 Projection scheme [FRONT/DESK], [FRONT/CEILING], [REAR/DESK], [REAR/CEILING] (Menu setting system) Speaker 1 (4.0 cm round-type) Maximum usable volume output 10 W Terminals 1 (High-density D-sub 15 pin female) [RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 V [p-p] 75 Ω) HD/SYNC TTL high impedance, automatic positive/negative polarity compatible VD TTL high impedance, automatic positive/negative...
Page 116
Dimensions 113.0 (4-7/16) 255.0 (10-1/32) 352.0 (13-27/32) 24.4 (31/32) 98.0 (3-27/32) 90.0 (3-17/32) 326.0 (12-27/32) 198.0 (7-25/32)54.8 (2-5/32) * Actual dimension may differ by product. 116 - ENGLISH Chapter 6 Appendix - Dimensions
Page 117
Ceiling mount bracket safeguards f When installing the projector to a ceiling, be sure to use the specified optional Ceiling Mount Bracket for Projectors. Model No. of ceiling mount bracket: ① ET-PKL100H (for high ceilings), ET-PKV400B (Projector Mount Bracket) ② ET-PKL100S (for low ceilings), ET-PKV400B (Projector Mount Bracket) f When installing the projector, attach the drop-prevention kit included with the Ceiling Mount Bracket for Projectors. f Ask a qualified technician to do the...

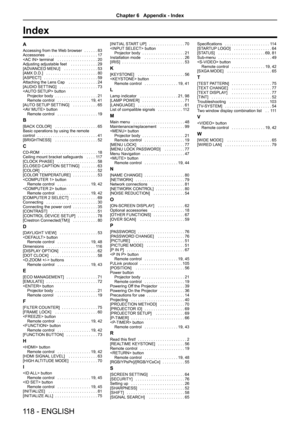

Page 118
![Page 118
Index
A
Accessing from the Web browser ......83
Accessories ...................... 17
terminal .................. 20
Adjusting adjustable feet ............29
[ADVANCED MENU] ............... 53
[AMX D.D.] ....................... 80
[ASPECT] ........................ 59
Attaching the Lens Cap .............24
[AUDIO SETTING] ................. 73
button Projector body ................... 21
Remote control ............... 19, 41
[AUTO SETUP SETTING] ...........65
button Remote...](http://img.usermanuals.tech/thumb/58/76004/w300_pt-vw350zu_pt-vx420zu_om_d-117.png "Page 118
Index
A
Accessing from the Web browser ......83
Accessories ...................... 17
terminal .................. 20
Adjusting adjustable feet ............29
[ADVANCED MENU] ............... 53
[AMX D.D.] ....................... 80
[ASPECT] ........................ 59
Attaching the Lens Cap .............24
[AUDIO SETTING] ................. 73
button Projector body ................... 21
Remote control ............... 19, 41
[AUTO SETUP SETTING] ...........65
button Remote...")
Index A Accessing from the Web browser ......83 Accessories ...................... 17 terminal .................. 20 Adjusting adjustable feet ............29 [ADVANCED MENU] ............... 53 [AMX D.D.] ....................... 80 [ASPECT] ........................ 59 Attaching the Lens Cap .............24 [AUDIO SETTING] ................. 73 button Projector body ................... 21 Remote control ............... 19, 41 [AUTO SETUP SETTING] ...........65 button Remote...
Page 119
W0415HY0 -ST Product information (for Turkey only) AEEE Yönetmeliğine Uygundur. Eski Ekipman ve Bataryaların İşlenmesi. Sadece geri dönüşüm sistemleri olan Avrupa Birliği ve ülkeleri için geçerlidir. Ürünler, ambalaj ve/veya ekli belgeler üzerindeki bu semboller kullanılmış elektrik ve elektronik ürünlerin ve pillerin genel ev atığı ile karıştırılmaması gerektiğini ifade eder. Eski ürünlerin ve pillerin toplanması ve geri kazanılması için bu atıkları lütfen yasayla belirlenmiş olan uygun toplama...
