Connecting21
Connecting2

y If a connected HDMI device does not accept
the audio output of the player, the HDMI
device’s audio sound may be distorted or
may not output.

y When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 23.)

y Select the type of video output from the
HDMI OUT jack using [HDMI Color Setting]
option on the [Setup] menu (see page 33).

y Changing the resolution when the
connection has already been...

Connecting22
Connecting2
Component Video Connection
Connect the COMPONENT VIDEO OUT jacks on the player to the corresponding input jacks on the TV using component video cable. You can hear the sound the through the system’s speaker.
Component
video cable
Rear of the unit
TV
When you use COMPONENT VIDEO OUT
connection, you can change the resolution for
the output. (Refer to “Resolution setting” on
page 23.)
,Note
Video Connection
Connect the VIDEO OUT jack on the player to the video in jack on the...

Connecting23
Connecting2
Resolution Setting
The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUTPUT jacks. You can change the resolution using [Setup] menu.
1. Press HOME (n).
2. Use A/D to select the [Setup] and press ENTER (b). The [Setup] menu appears.
3. Use W/S to select [DISPLAY ] option then press D to move to the second level.
4. Use W/S to select the [Resolution] option then press ENTER (b) to move to the third level.
5. Use W/S to select the desired resolution...

Connecting24
Connecting2
Connections with
external device
AUX Connection
You can enjoy the sound from an external component through the speakers of this system.
Connect the analog audio output jacks of your component into the AUX L/R (INPUT ) on this unit. And then select the [AUX] option by pressing RADIO&INPUT and ENTER (b).
You can also use the FUNC. (Function) button on the front panel to select the input mode.
To the audio output jacks of your component  ( TV, VCR, etc.)
Rear of the unit
White
Red...

Connecting25
Connecting2
OPTICAL IN connection
You can enjoy the sound from your component with a digital optical connection through the speakers of this system.
Connect the optical output jack of your component into the OPTICAL IN jack on the unit. And then select the [OPTICAL] option by pressing RADIO&INPUT and ENTER (b). Or press OPTICAL to select directly.
You can also use the FUNC. (Function) button on the front panel to select the input mode.
To the digital
optical output jack
of your...

Connecting26
Connecting2
Connecting to your
Home Network
This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module.  By connecting the unit to a broadband home network, you have access to services such as software updates, BD-LIVE interactivity and on-line content services.
Wired network connection
Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to...

Connecting27
Connecting2
Wired Network Setup
If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player’s network setting to be adjusted. Adjust the [NETWORK] setting as follow.
Preparation
Before setting the wired network, you need to connect the broadband internet to your home network.
1. Select [Connection Setting] option in the...

Connecting28
Connecting2

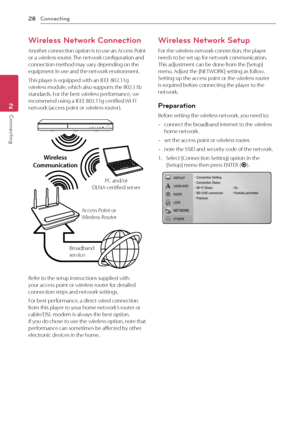

Wireless Network Connection
Another connection option is to use an Access Point or a wireless router. The network configuration and connection method may vary depending on the equipment in use and the network environment.
This player is equipped with an IEEE 802.11g wireless module, which also supports the 802.11b standards. For the best wireless performance, we recommend using a IEEE 802.11g certified Wi-Fi network (access point or wireless router).
Wireless
Communication
PC...

Connecting29
Connecting2
2. The [Connection Setting] menu appear on the screen. Use W/S to select [ Wireless] and press ENTER (b).
3. Select [Yes] and press ENTER (b) to continue. The new connection settings reset the current network settings.
4. The player scans the all available access points or wireless routers within range and display them as a list. Use W/S to select an access point or wireless router on the list, and then press ENTER (b).
If you have security on your access point or wireless...

Connecting30
Connecting2
Notes on Network Connection:
 yMany network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.
 yDepending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of...
