Hitachi Cp-X268a Projector Users Manual

4

SCREEN Menu
ItemDescription
MESSAGE
Using the buttons ▲/▼ turns on/off the message function.
TURN ON ó TURN OFF
When the TURN ON is selected, the following message function works.“AUTO IN PROGRESS” while automatically adjusting”NO INPUT IS DETECTED””SYNC IS OUT OF RANGE”"Searching….” while searching for the input”Detecting….” while an input signal is detectedThe indication of the input signal displayed by changing The indication of the aspect ration displayed by changingThe indication of the...

4

OPTION Menu
OPTION Menu
ItemDescription
AUTO SEARCH
Using the buttons ▲/▼ turns on/off the automatic signal search function.
TURN ON ó TURN OFF
When the TURN ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.
RGB IN ð RGB IN ð MIU ð COMPONENT VIDEO ð S-VIDEO ð VIDEO
AUTO KEYSTONE
Using the buttons ▲/▼...

43

ItemDescription
AUTO OFF
Using the buttons ▲/▼ adjusts the time to count down to automatically turn the projector off.
Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE)
AUTO OFFENABLE
AUTO OFFDISABLE0
When the time is set to 0, the projector is not turned off automatically.When the time is set to  to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote...

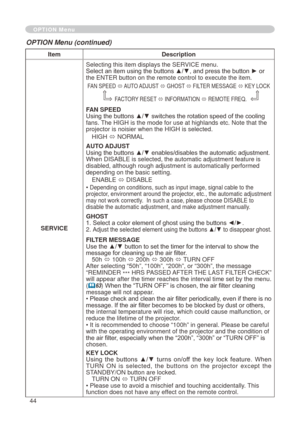

44

ItemDescription
SERVICE
Selecting this item displays the SERVICE menu.Select an item using the buttons ▲/▼, and press the button ► or the ENTER button on the remote control to execute the item.
FAN SPEED ó AUTO ADJUST ó GHOST ó FILTER MESSAGE ó KEY LOCK
FACTORY RESET ó INFORMATION ó REMOTE FREQ.
FAN SPEEDUsing the buttons ▲/▼ switches the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. Note that the projector is noisier when the HIGH is selected.
HIGH ó NORMAL...

45

ItemDescription
SERVICE
REMOTE FREQ.Use the ▲/▼ button to change the Projector's remote sensor setting (18).
:NORMAL
ó  :HIGH
Items with a checkmark are on. The factory default setting is for
both :NORMAL and :HIGH to be on. If the remote control does
not function correctly set the this to either only  or only  as
described in Remote Control Settings (18).Neither can be turned off at the same time.
INFORMATIONSelecting this item displays a dialog titled “INPUT...

46

ItemDescription
SECURITY
This projector is equipped with security functions.User registration is required before using the security functions.Please contact your local dealer.
1. Using Security Features
1.1 Inputting the PASSWORD
1.1-1  Use the ▲/▼ buttons on the OPTION menu to select SECURITY and press the ► button. The ENTER PASSWORD box will be displayed. The factory default PASSWORD is
3046. This PASSWORD can be changed (.
Changing the PASSWORD).
NOTE  :  It is strongly recommended...

47

ItemDescription
SECURITY
1.3 If you have forgotten your PASSWORD
.3-  Follow the procedure in .- to display the ENTER PASSWORD BOX.
.3-   While the ENTER PASSWORD BOX is
displayed, press and hold the RESET button on the remote control for about 3 seconds or press and hold the INPUT and ► buttons on the projector for about 3 seconds.
The 0 digit Inquiring Code will be displayed.
NOTE: If there is no key input for about 55 seconds while the Inquiring Code is...

48

ItemDescription
SECURITY
.-4  Move the cursor to the right side of the CHECK PASSWORD BOX and press the ► button to
display the PASSWORD for about  0 seconds,
please make note of the PASSWORD during this time. After the PASSWORD has displayed
for about 0 seconds the screen will return to
the MyScreen PASSWORD on/off menu.Pressing the ENTER button on the remote control or INPUT button on the projector will close the PASSWORD box.When a PASSWORD is set for MyScreen:
• The...

49

ItemDescription
SECURITY
3.1-3   Input a 4 part PIN Code using the ▲/▼/◄/►/RGB and INPUT buttons.A CONFIRMATION BOX will appear. Reenter the same PIN Code. This will complete the PIN Code registration.NOTE: If there is no key input for about 55 seconds while the PIN BOX or the CONFIRMATION BOX are displayed the menu will close. If necessary repeat
the process from 3.-.
Afterwards, anytime the projector is restarted after the power switch is turned off the PIN BOX will be displayed. Enter...

50

ItemDescription
SECURITY
4. Using the Transition Detector Function
While the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below.• Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.• Transition Detector alarm might appear on screen, if the MIRROR setting has been changed.• Keystone adjustment feature has been prohibited as long as the Transition Detector function is ON.
4.1...
