Page 51
![Page 51
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
1 14.1-inch display panel F1788
2 adapter rails (2)
3 M2 x 3-mm screws (4) 4270E
4 This side up markings
7. Press in both sides of the top flex-cable connector, and pull the top fl\
ex-cable connector away from the display connector.
8. Use the pull-tab to disconnect the bottom flex-cable connector from the \
inverter connector.
file:///F|/Service%20Manuals/Dell/Latitude/d505/display.htm (8 of 12) \
[2/28/2004...](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-50.png "Page 51
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
1 14.1-inch display panel F1788
2 adapter rails (2)
3 M2 x 3-mm screws (4) 4270E
4 This side up markings
7. Press in both sides of the top flex-cable connector, and pull the top fl\
ex-cable connector away from the display connector.
8. Use the pull-tab to disconnect the bottom flex-cable connector from the \
inverter connector.
file:///F|/Service%20Manuals/Dell/Latitude/d505/display.htm (8 of 12) \
[2/28/2004...")
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\ nual 1 14.1-inch display panel F1788 2 adapter rails (2) 3 M2 x 3-mm screws (4) 4270E 4 This side up markings 7. Press in both sides of the top flex-cable connector, and pull the top fl\ ex-cable connector away from the display connector. 8. Use the pull-tab to disconnect the bottom flex-cable connector from the \ inverter connector. file:///F|/Service%20Manuals/Dell/Latitude/d505/display.htm (8 of 12) \ [2/28/2004...

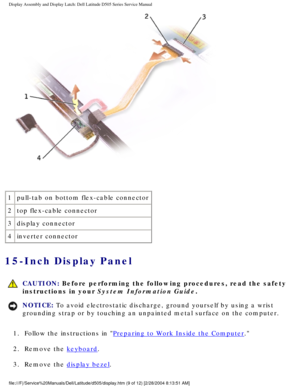

Page 52
![Page 52
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
1 pull-tab on bottom flex-cable connector
2 top flex-cable connector
3 display connector
4 inverter connector
15-Inch Display Panel
CAUTION: Before performing the following procedures, read the safety
instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by touching an unpainted metal surface on the compute\
r.
1. Follow the...](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-51.png "Page 52
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
1 pull-tab on bottom flex-cable connector
2 top flex-cable connector
3 display connector
4 inverter connector
15-Inch Display Panel
CAUTION: Before performing the following procedures, read the safety
instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by touching an unpainted metal surface on the compute\
r.
1. Follow the...")
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\ nual 1 pull-tab on bottom flex-cable connector 2 top flex-cable connector 3 display connector 4 inverter connector 15-Inch Display Panel CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the compute\ r. 1. Follow the...
Page 53
![Page 53
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
4. Remove the eight M2 x 5-mm screws from each side of the display panel.
5. Lift the display panel, and rotate the display panel out of the display \
cover.
6. Press in both sides of the top flex-cable connector, and pull the top fl\
ex-cable connector away from the display connector.
7. Use the pull-tab to disconnect the bottom flex-cable connector from the \
inverter connector.
1 pull-tab on bottom flex-cable...](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-52.png "Page 53
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
4. Remove the eight M2 x 5-mm screws from each side of the display panel.
5. Lift the display panel, and rotate the display panel out of the display \
cover.
6. Press in both sides of the top flex-cable connector, and pull the top fl\
ex-cable connector away from the display connector.
7. Use the pull-tab to disconnect the bottom flex-cable connector from the \
inverter connector.
1 pull-tab on bottom flex-cable...")
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\ nual 4. Remove the eight M2 x 5-mm screws from each side of the display panel. 5. Lift the display panel, and rotate the display panel out of the display \ cover. 6. Press in both sides of the top flex-cable connector, and pull the top fl\ ex-cable connector away from the display connector. 7. Use the pull-tab to disconnect the bottom flex-cable connector from the \ inverter connector. 1 pull-tab on bottom flex-cable...
Page 54
![Page 54
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
Display Latch
NOTICE: Disconnect the computer and any attached devices from electrical
outlets, and remove any installed batteries.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by touching an unpainted metal surface on the compute\
r.
1. Remove the
keyboard.
2. Remove the
display assembly.
3. Remove the
display bezel.
4. Remove the M2 x 5-mm screw that secures the...](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-53.png "Page 54
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
Display Latch
NOTICE: Disconnect the computer and any attached devices from electrical
outlets, and remove any installed batteries.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by touching an unpainted metal surface on the compute\
r.
1. Remove the
keyboard.
2. Remove the
display assembly.
3. Remove the
display bezel.
4. Remove the M2 x 5-mm screw that secures the...")
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\ nual Display Latch NOTICE: Disconnect the computer and any attached devices from electrical outlets, and remove any installed batteries. NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by touching an unpainted metal surface on the compute\ r. 1. Remove the keyboard. 2. Remove the display assembly. 3. Remove the display bezel. 4. Remove the M2 x 5-mm screw that secures the...
Page 55
![Page 55
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
1 top cover H1375
2 M2 x 5-mm screw (1) 1428U
3 display bracket
4 display latch
Back to Contents Page
file:///F|/Service%20Manuals/Dell/Latitude/d505/display.htm (12 of 12)\
[2/28/2004 8:13:51 AM]](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-54.png "Page 55
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\
nual
1 top cover H1375
2 M2 x 5-mm screw (1) 1428U
3 display bracket
4 display latch
Back to Contents Page
file:///F|/Service%20Manuals/Dell/Latitude/d505/display.htm (12 of 12)\
[2/28/2004 8:13:51 AM]")
Display Assembly and Display Latch: Dell Latitude D505 Series Service Ma\ nual 1 top cover H1375 2 M2 x 5-mm screw (1) 1428U 3 display bracket 4 display latch Back to Contents Page file:///F|/Service%20Manuals/Dell/Latitude/d505/display.htm (12 of 12)\ [2/28/2004 8:13:51 AM]
Page 56
![Page 56
Palm Rest: Dell Latitude D505 Series Service Manual
Back to Contents Page
Palm Rest
Dell™ Latitude™ D505 Series Service Manual
CAUTION: Before performing the following procedures, read the safety
instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (\
such as
the back panel) on the computer.
1. Follow the instructions in
Preparing to Work Inside the...](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-55.png "Page 56
Palm Rest: Dell Latitude D505 Series Service Manual
Back to Contents Page
Palm Rest
Dell™ Latitude™ D505 Series Service Manual
CAUTION: Before performing the following procedures, read the safety
instructions in your System Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (\
such as
the back panel) on the computer.
1. Follow the instructions in
Preparing to Work Inside the...")
Palm Rest: Dell Latitude D505 Series Service Manual Back to Contents Page Palm Rest Dell™ Latitude™ D505 Series Service Manual CAUTION: Before performing the following procedures, read the safety instructions in your System Information Guide. NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (\ such as the back panel) on the computer. 1. Follow the instructions in Preparing to Work Inside the...
Page 57
![Page 57
Palm Rest: Dell Latitude D505 Series Service Manual
1 M2.5 x 5-mm screws labeled circle P (3) 63PDH
2 top of the palm rest
3 M2.5 x 5-mm screw labeled M2.5x5 63PDH
6. Turn over the computer and remove the 13 M2.5 x 8-mm screws.
file:///F|/Service%20Manuals/Dell/Latitude/d505/palmrest.htm (2 of 5) \
[2/28/2004 8:13:52 AM]](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-56.png "Page 57
Palm Rest: Dell Latitude D505 Series Service Manual
1 M2.5 x 5-mm screws labeled circle P (3) 63PDH
2 top of the palm rest
3 M2.5 x 5-mm screw labeled M2.5x5 63PDH
6. Turn over the computer and remove the 13 M2.5 x 8-mm screws.
file:///F|/Service%20Manuals/Dell/Latitude/d505/palmrest.htm (2 of 5) \
[2/28/2004 8:13:52 AM]")
Palm Rest: Dell Latitude D505 Series Service Manual 1 M2.5 x 5-mm screws labeled circle P (3) 63PDH 2 top of the palm rest 3 M2.5 x 5-mm screw labeled M2.5x5 63PDH 6. Turn over the computer and remove the 13 M2.5 x 8-mm screws. file:///F|/Service%20Manuals/Dell/Latitude/d505/palmrest.htm (2 of 5) \ [2/28/2004 8:13:52 AM]
Page 58
![Page 58
Palm Rest: Dell Latitude D505 Series Service Manual
1 M2.5 x 8-mm screws (13) 3R690
7. Disconnect the touch pad connector from the system board.
file:///F|/Service%20Manuals/Dell/Latitude/d505/palmrest.htm (3 of 5) \
[2/28/2004 8:13:52 AM]](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-57.png "Page 58
Palm Rest: Dell Latitude D505 Series Service Manual
1 M2.5 x 8-mm screws (13) 3R690
7. Disconnect the touch pad connector from the system board.
file:///F|/Service%20Manuals/Dell/Latitude/d505/palmrest.htm (3 of 5) \
[2/28/2004 8:13:52 AM]")
Palm Rest: Dell Latitude D505 Series Service Manual 1 M2.5 x 8-mm screws (13) 3R690 7. Disconnect the touch pad connector from the system board. file:///F|/Service%20Manuals/Dell/Latitude/d505/palmrest.htm (3 of 5) \ [2/28/2004 8:13:52 AM]
Page 59
![Page 59
Palm Rest: Dell Latitude D505 Series Service Manual
1 system board connector
2 touch pad connector
3 computer base
NOTICE: Carefully separate the palm rest from the computer base to avoid
damage to the palm rest.
8. Starting at the back center of the palm rest, use your fingers to separa\
te the palm rest from the computer base by gently lifting up the palm rest whil\
e
pressing down on the back of the computer base.
NOTE: When you reinstall the palm rest, attach the right side of the palm rest\...](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-58.png "Page 59
Palm Rest: Dell Latitude D505 Series Service Manual
1 system board connector
2 touch pad connector
3 computer base
NOTICE: Carefully separate the palm rest from the computer base to avoid
damage to the palm rest.
8. Starting at the back center of the palm rest, use your fingers to separa\
te the palm rest from the computer base by gently lifting up the palm rest whil\
e
pressing down on the back of the computer base.
NOTE: When you reinstall the palm rest, attach the right side of the palm rest\...")
Palm Rest: Dell Latitude D505 Series Service Manual 1 system board connector 2 touch pad connector 3 computer base NOTICE: Carefully separate the palm rest from the computer base to avoid damage to the palm rest. 8. Starting at the back center of the palm rest, use your fingers to separa\ te the palm rest from the computer base by gently lifting up the palm rest whil\ e pressing down on the back of the computer base. NOTE: When you reinstall the palm rest, attach the right side of the palm rest\...
Page 60
![Page 60
Palm Rest: Dell Latitude D505 Series Service Manual
Back to Contents Page
file:///F|/Service%20Manuals/Dell/Latitude/d505/palmrest.htm (5 of 5) \
[2/28/2004 8:13:52 AM]](http://img.usermanuals.tech/thumb/19/48094/w300_dell-latitude-d505-series-service-manual-59.png "Page 60
Palm Rest: Dell Latitude D505 Series Service Manual
Back to Contents Page
file:///F|/Service%20Manuals/Dell/Latitude/d505/palmrest.htm (5 of 5) \
[2/28/2004 8:13:52 AM]")
Palm Rest: Dell Latitude D505 Series Service Manual Back to Contents Page file:///F|/Service%20Manuals/Dell/Latitude/d505/palmrest.htm (5 of 5) \ [2/28/2004 8:13:52 AM]
