Dell E1910h Users Guide

Back to Contents Page
Setting Up Your Monitor
E1910H  Flat Panel Monitor

1. Right - click on the desktop and click  Properties .
2. Select the  Settings  tab.
3. Select  Advanced .
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example,  http://www.ATI.com  OR  http://www.NVIDIA.com  ).
6. After installing the drivers for your Graphics...

Back to Contents Page

Operating the Monitor
E1910H  Flat Panel Monitor Users Guide
   Using the Front Panel Controls
   Using the On - Screen Display (OSD) Menu
   Setting the Maximum Resolution
   Using the Dell Soundbar (Optional)
   Using the Tilt

Power On the Monitor
Press the   button to turn on the monitor


Using the Front Panel Controls
Use the keys on the front of the monitor to adjust the image settings.

Front panel Key Description
A...

Front panel Key
Use the keys  on the front of the monitor to adjust the image settings.


Using the On - Screen Display (OSD) Menu

Accessing the Menu System  Exit Use the Exit key to exit on - screen display(OSD) from menu and sub - menus.
Front panel Key Description
A
Up  Use the Up key to adjust (increase ranges) items in the OSD menu.
B
Down  Use the Down key to adjust (decrease ranges) items in the OSD menu.
C
OK
Use the OK key to confirm your selection.
D...

The table below provides a list of all the OSD menu options and their functions.
2.
Press the   and   buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted.
3.
To select the highlighted item on the menu press the   button again.
4.
Press the   and   buttons to select the desired parameter.
5.
Press the   button to enter the slide bar and then use the   or   buttons, according to the indicators on the menu, to make your...




    Auto Adjustment allows the monitor to self - adjust to the incoming video signal. After using Auto Adjustment, you can further tune your monitor by using the
Pixel Clock (Coarse) and Phase (Fine) controls under Image Settings.

    NOTE:   Auto Adjust does not occur if you press the button while there are no active video input signals or attached cables . .
  COLOR SETTINGS   Use the  Color Setting  menu to adjust the monitor's color settings.



Back
Press  to go back to...



l Standard : Loads the monitors default color settings. This is the default preset mode.
l Multimedia : Loads color settings ideal for multimedia applications.
l Game : Loads color settings ideal for most gaming applications.
l Warm : Increase the color temperature. The screen appears warmer with a red/yellow tint.
l Cool : Decreases the color temperature. The screen appears cooler with a blue tint.
l Custom (RGB) : Allows you to manually adjust the color settings. press the    and...




Back
Press  to go back to the main menu .

Horizontal Position
Use the    or   buttons to adjust image left and right. Minimum is 0 ( - ). Maximum is 100 (+) .

Vertical Position
Use the    or   buttons to adjust image up and down. Minimum is 0 ( - ). Maximum is 100 (+)

Sharpness
This feature can make the image look sharper or softer. Use    or   to adjust the sharpness from 0 to 100

Pixel Clock
The Phase and Pixel Clock adjustments allow you to adjust your...

Menu Transparency   Allows you to adjust the OSD background from opaque to transparent.
Menu Timer   Allows you to set the time for which the OSD remains active after you press a key on the monitor.
Use the   and   keys to adjust the slider in 1 second increments, from 5 to 60 seconds.

Menu Lock
Controls user access to adjustments. When  Lock  is selected, no user adjustments are allowed. All keys are locked except
NOTE:   When the OSD is locked, pressing the menu key takes you directly to...

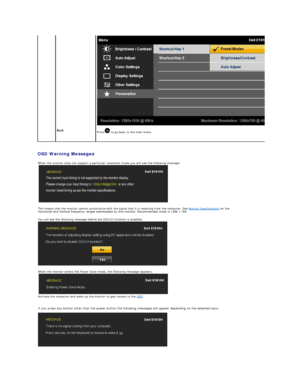

OSD Warning Messages


Back
Press  to go back to the main menu.

When the monitor does not support a particular resolution mode you will see the following message:


This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See  Monitor Specifications  for the
Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is  1366 x 768.

You will see the following message before the DDC/CI function is disabled....




See  Solving Problems  for more information.
Setting the Maximum Resolution
To set the Maximum resolution for the monitor:
1. Right - click on the desktop and select  Properties .
2. Select the  Settings  tab.
3. Set the screen resolution to 1366 x 768.
4. Click  OK .
If you do not see 1366 x 768 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following
procedures:
l If you have a Dell desktop or portable...
