Cisco Acs 5x User Guide

B-21
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
ACS-Supported Features for PACs, page B-24
Master Key Generation and PAC TTLs, page B-26
EAP-FAST for Allow TLS Renegotiation, page B-26
About Master-Keys
EAP-FAST master-keys are strong secrets that ACS automatically generates and of which only ACS is
aware. Master-keys are never sent to an end-user client. EAP-FAST requires master-keys for two
purposes:
PAC generation—ACS...

B-22
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
Provisioning Modes
ACS supports out-of-band and in-band provisioning modes. The in-band provisioning mode operates
inside a TLS tunnel raised by Anonymous DH or Authenticated DH or RSA algorithm for key
agreement.
To minimize the risk of exposing the user’s credentials, a clear text password should not be used outside
of the protected tunnel. Therefore, EAP-MSCHAPv2 or EAP-GTC...

B-23
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
The various means by which an end-user client can receive PACs are:
PAC provisioning—Required when an end-user client has no PAC. For more information about how
master-key and PAC states determine whether PAC provisioning is required, see Master Key
Generation and PAC TTLs, page B-26.
The two supported means of PAC provisioning are:
–Automatic In-Band PAC Provisioning—Sends a PAC...

B-24
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
To control whether ACS performs Automatic In-Band PAC Provisioning, use the options on the Global
System Options pages in the System Administration drawer. For more information, see EAP-FAST,
page B-18.
Manual PAC Provisioning
Manual PAC provisioning requires an ACS administrator to generate PAC files, which must then be
distributed to the applicable network users. Users must...

B-25
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
The proactive PAC update time is configured for the ACS server in the Allowed Protocols Page. This
mechanism allows the client to be always updated with a valid PAC.
NoteThere is no proactive PAC update for Machine and Authorization PACs.
Accept Peer on Authenticated Provisioning
The peer may be authenticated during the provisioning phase.
PAC-Less Authentication
With PAC-less...

B-26
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
Master Key Generation and PAC TTLs
The values for master key generation and PAC TTLs determine their states, as described in About
Master-Keys, page B-21 and Types of PACs, page B-22. Master key and PAC states determine whether
someone requesting network access with EAP-FAST requires PAC provisioning or PAC refreshing.
Related Topics
About PACs, page B-21
Provisioning Modes, page...

B-27
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
To enable ACS to perform EAP-FAST authentication:
Step 1Configure an identity store that supports EAP-FAST authentication.
To determine which identity stores support EAP-FAST authentication, see Authentication Protocol and
Identity Store Compatibility, page B-35. For information about configuring identity stores, see
Chapter 8, “Managing Users and Identity Stores”
Step 2Determine...

B-28
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
This scheme improves the security by reducing the amount of cryptographic sensitive material that is
transmitted.
This section contains the following topics:
Key Distribution Algorithm, page B-28
EAP-FAST PAC-Opaque Packing and Unpacking, page B-28
Revocation Method, page B-28
PAC Migration from ACS 4.x, page B-29
Key Distribution Algorithm
The common seed-key is a relatively...

B-29
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP Authentication with RADIUS Key Wrap
PAC Migration from ACS 4.x
Although the configuration can be migrated from 4.x, the PACs themselves, as being stored only in
supplicants, may still be issued from versions as far back as ACS 3.x. ACS 5.3 accepts PACs of all types
according to migrated master-keys from versions 4.x and onwards, and re-issues a new 5.0 PAC, similar
to the proactive...

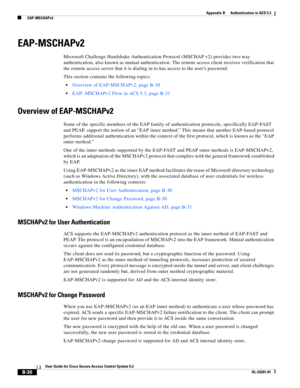

B-30
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-MSCHAPv2
EAP-MSCHAPv2
Microsoft Challenge Handshake Authentication Protocol (MSCHAP v2) provides two-way
authentication, also known as mutual authentication. The remote access client receives verification that
the remote access server that it is dialing in to has access to the users password.
This section contains the following topics:
Overview of EAP-MSCHAPv2, page B-30
EAP- MSCHAPv2...
