Cisco Acs 5x User Guide

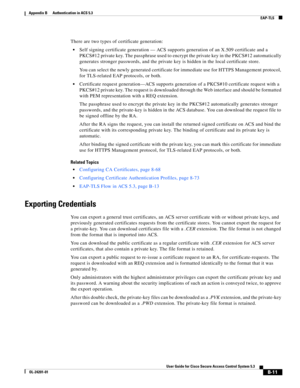

B-11
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-TLS
There are two types of certificate generation:
Self signing certificate generation — ACS supports generation of an X.509 certificate and a
PKCS#12 private key. The passphrase used to encrypt the private key in the PKCS#12 automatically
generates stronger passwords, and the private key is hidden in the local certificate store.
You can select the newly generated certificate for...

B-12
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-TLS
Credentials Distribution
All certificates are kept in the ACS database which is distributed and shared between all ACS nodes. The
ACS server certificates are associated and designated for a specific node, which uses that specific
certificate.
Public certificates are distributed along with the private keys and the protected private key passwords by
using the ACS distributed...

B-13
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-TLS
Private Keys and Passwords Backup
The entire ACS database is distributed and backed-up on the primary ACS along with all the certificates,
private-keys and the encrypted private-key-passwords. The private-key-password-key of the primary
server is also backed up with the primarys backup.
Other secondary ACS private-key-password-keys are not backed-up. Backups are encrypted and also...

B-14
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  PEAPv0/1
NoteAll communication between the host and ACS goes through the network device.
EAP-TLS authentication fails if the:
Server fails to verify the client’s certificate, and rejects EAP-TLS authentication.
Client fails to verify the server’s certificate, and rejects EAP-TLS authentication.
Certificate validation fails if the:
–Certificate has expired.
–Server or client cannot find the...

B-15
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  PEAPv0/1
Overview of PEAP
PEAP is a client-server security architecture that you use to encrypt EAP transactions, thereby protecting
the contents of EAP authentications. PEAP uses server-side public key certificates to authenticate the
server.
It then creates an encrypted SSL/TLS tunnel between the client and the authentication server. The
ensuing exchange of authentication information to...

B-16
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  PEAPv0/1
Server Authenticated and Unauthenticated Tunnel Establishment Modes
Tunnel establishment helps prevent an attacker from injecting packets between the client and the
network access server (NAS) or, to allow negotiation of a less secure EAP method. The encrypted TLS
channel also helps prevent denial of service attacks against the ACS.
A client EAP message is always carried in the...

B-17
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  PEAPv0/1
PEAP Flow in ACS 5.3
The PEAP protocol allows authentication between ACS and the peer by using the PKI-based secure
tunnel establishment and the EAP-MSCHAPv2 protocol as the inner method inside the tunnel. The local
certificate can be validated by the peer (server-authenticated mode) or not validated
(server-unauthenticated mode).
This section contains:
Creating the TLS Tunnel,...

B-18
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
Authenticating with MSCHAPv2
After the TLS tunnel is created, follow these steps to authenticate the wireless client credentials with
MSCHAPv2:
At the end of this mutual authentication exchange, the wireless client has provided proof of knowledge
of the correct password (the response to the ACS challenge string), and ACS has provided proof of
knowledge of the correct password...

B-19
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
EAP-FAST is a client-server security architecture that encrypts EAP transactions with a TLS tunnel.
While similar to PEAP in this respect, it differs significantly in that EAP-FAST tunnel establishment is
based on strong secrets that are unique to users.
These secrets are called Protected Access Credentials (PACs), which ACS generates by using a master
key known only to ACS....

B-20
User Guide for Cisco Secure Access Control System 5.3
OL-24201-01
Appendix B      Authentication in ACS 5.3
  EAP-FAST
EAP-FAST can protect the username in all EAP-FAST transactions. ACS does not perform user
authentication based on a username that is presented in phase one, however, whether the username is
protected during phase one depends on the end-user client.
If the end-user client does not send the real username in phase one, the username is protected. After
phase one of EAP-FAST, all...
