Christie Digital Systems Lwu420 Operating Guide

49LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
MY BUTTONThis item is to assign one of the following function to
MY BUTTON 1 and 2 on the remote control (6).Choose 1 or 2 on the MY BUTTON menu using the ◄/► button first. Then
using the ▲/▼ buttons sets one of the following functions to the chosen button.
• RGB1: Sets port to RGB1.
• RGB2: Sets port to RGB2.
• HDMI: Sets port to HDMI.
• COMPONENT: Sets port to COMPONENT (Y, CB/PB,...

50LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
SERVICE
(continued)AUTO ADJUST
Using the ▲/▼ buttons to select one of the mode.
When the DISABLE is selected, the automatic
adjustment feature is disabled.
FINE
 FAST
 DISABLE

FINE: Finer tuning including H.SIZE adjustment.
FAST:  Faster tuning, setting H.SIZE to prearranged data for the input signal.
• Depending on conditions, such as input image, signal cable to
the...

51LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
SERVICE
(continued)KEY LOCK
Using the ▲/▼ buttons turns on/off the key lock feature. When
TURN ON is selected, the buttons on the projector except the
STANDBY/ON button are locked.
TURN ON
 TURN OFF
• Please use to avoid a mischief and touching accidentally. This
function does not have any effect on the remote control.
REMOTE RECEIV.
(1) Select a remote sensor using the ▲/▼...

52LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
SECURITYThis projector is equipped with security functions.
User registration is required before using the security functions.
Please contact your local dealer.
1. Using Security Features
1.1 Inputting the PASSWORD
1.1-1  Use the ▲/▼ buttons on the OPTION
Menu to select SECURITY and press the ►
button. The ENTER PASSWORD box will be
displayed. The factory default PASSWORD is
4304....

53LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
SECURITY
(continued)1.3 If you have forgotten your PASSWORD
1.3-1  Follow the procedure in 1.1-1 to display the
ENTER PASSWORD BOX.
1.3-2  While the ENTER PASSWORD BOX is
displayed, press and hold the
RESET button
on the remote control for about 3 seconds
or press and hold the
INPUT button for 3
seconds while pressing the ► button on the
projector.
The 10 digit Inquiring Code...

54LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
SECURITY
(continued)
2.2-4  Move the cursor to the right side of the
PASSWORD AGAIN BOX and press the
► button to display the PASSWORD for
about 20 seconds, please make note of the
PASSWORD during this time.
Pressing the
ENTER button on the remote control
or INPUT button on the projector will return to
MyScreen PASS WORD on/off menu.
When a PASSWORD is set for MyScreen:
• The...

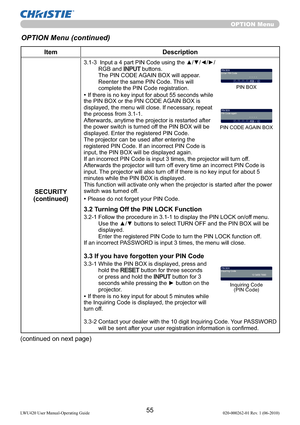

55LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
SECURITY
(continued)
3.1-3   Input a 4 part PIN Code using the ▲/▼/◄/►/
RGB and INPUT buttons.
The PIN CODE AGAIN BOX will appear.
Reenter the same PIN Code. This will
complete the PIN Code registration.
• If there is no key input for about 55 seconds while
the PIN BOX or the PIN CODE AGAIN BOX is
displayed, the menu will close. If necessary, repeat
the process from 3.1-1....

56LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
SECURITY
(continued)
4. Using the Transition Detector Function
While the Transition Detector function is ON, when power switch is started to
supply to the projector, it might react as below.
• Transition Detector alarm shown below might appear on screen, if the
projector has been moved or re-installed.
• Transition Detector alarm might appear on screen, if the MIRROR setting
has...

57LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
SECURITY
(continued)4.3 Setting the Transition Detector off
4.3-1  Follow the procedure in 4.1-1 to display the Transition Detector on/off
menu.
4.3-2  Select TURN OFF to display the ENTER PASSWORD BOX (large).
Enter the registered PASSWORD and the screen will return to the
Transition Detector on/off menu.
If an incorrect PASSWORD is input, the menu will close. If necessary, repeat...

58LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
SECURITY
(continued)5.2 Displaying the MY TEXT
(1)  Use the ▲/▼ buttons on the SECURITY menu
to select the MY TEXT DISPLAY menu and
press the ► button to display the MY TEXT
DISPLAY on/off menu.
(2)  Use the ▲/▼ buttons on the MY TEXT DISPLAY
on/off menu to select on or off.
TURN ON
 TURN OFF
When it is set TURN ON, the MY TEXT will be
displayed on the START UP screen and the...
