SETUP Menu
SETUP Menu (continued)
Item Description
KEYSTONE
Using the ▲/▼ buttons corrects the horizontal keystone distortion.
Shrink the right of the image
 Shrink the left of the image
• The adjustable range of this function will vary among inputs. For
some input, this function may not work well.
• When the zoom adjustment is set to the TELE (telephoto focus),
this function may be excessive. This function should be used when
the...

40LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
SETUP Menu
SETUP Menu (continued)
Item Description
WHISPERUsing the ▲/▼ buttons turns off/on the whisper mode.
NORMAL
 WHISPER
• When the WHISPER is selected, acoustic noise and screen
brightness are reduced.
MIRRORUsing the ▲/▼ buttons switches the mode for mirror status.
NORMAL
 H:INVERT
 V:INVERT
 H&V:INVERT

If the Transition Detector is TURN ON and MIRROR status is
changed, Transition Detector Alarm (
56) will be...

41LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
AUDIO Menu
AUDIO Menu
From the AUDIO Menu, items shown in the table below
can be performed.
Select an item using the ▲/▼ cursor buttons on the
projector or remote control, and press the ► cursor button
on the projector or remote control, or
ENTER button on
the remote control to execute the item. Then perform it
according to the following table.
Item Description
VOLUMEUsing the ▲/▼ buttons adjusts the volume.
High
 Low
TREBLEUsing...

42LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
SCREEN Menu
SCREEN Menu
From the SCREEN Menu, items shown in the table below
can be performed.
Select an item using the ▲/▼ cursor buttons on the
projector or remote control, and press the ► cursor button
on the projector or remote control, or
ENTER button on
the remote control to execute the item. Then perform it
according to the following table.
Item Description
LANGUAGE
Using the ▲/▼ buttons switches the OSD (On Screen Display)...

43LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
SCREEN Menu
SCREEN Menu (continued)
Item Description

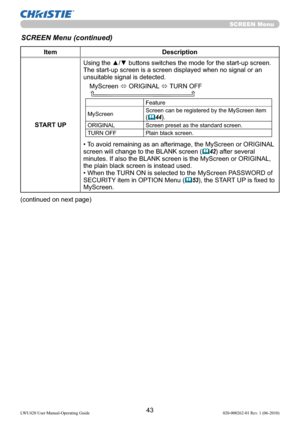

START UPUsing the ▲/▼ buttons switches the mode for the start-up screen.
The start-up screen is a screen displayed when no signal or an
unsuitable signal is detected.
MyScreen
 ORIGINAL
 TURN OFF

Feature
MyScreenScreen can be registered by the MyScreen item
(44).
ORIGINAL Screen preset as the standard screen.
TURN OFF Plain black screen.
• To avoid remaining as an...

44LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
SCREEN Menu
SCREEN Menu (continued)
Item Description
MyScreenThis item allows you to capture an image for use as a MyScreen
image which can be used as the BLANK screen and START UP
screen. Display the image you want to capture before executing the
following procedure.
1.  Selecting this item displays a dialog
titled “MyScreen”. It will ask you if
you start capturing an image from the
current screen.
Please wait for the target image...

45LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
SCREEN Menu
SCREEN Menu (continued)
Item Description
MESSAGEUsing the ▲/▼ buttons turns on/off the message function.
TURN ON
 TURN OFF
When the TURN ON is selected, the following message function works.
“AUTO IN PROGRESS” while automatically adjusting
“NO INPUT IS DETECTED”
“SYNC IS OUT OF RANGE”
“INVALID SCAN FREQ”
“Searching….” while searching for the input
“Detecting….” while an input signal is detected
The indication of the input...

46LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
SCREEN Menu
SCREEN Menu (continued)
Item Description
TEMPLATEUsing ▲/▼ buttons switches the mode for the
template screen. The selected template pattern
can be displayed when the
MY BUTTON allocated
to the TEMPLATE function is pressed (
49).
 DOT-LINE4
 DOT-LINE3
 DOT-LINE2
TEST PATTERN
 DOT-LINE1

47LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu
From the OPTION Menu, items shown in the table below
can be performed.
Select an item using the ▲/▼ cursor buttons on the
projector or remote control, and press the ► cursor button
on the projector or remote control, or
ENTER button on
the remote control to execute the item, except for the
items LAMP TIME and FILTER TIME. Then perform it
according to the following table.
Item Description
AUTO SEARCH
Using...

48LWU420 User Manual-Operating Guide 020-000262-01 Rev. 1 (06-2010)
OPTION Menu
OPTION Menu (continued)
Item Description
AUTO OFFUsing the ▲/▼ buttons adjusts the time to count down to
automatically turn the projector off.
Long (max. 99 minutes)
 Short (min. 0 minute = DISABLE)
When the time is set to 0, the projector is not turned off automatically.When the time is set to 1 to 99, and when the passed time with no-
signal or an unsuitable signal reaches at the set time, the projector
lamp will be...
